Test L: One Turn Signal/Hazard Lamp Is Inoperative
Test L: One Turn Signal/Hazard Lamp Is Inoperative

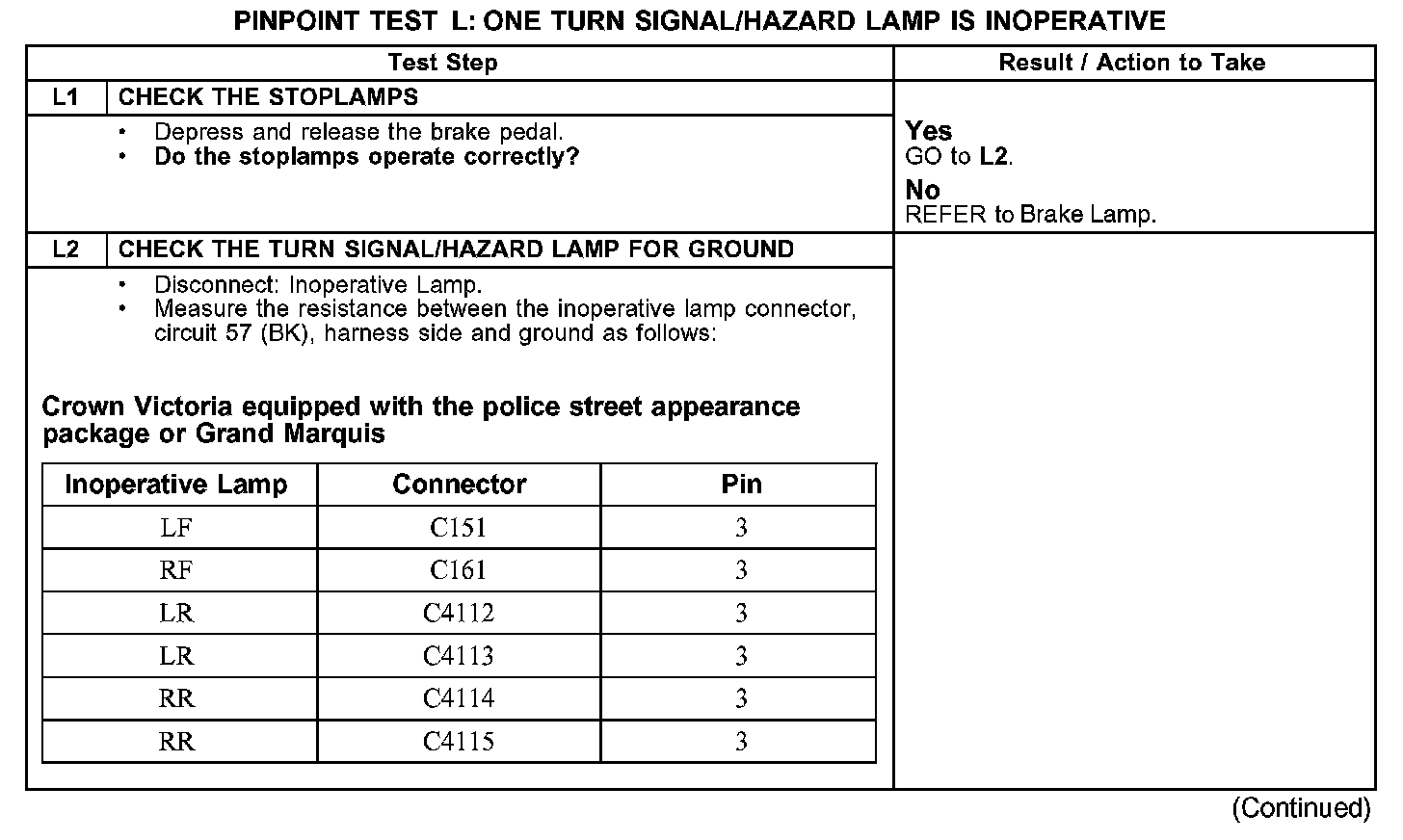

PINPOINT TEST L: ONE TURN SIGNAL/HAZARD LAMP IS INOPERATIVE
L1-L2:

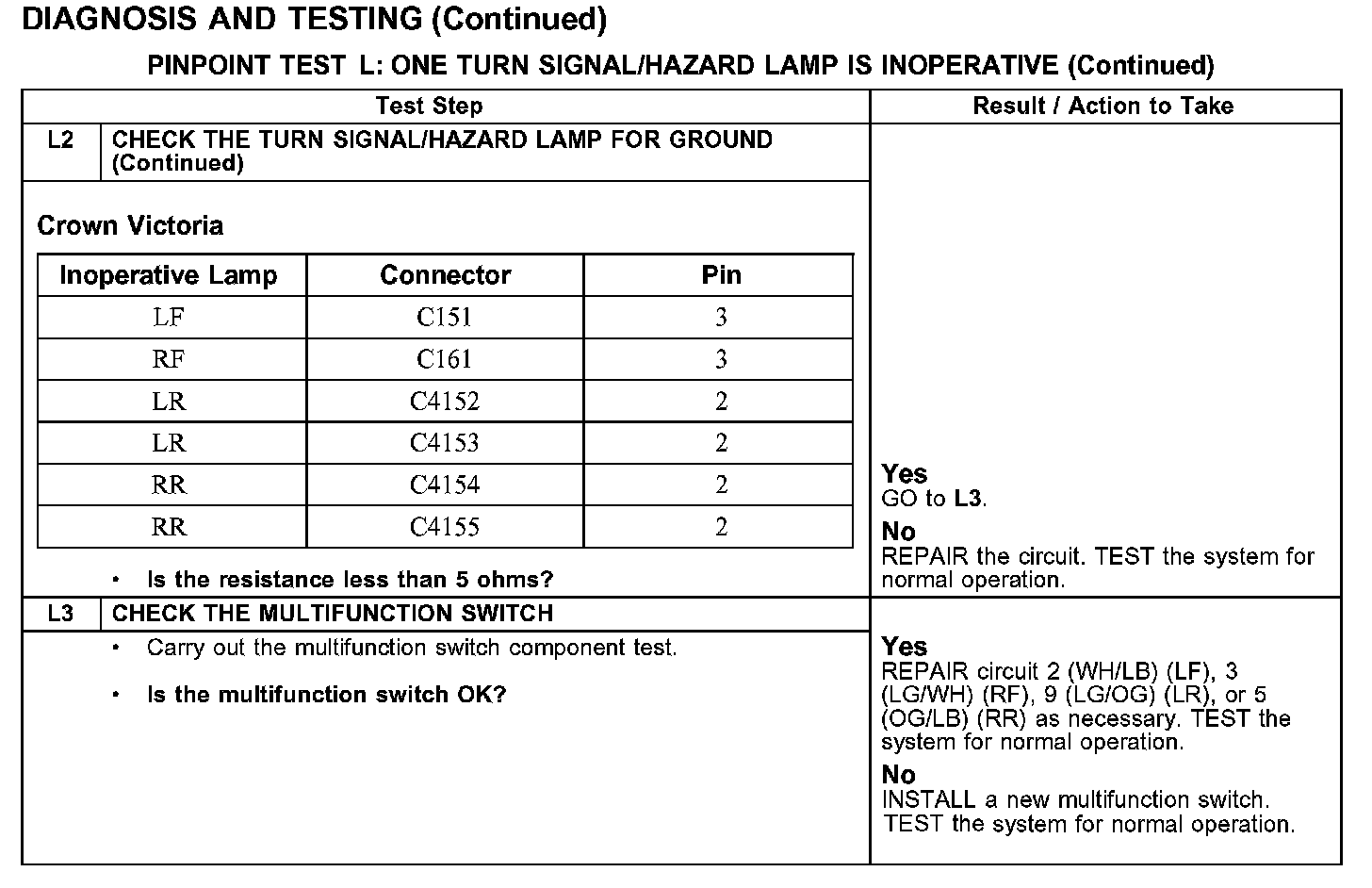

L2-L3:
