Test D: The Flash-To-Pass Feature Is Inoperative
Test D: The Flash-To-Pass Feature Is Inoperative

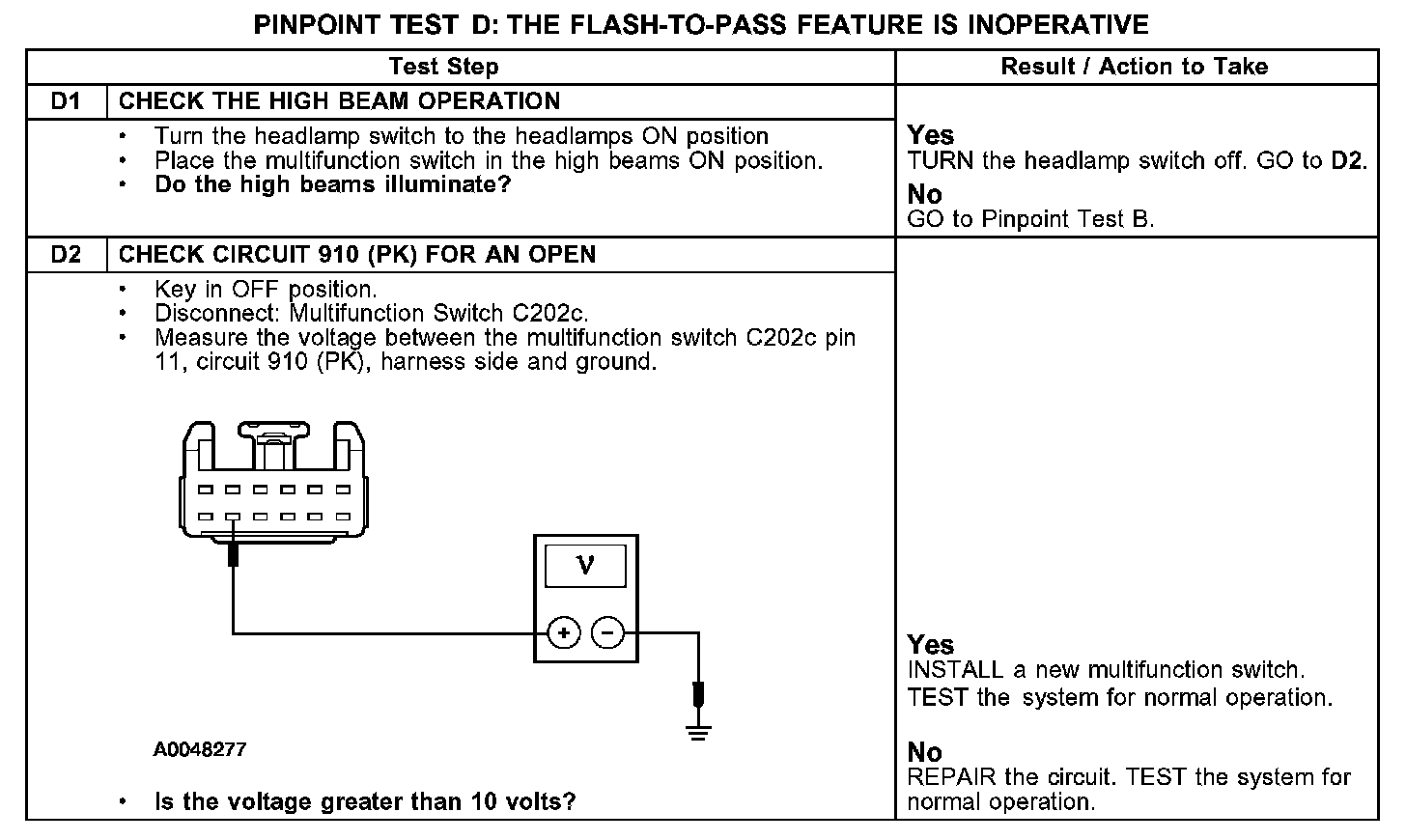

PINPOINT TEST D: THE FLASH-TO-PASS FEATURE IS INOPERATIVE
D1-D2:
