Test F: The Autolamps Are On Continuously

PINPOINT TEST F: THE AUTOLAMPS ARE ON CONTINUOUSLY

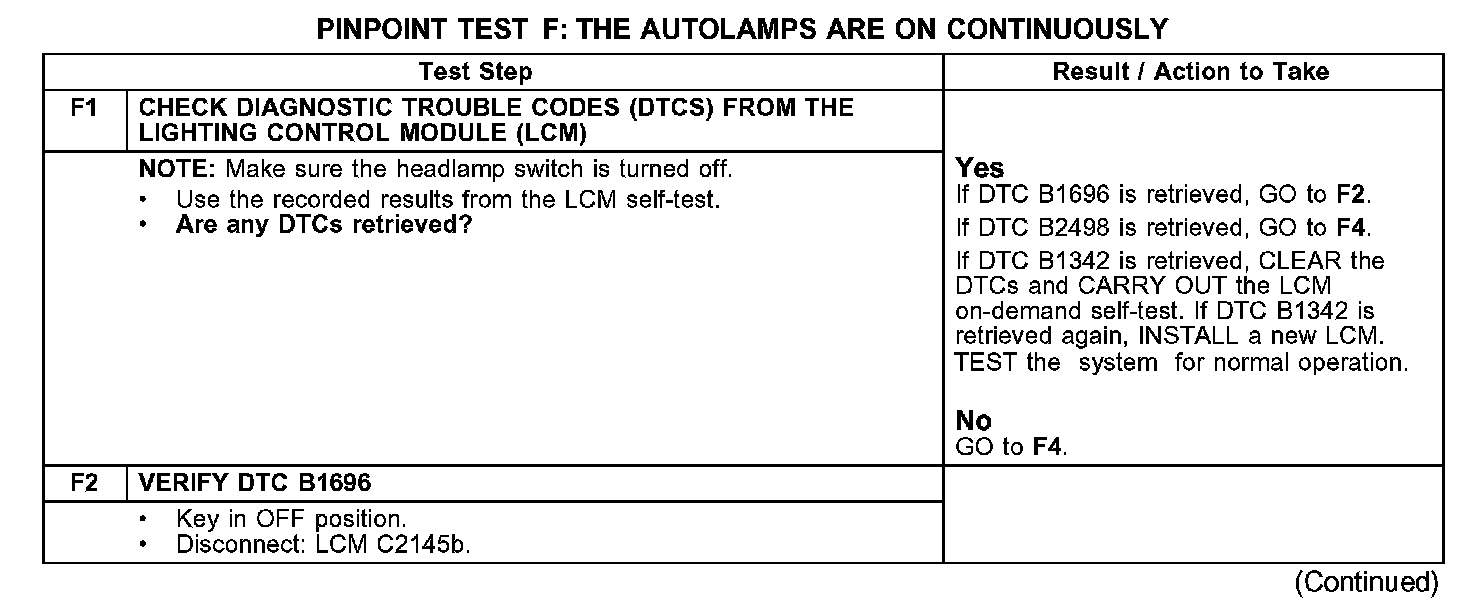

F1-F2:

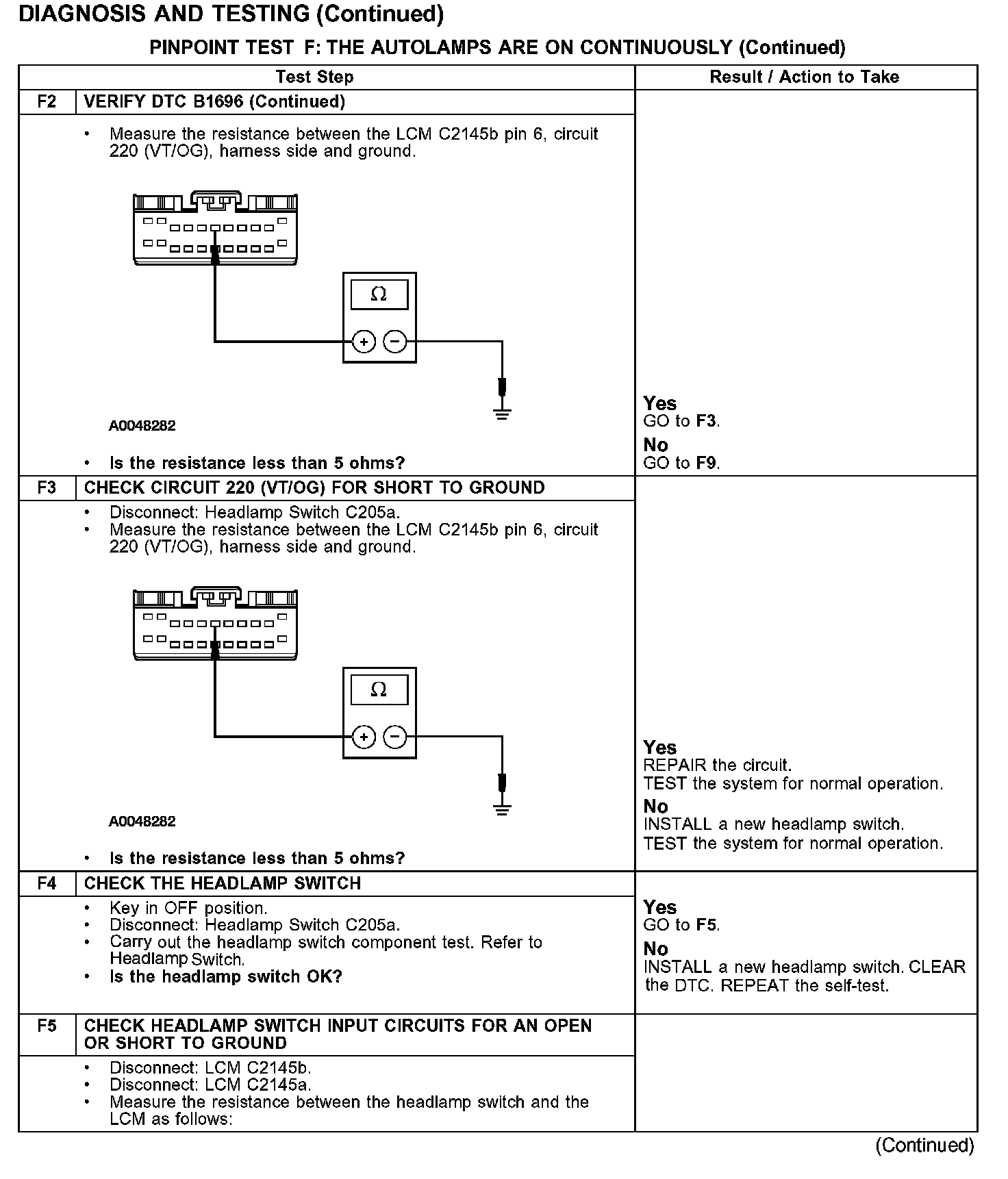

F2-F5:

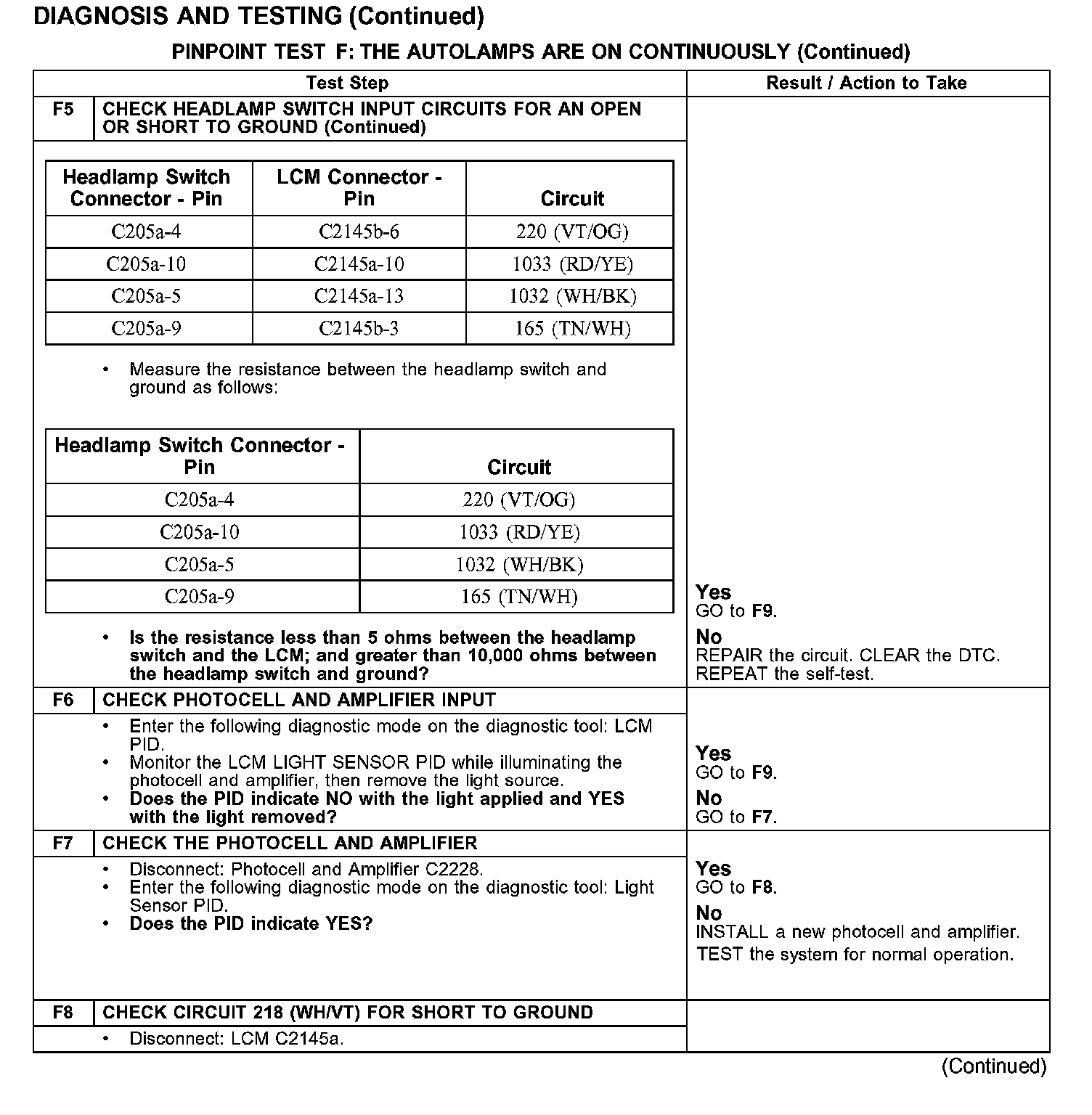

F5-F8:

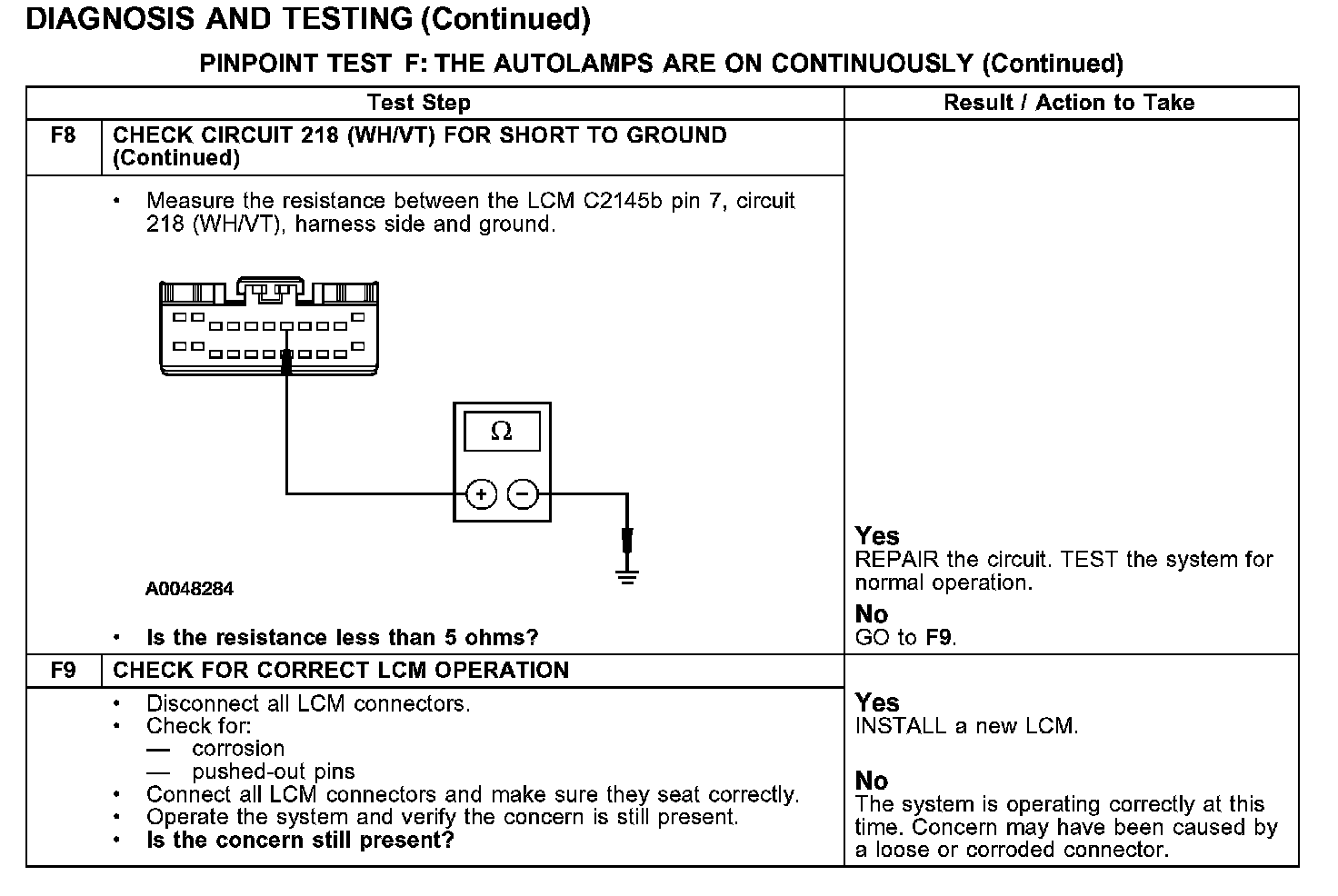

F8-F9:
