Home >> Mercury >> 2005 >> Grand Marquis V8-4.6L SOHC VIN W >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Testing and Inspection >> Pinpoint Tests >> Test I: DTC B1688 or DTC B1685: Dome Lamp Input Failure

Test I: DTC B1688 or DTC B1685: Dome Lamp Input Failure

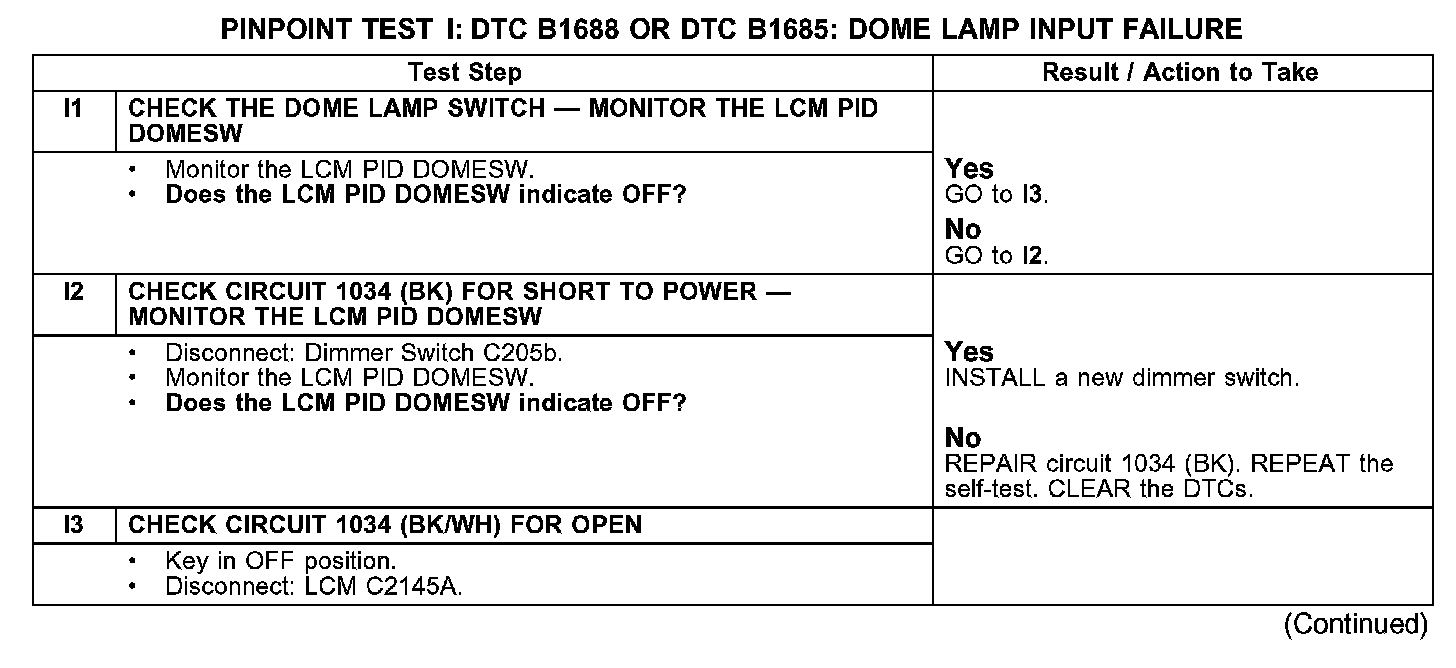

PINPOINT TEST I: DTC B1688 OR DTC B1685: DOME LAMP INPUT FAILURE


I1-I3:

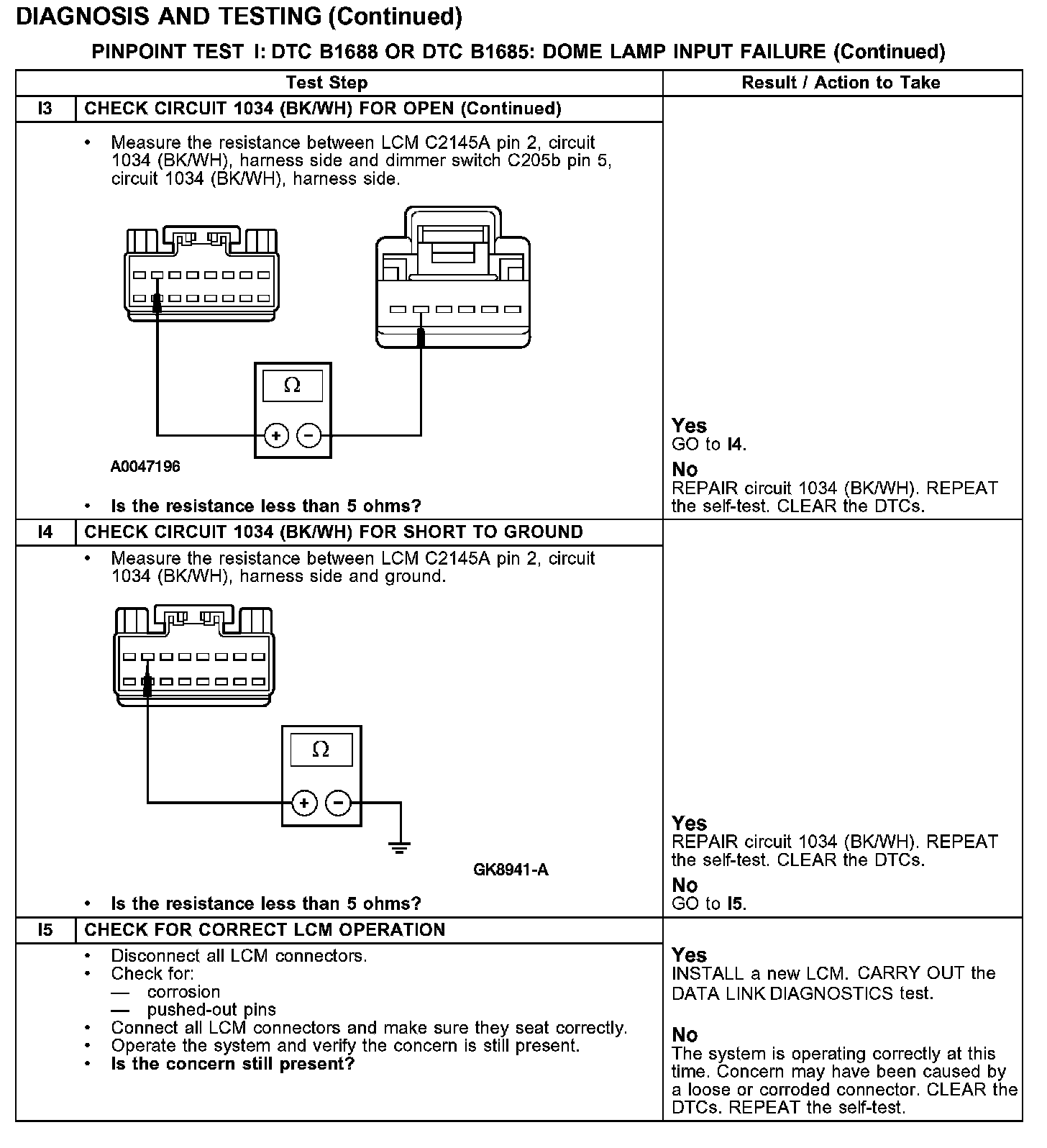

I3-I5:
