Test H: DTC B1566: Door Ajar - Short to Ground
Test H: DTC B1566: Door Ajar - Short to Ground

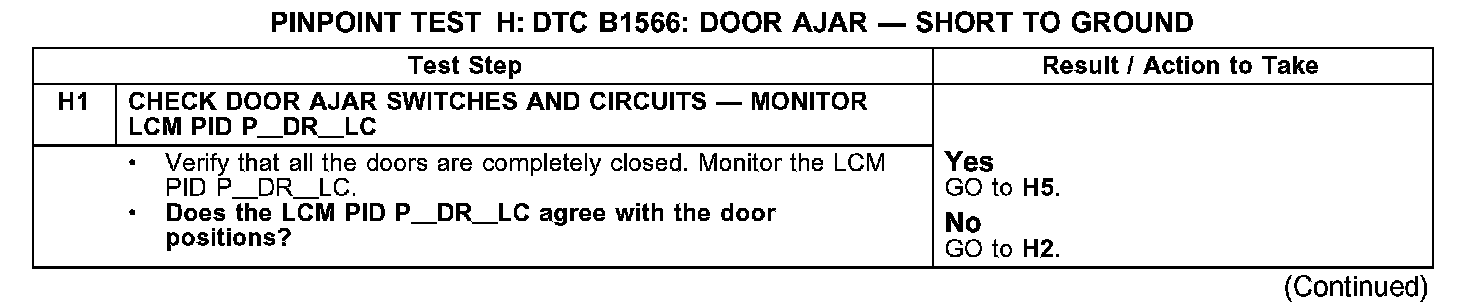

PINPOINT TEST H: DTC B1566: DOOR AJAR - SHORT TO GROUND
H1:

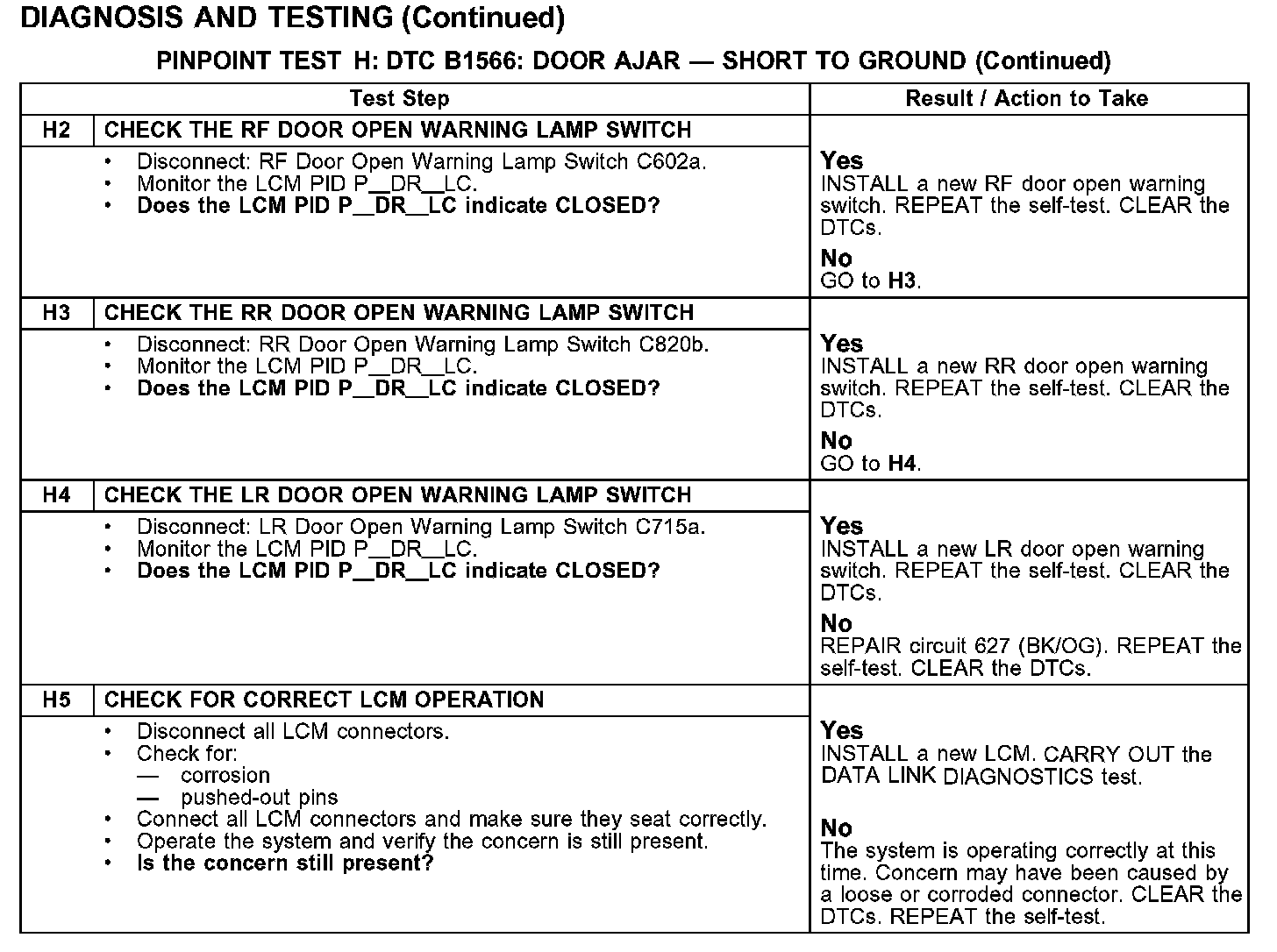

H2-H5:
