Test E: The Individual Demand Lighting Lamp Is Inoperative
Test E: The Individual Demand Lighting Lamp Is Inoperative

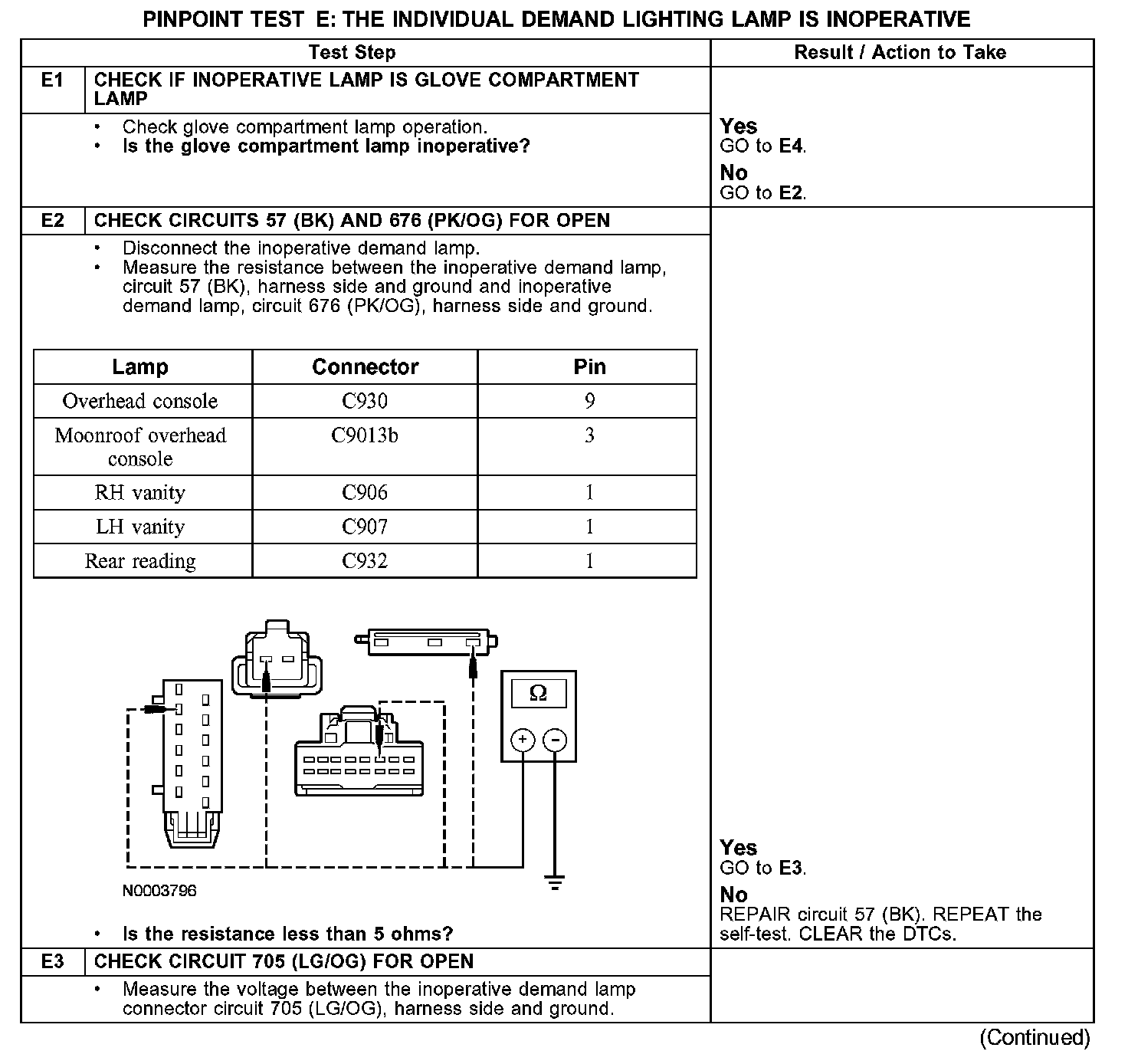

PINPOINT TEST E: THE INDIVIDUAL DEMAND LIGHTING LAMP IS INOPERATIVE
E1-E3:

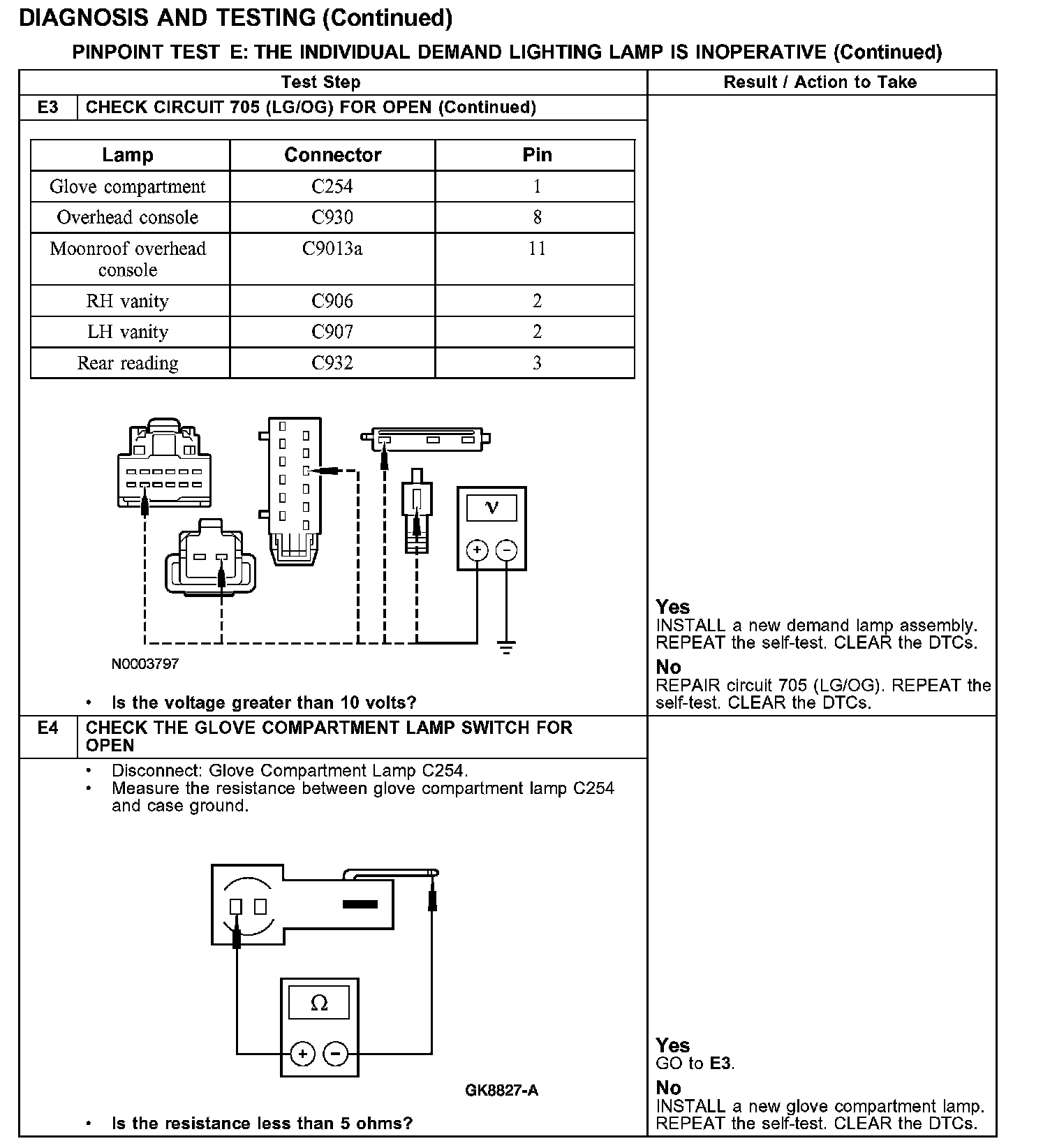

E3-E4:
