Home >> Mercury >> 2005 >> Grand Marquis V8-4.6L SOHC VIN W >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Testing and Inspection >> Pinpoint Tests >> Test D: The Demand Lighting Is Inoperative

Test D: The Demand Lighting Is Inoperative

PINPOINT TEST D: THE DEMAND LIGHTING IS INOPERATIVE

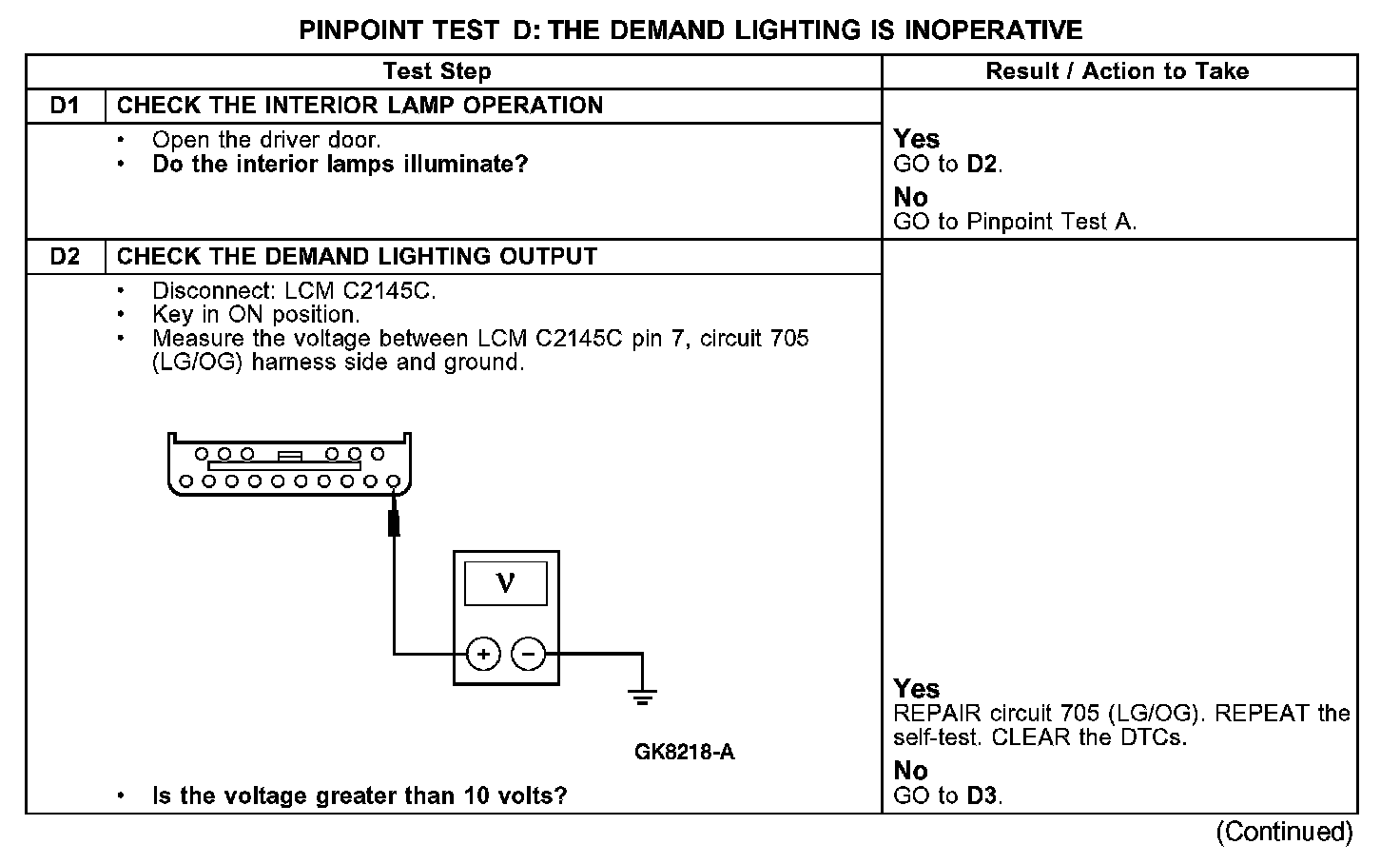

D1-D2:

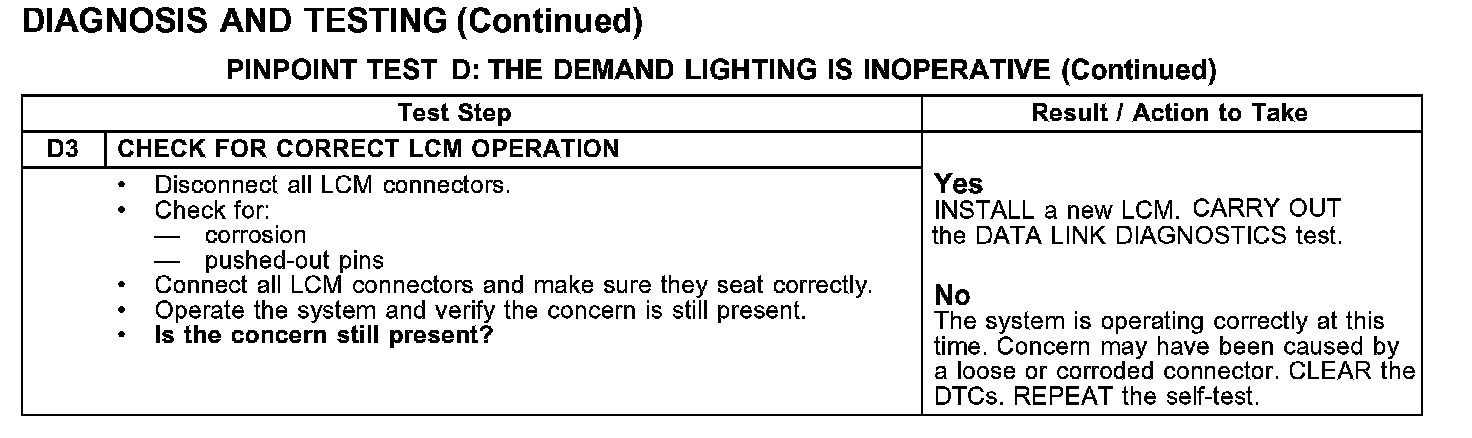

D3:
