Test B: An Individual Interior Lamp Is Inoperative
Test B: An Individual Interior Lamp Is Inoperative

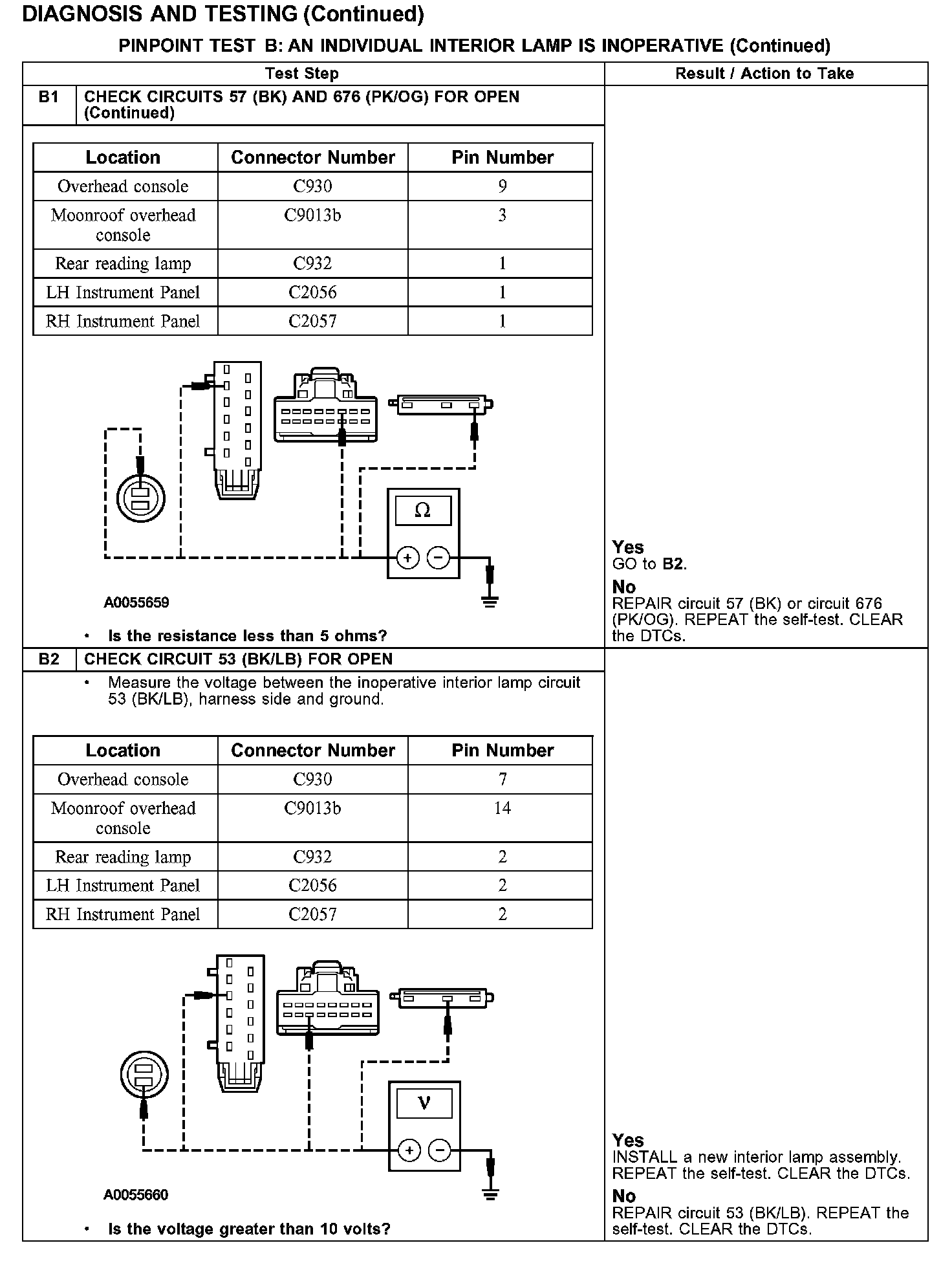

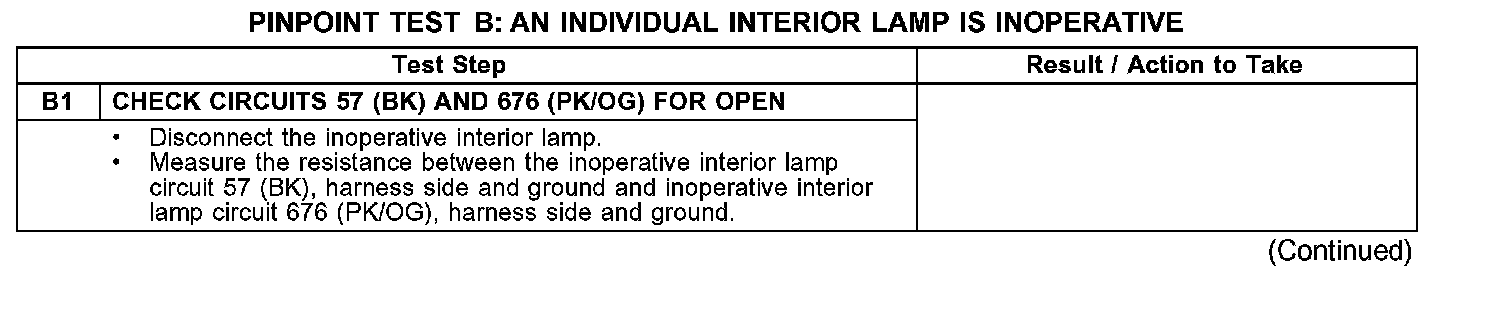

PINPOINT TEST B: AN INDIVIDUAL INTERIOR LAMP IS INOPERATIVE
B1:
B1-B2:
