Test B: The Key-In-Ignition Chime Does Not Operate Correctly
Test B: The Key-In-Ignition Chime Does Not Operate Correctly
PINPOINT TEST B: THE KEY-IN-IGNITION CHIME DOES NOT OPERATE CORRECTLY

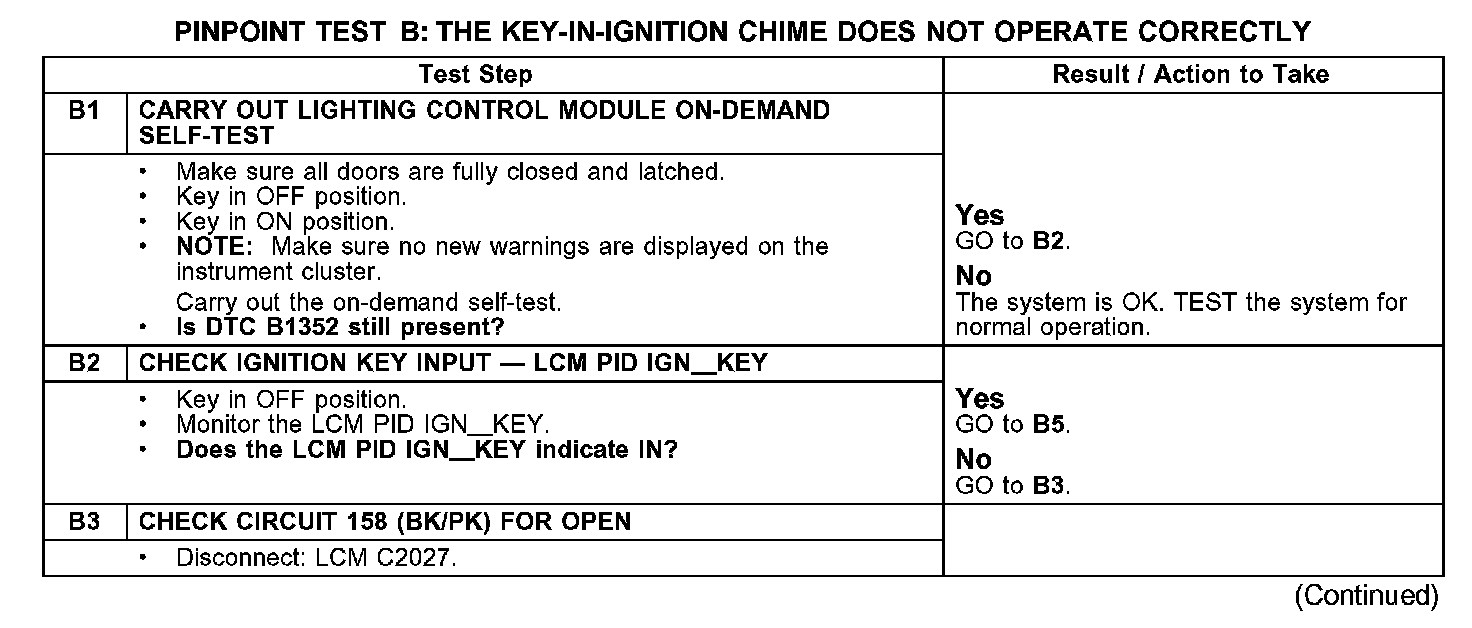

B1-B3:

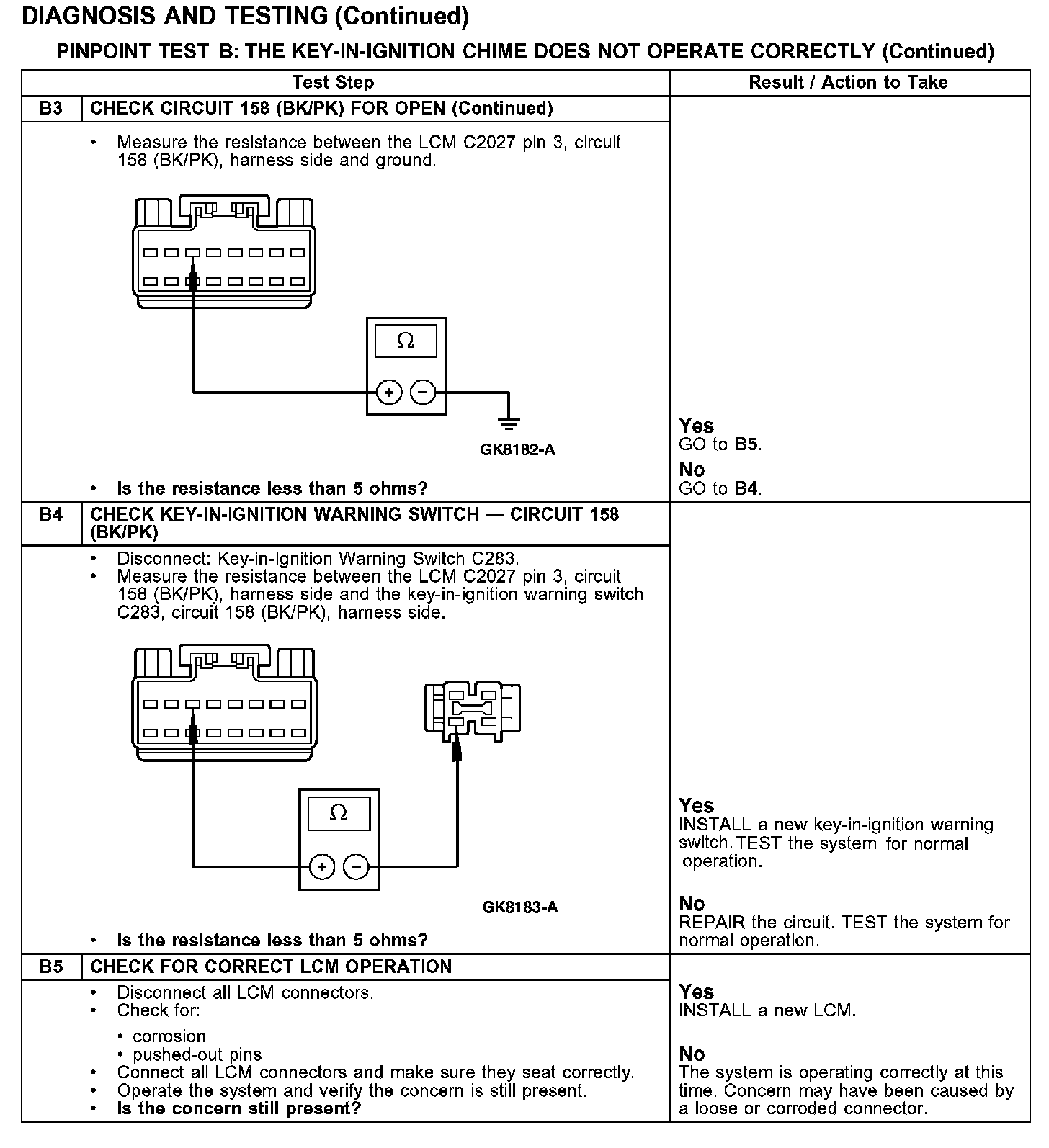

B3-B5:
