Test A: The Headlamp on Reminder Chime Does Not Operate Correctly
Test A: The Headlamp on Reminder Chime Does Not Operate Correctly
PINPOINT TEST A: THE HEADLAMP ON REMINDER CHIME DOES NOT OPERATE CORRECTLY

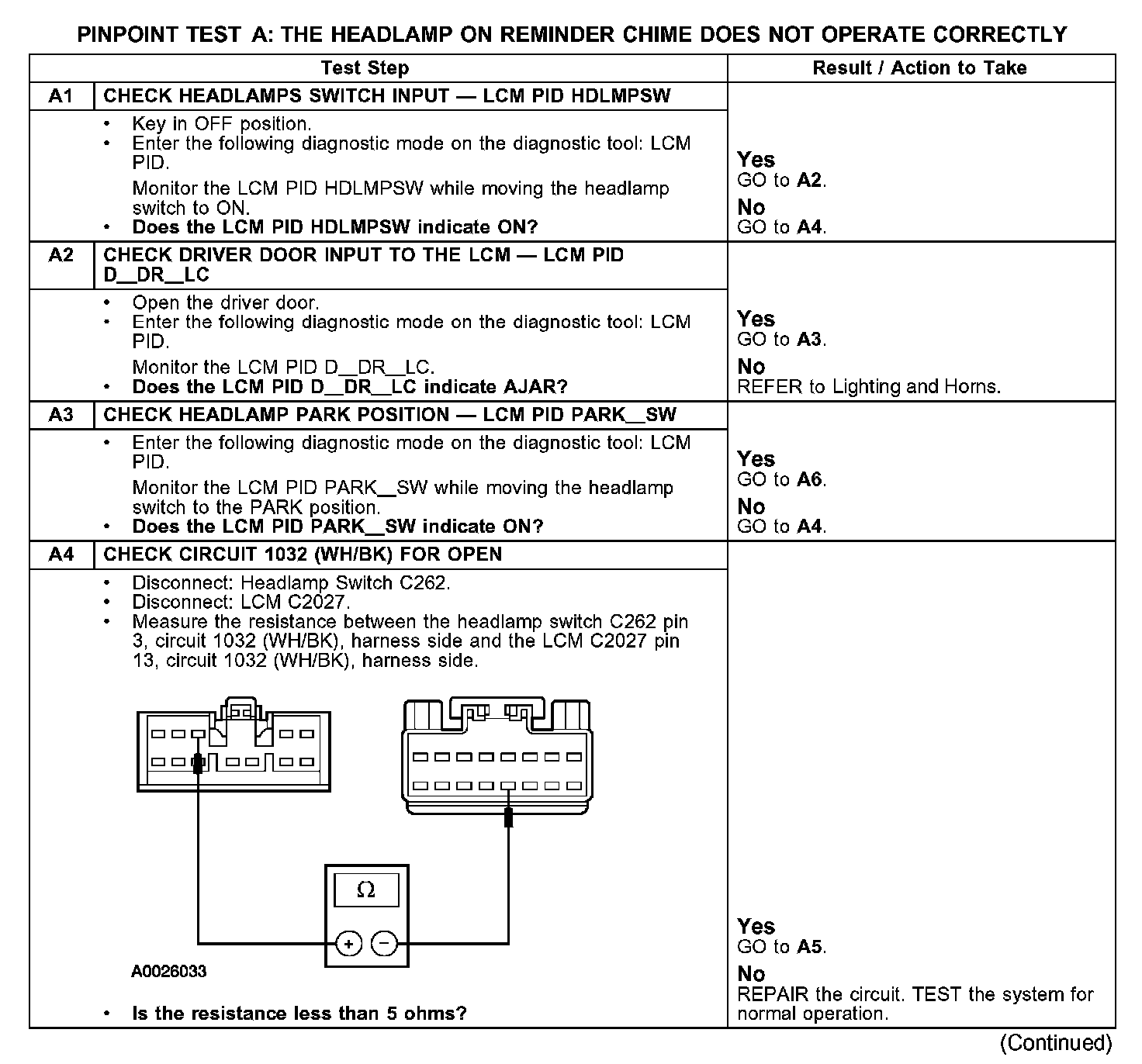

A1-A4:

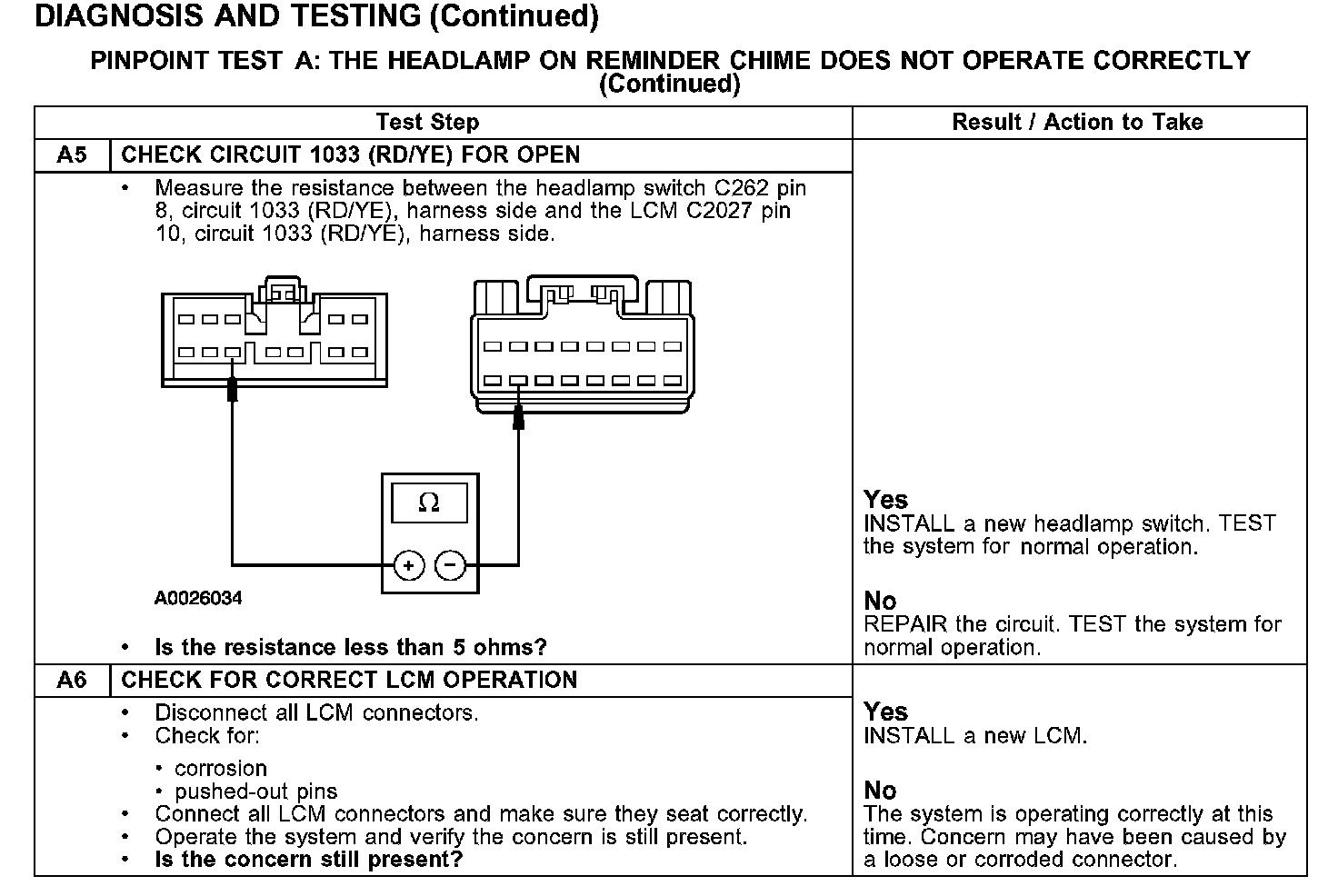

A5-A6:
