Test F: A Single Illumination Source Is Inoperative

PINPOINT TEST F: A SINGLE ILLUMINATION SOURCE IS INOPERATIVE

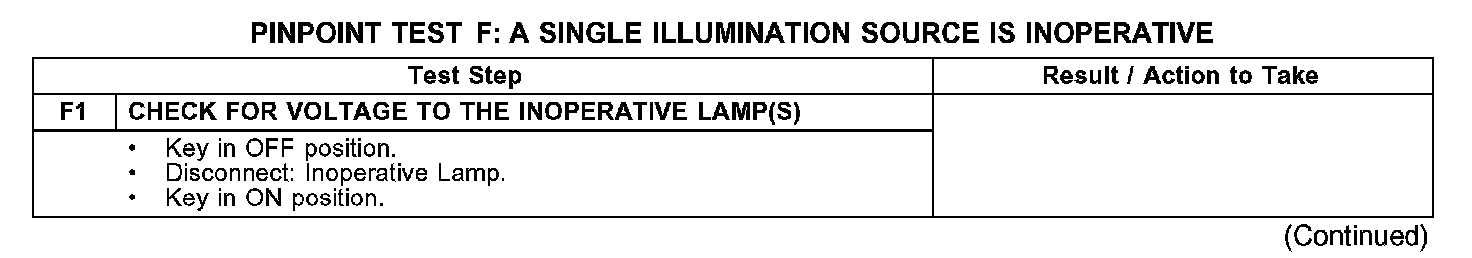

F1:

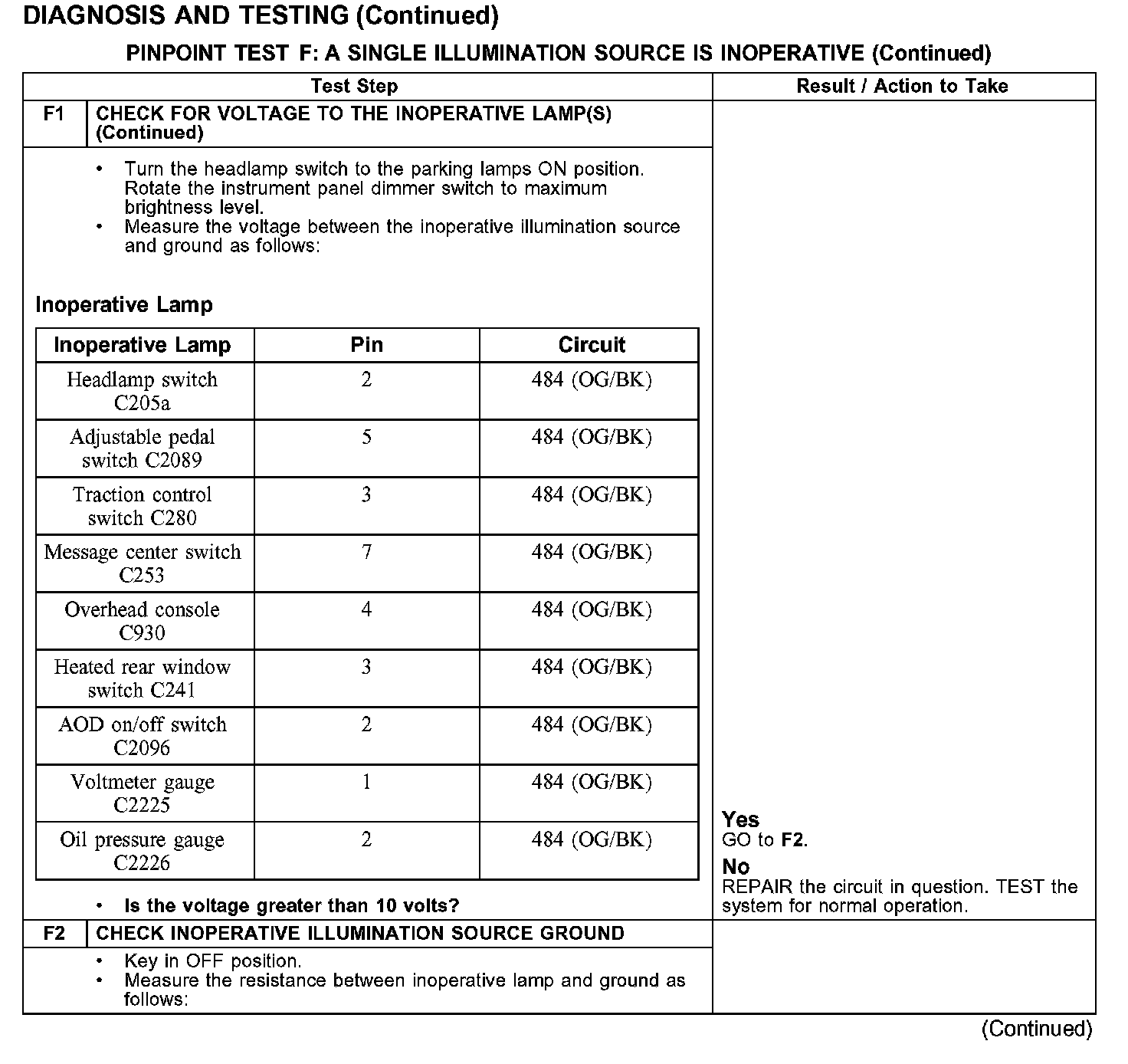

F1-F2:

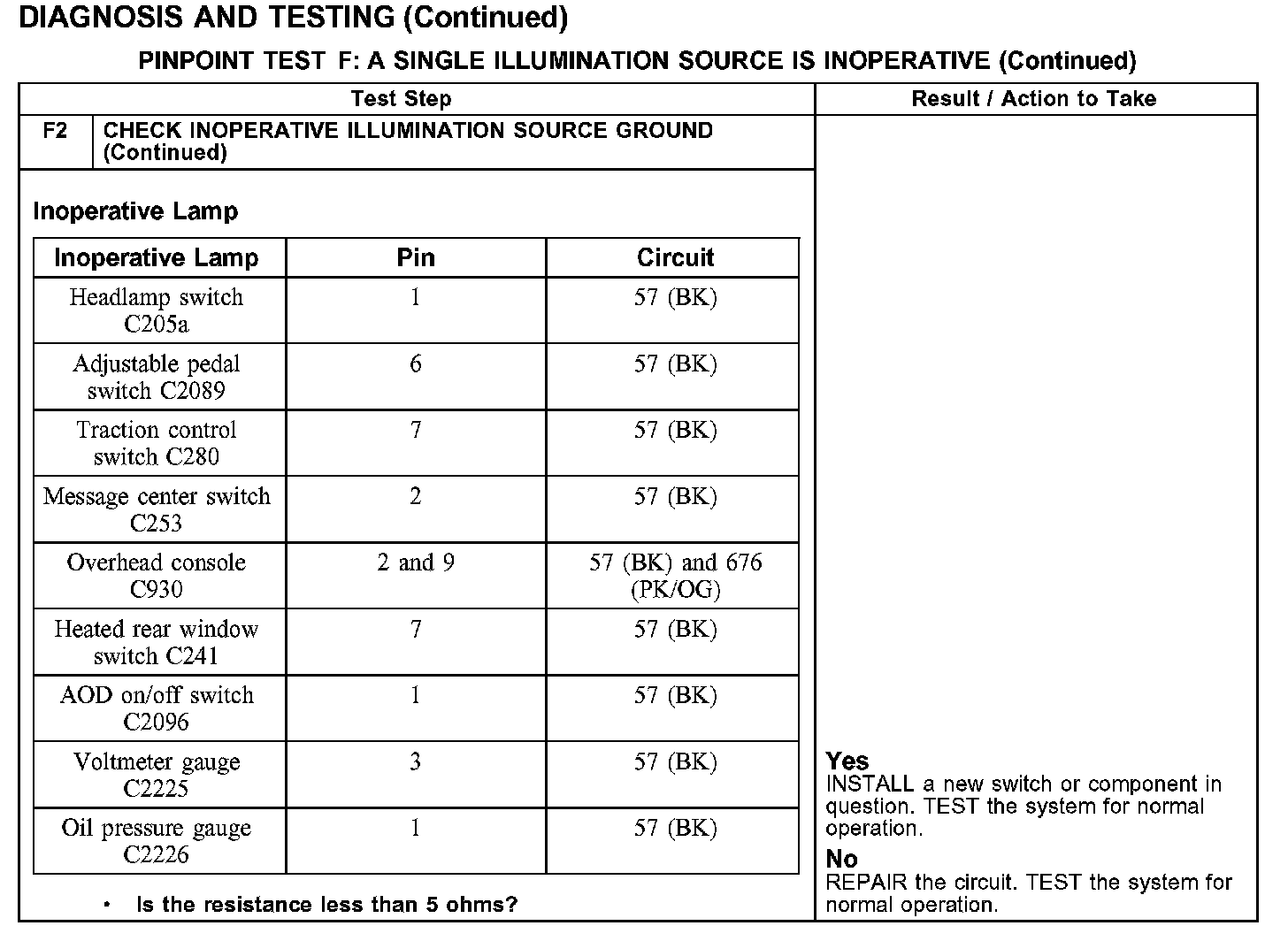

F2 Continued:
