Test E: The Steering Wheel Control Switch Illumination Is Inoperative
Test E: The Steering Wheel Control Switch Illumination Is Inoperative
PINPOINT TEST E: THE STEERING WHEEL CONTROL SWITCH ILLUMINATION IS INOPERATIVE

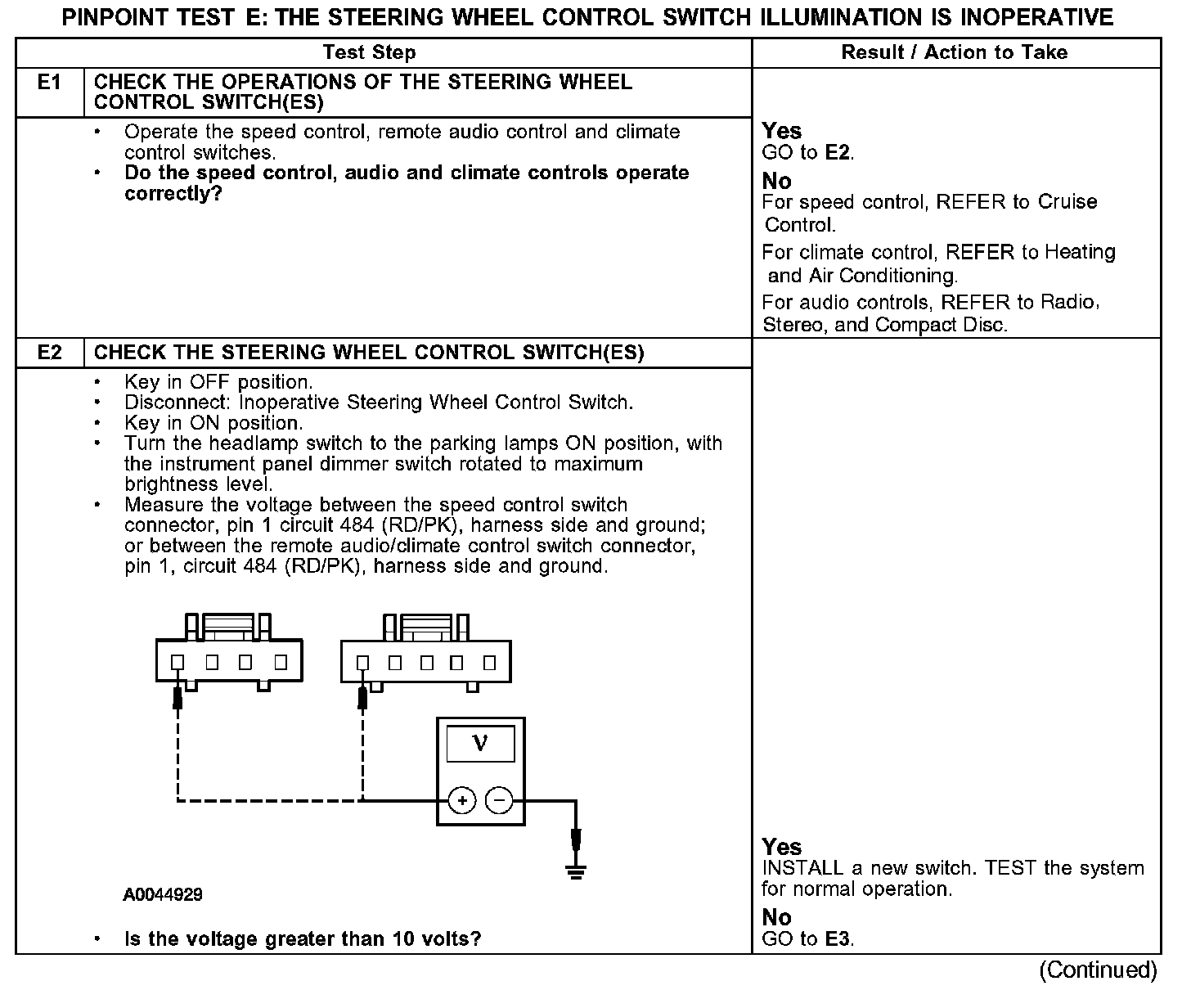

E1-E2:

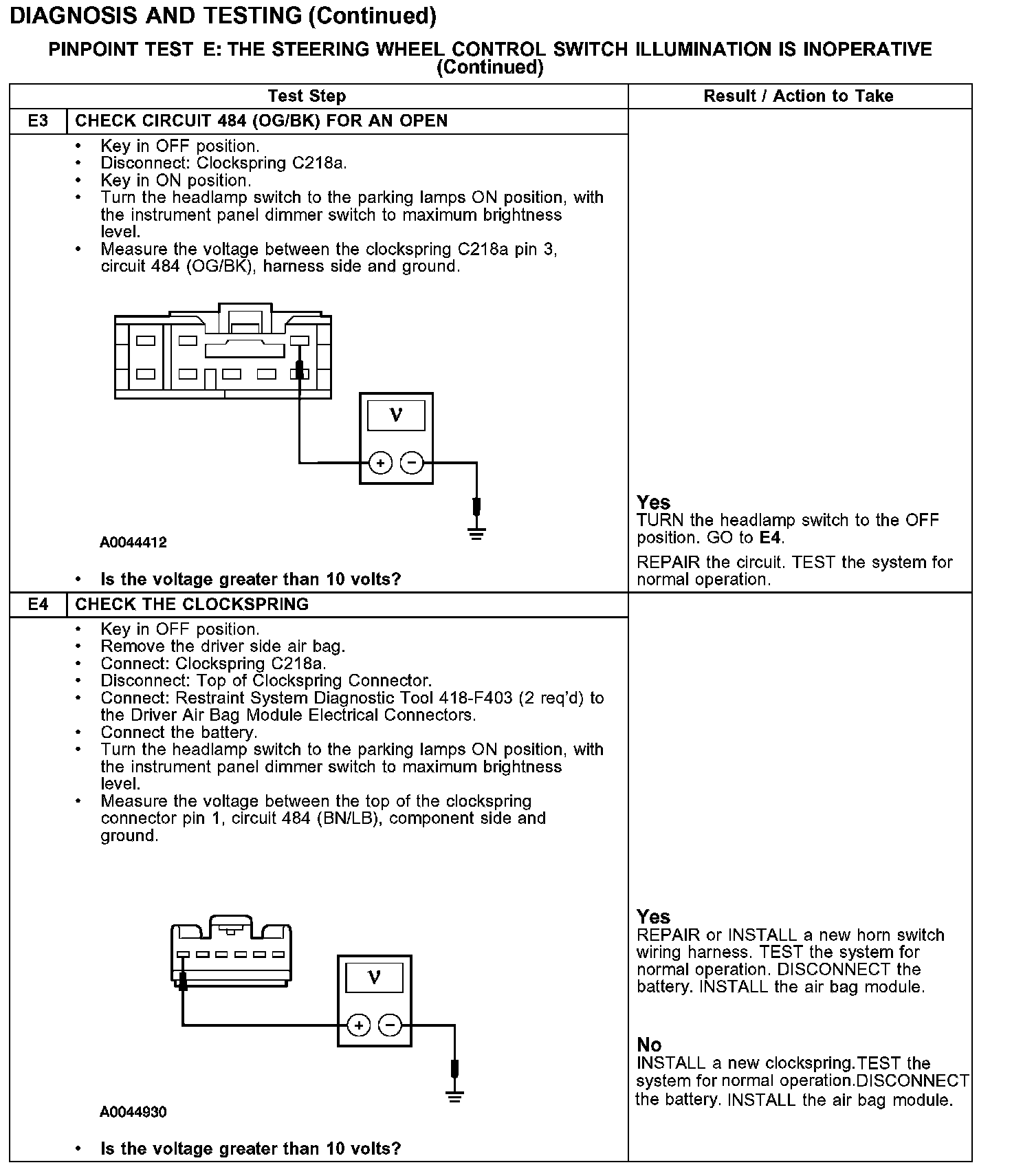

E3-E4:
