Test D: The Audio System Illumination Is Inoperative
Test D: The Audio System Illumination Is Inoperative

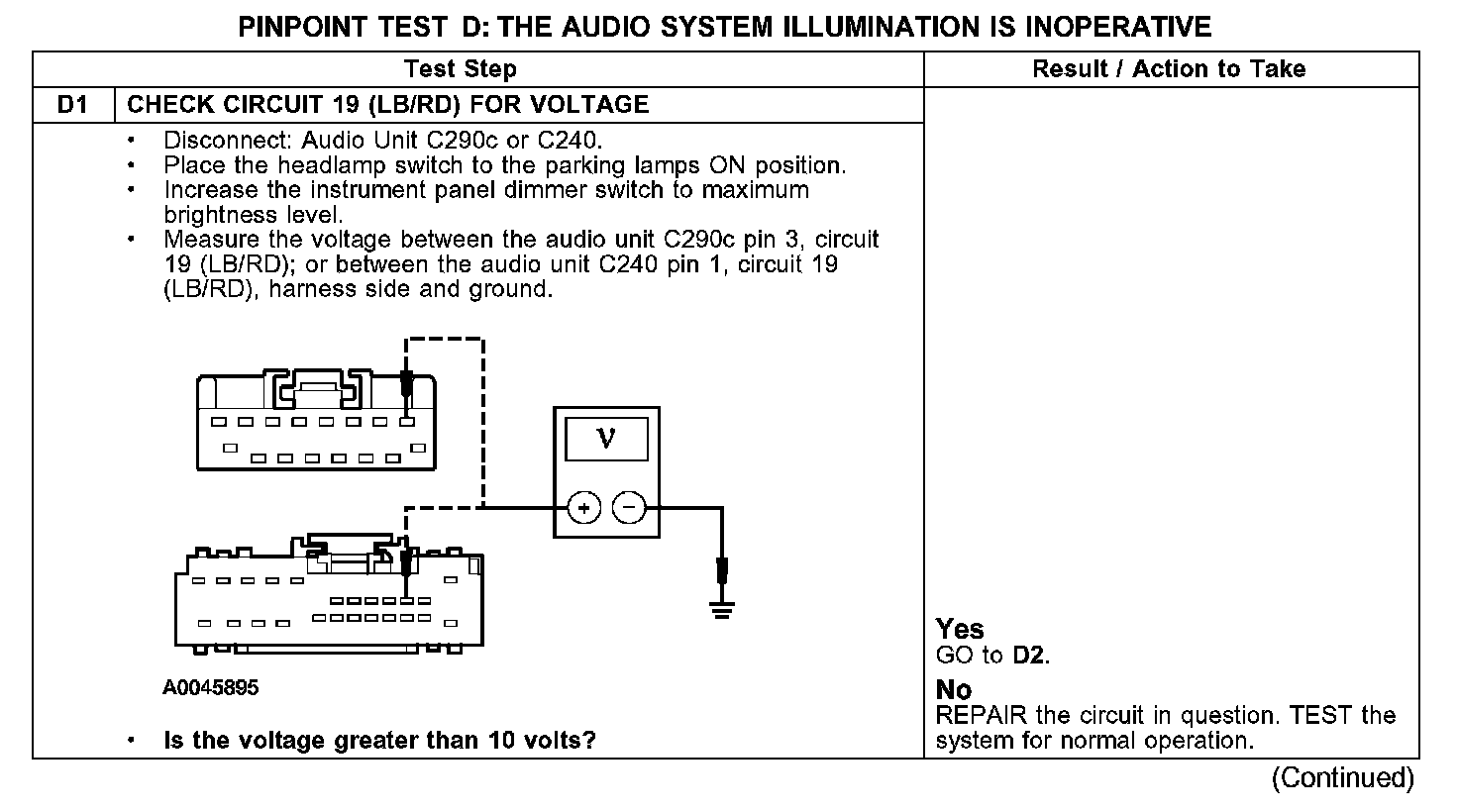

PINPOINT TEST D: THE AUDIO SYSTEM ILLUMINATION IS INOPERATIVE
D1:
D2:
