FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2005
>>
Grand Marquis V8-4.6L SOHC VIN W
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Instrument Cluster and Panel Illumination
>>
Test C: The Climate Control Illumination Is Inoperative
Test C: The Climate Control Illumination Is Inoperative
PINPOINT TEST C: THE CLIMATE CONTROL ILLUMINATION IS INOPERATIVE

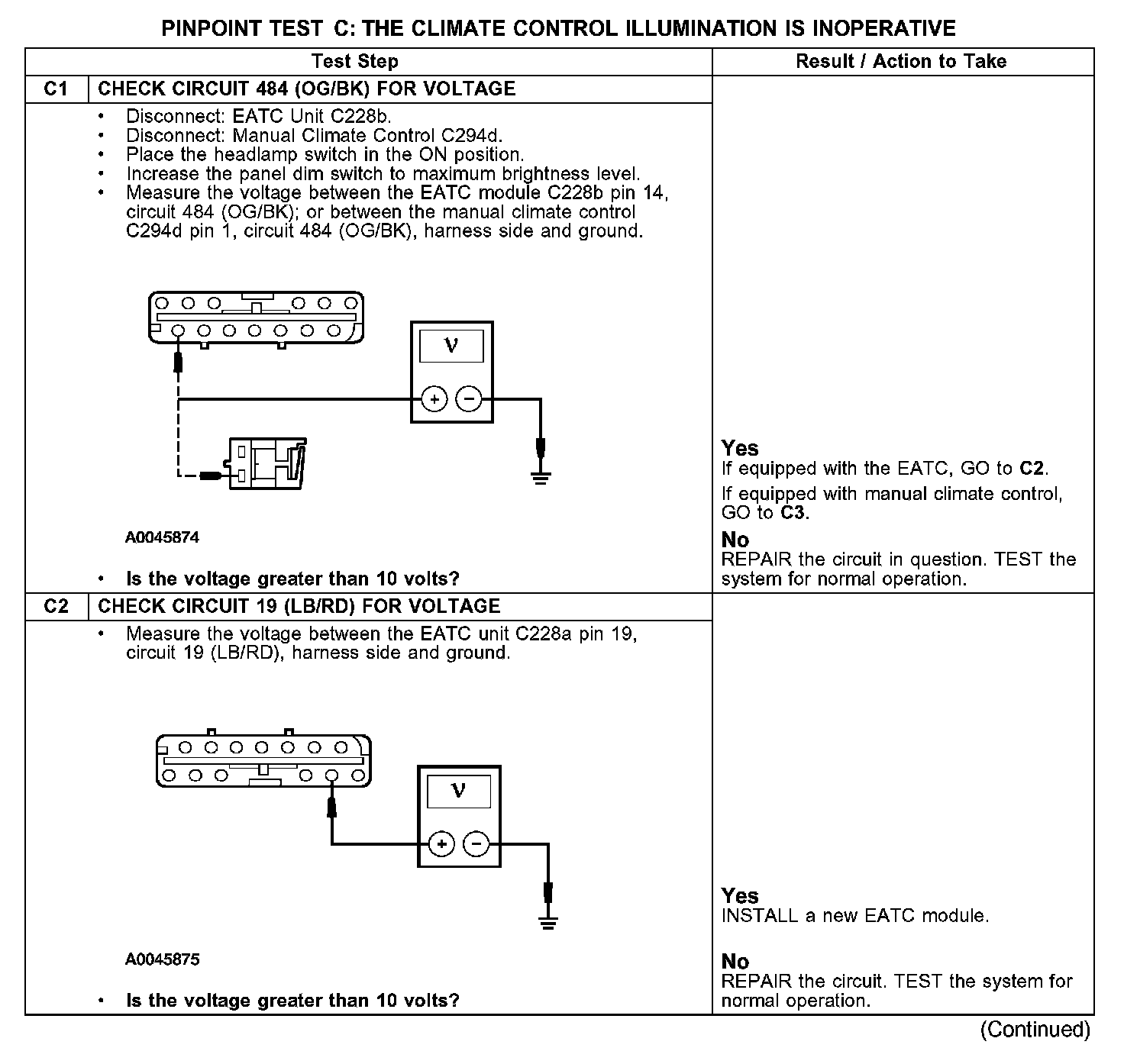

C1-C2:

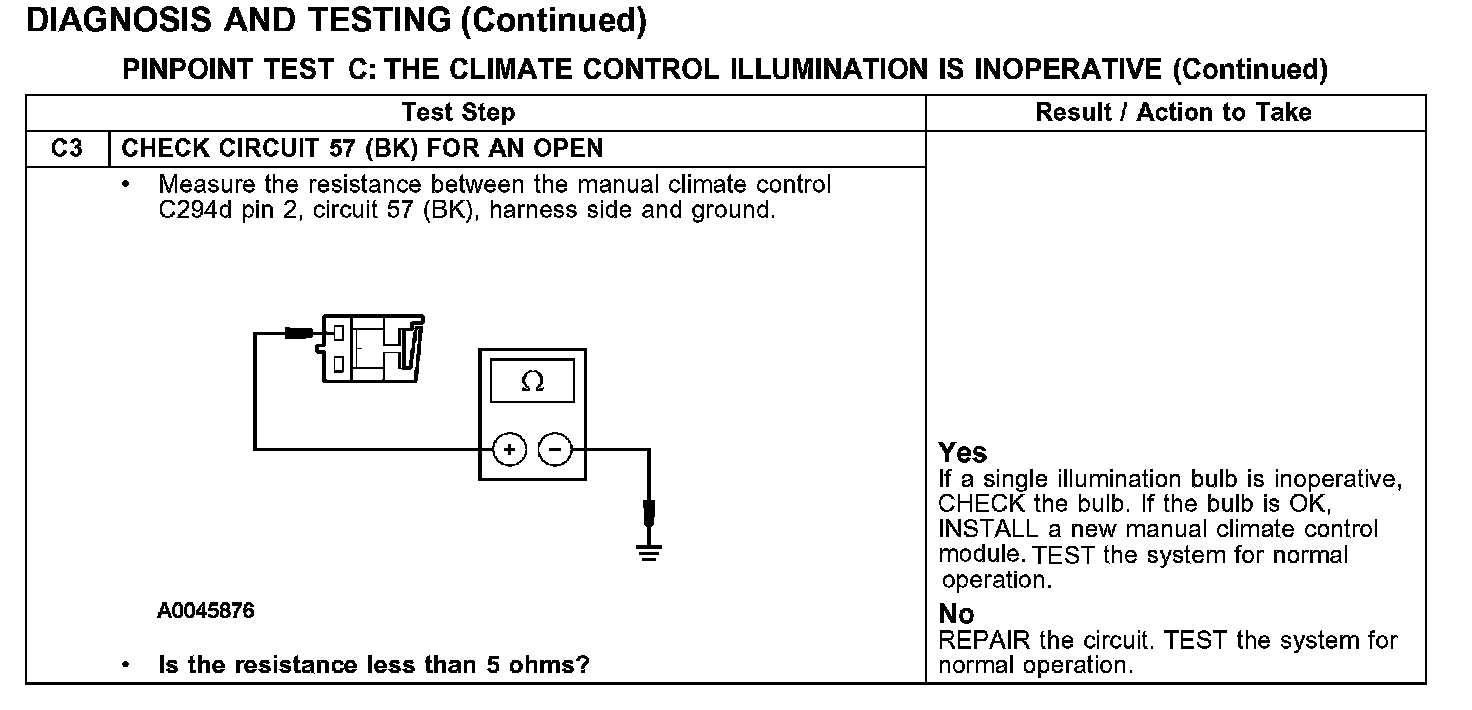

C3:
