Test B: The Instrument Cluster Illumination Is Inoperative
Test B: The Instrument Cluster Illumination Is Inoperative
PINPOINT TEST B: THE INSTRUMENT CLUSTER ILLUMINATION IS INOPERATIVE

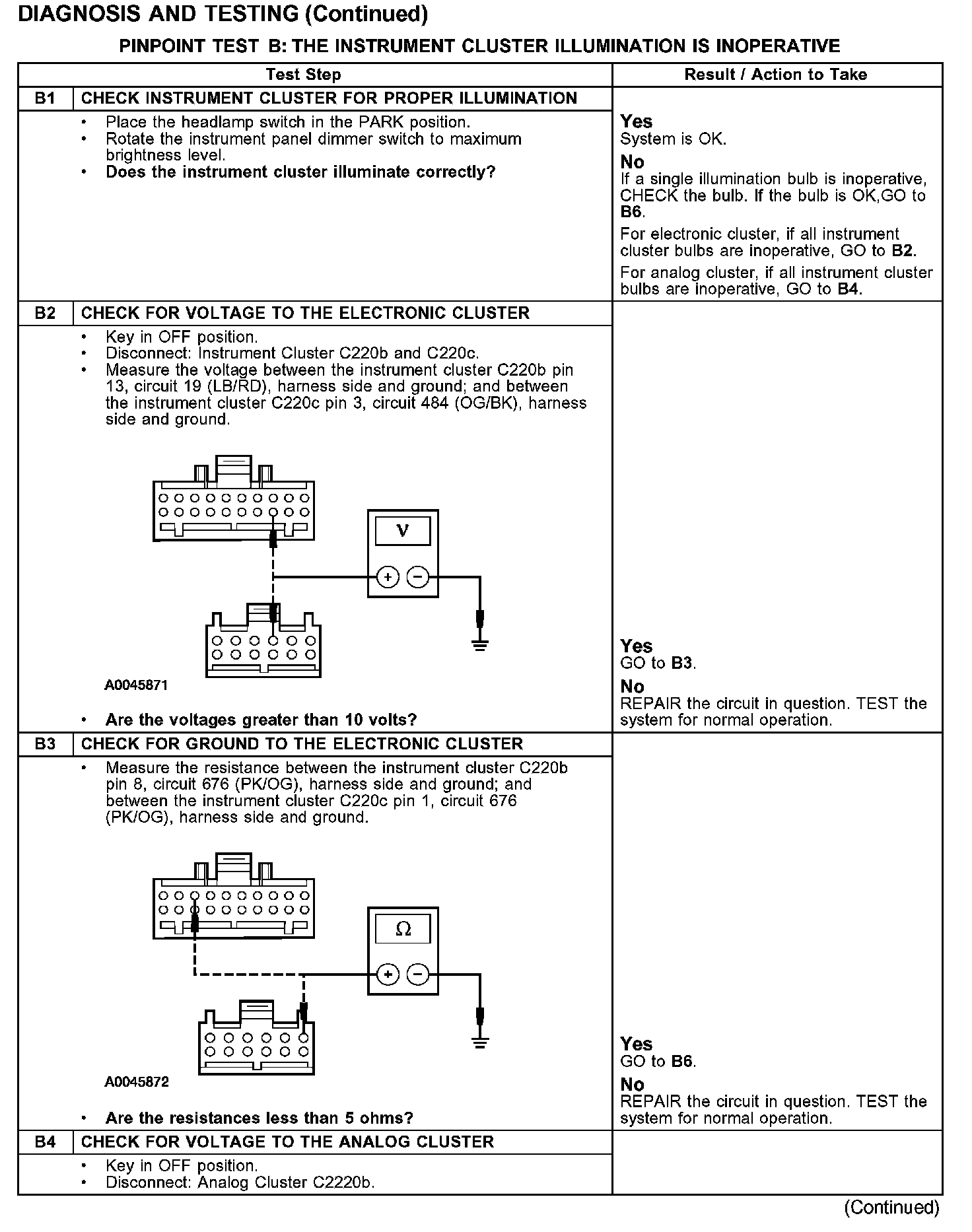

B1-B4:

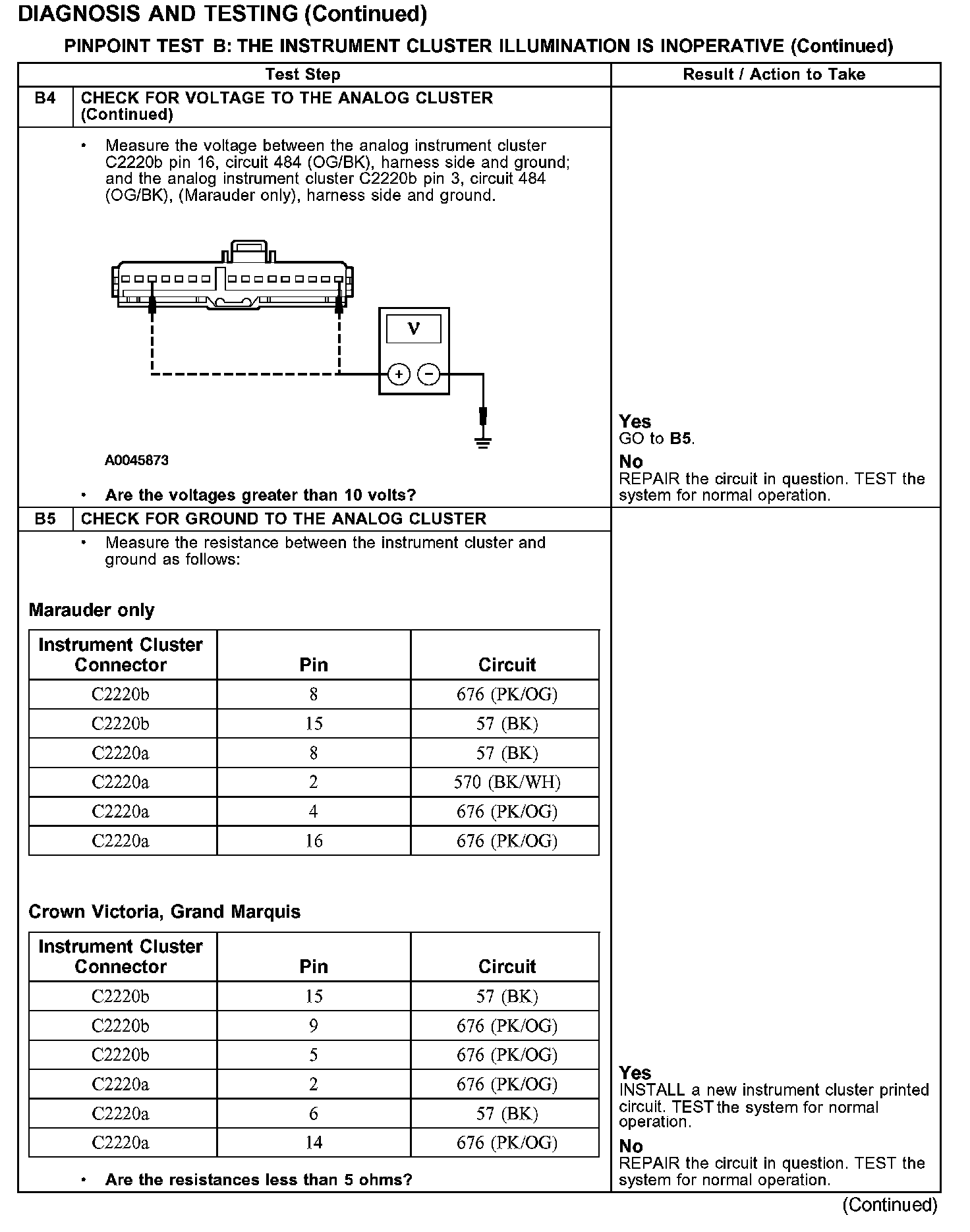

B4-B5:

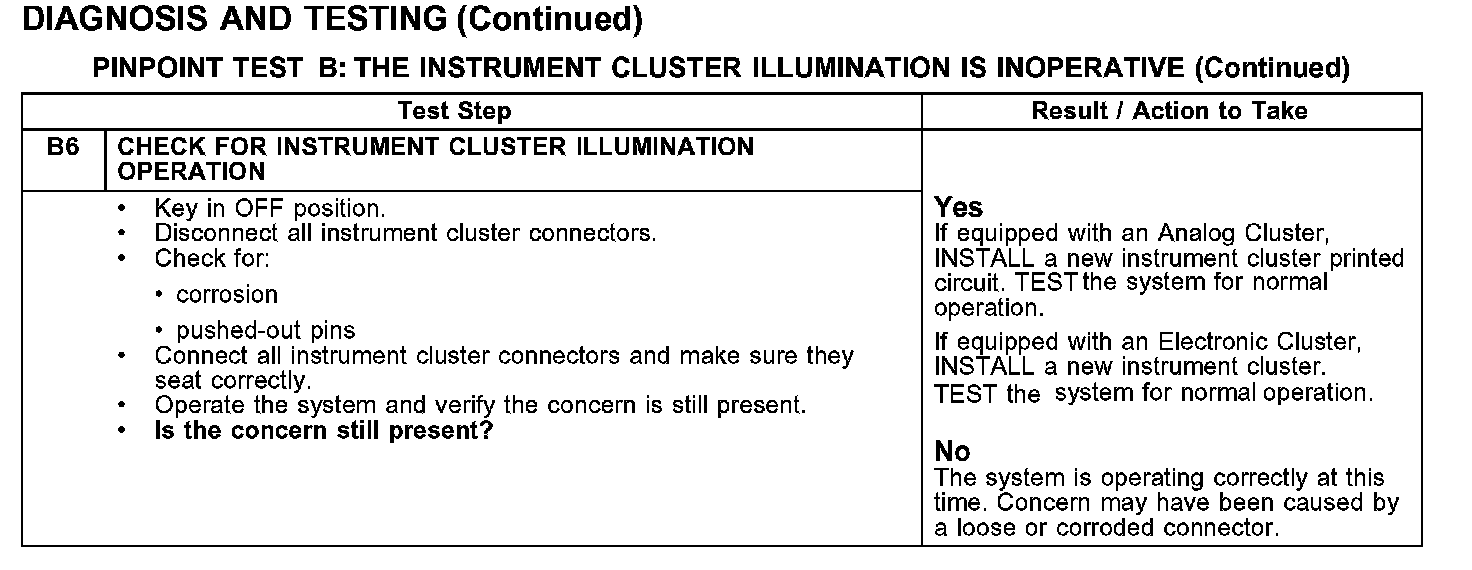

B6:
