Test A: The Control Illumination Is Inoperative

PINPOINT TEST A: THE CONTROL ILLUMINATION IS INOPERATIVE

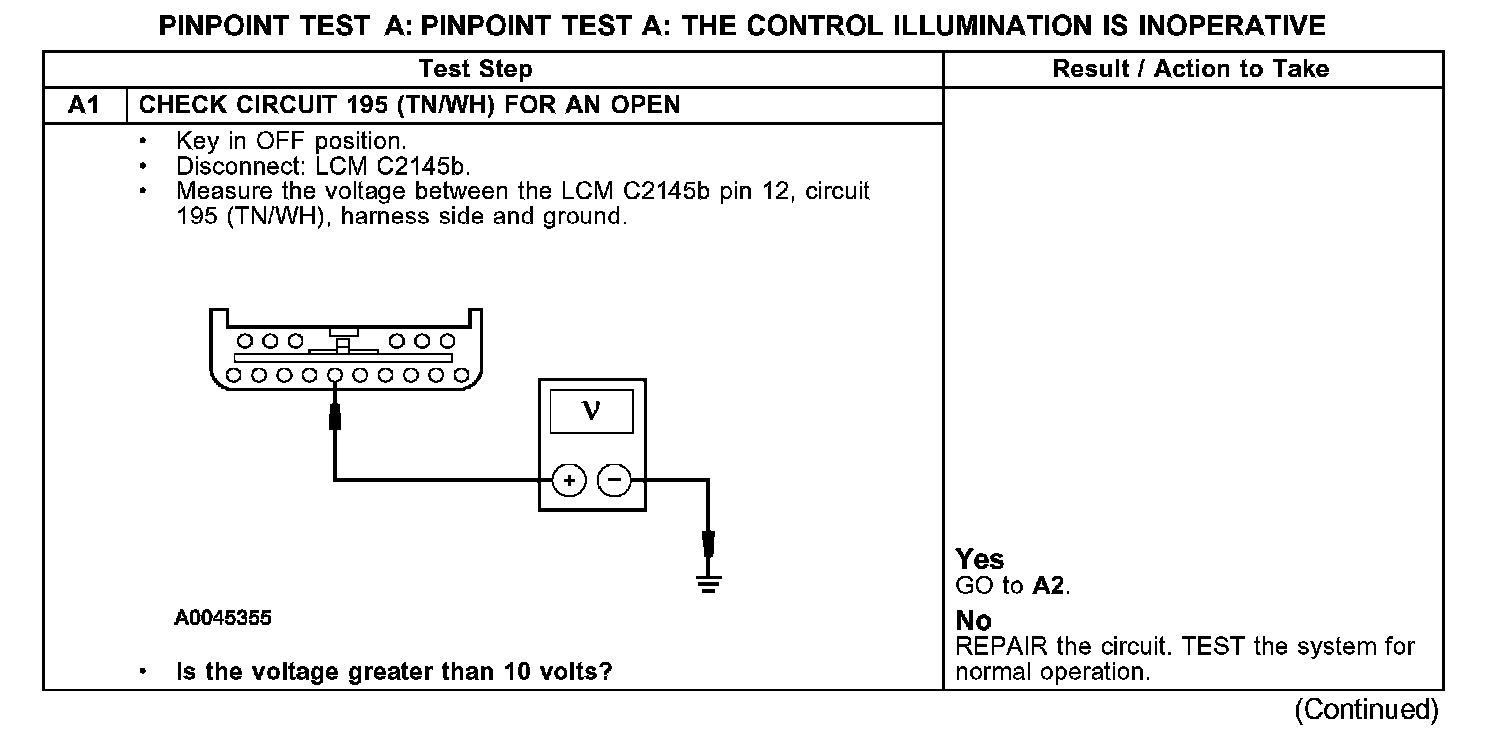

A1:

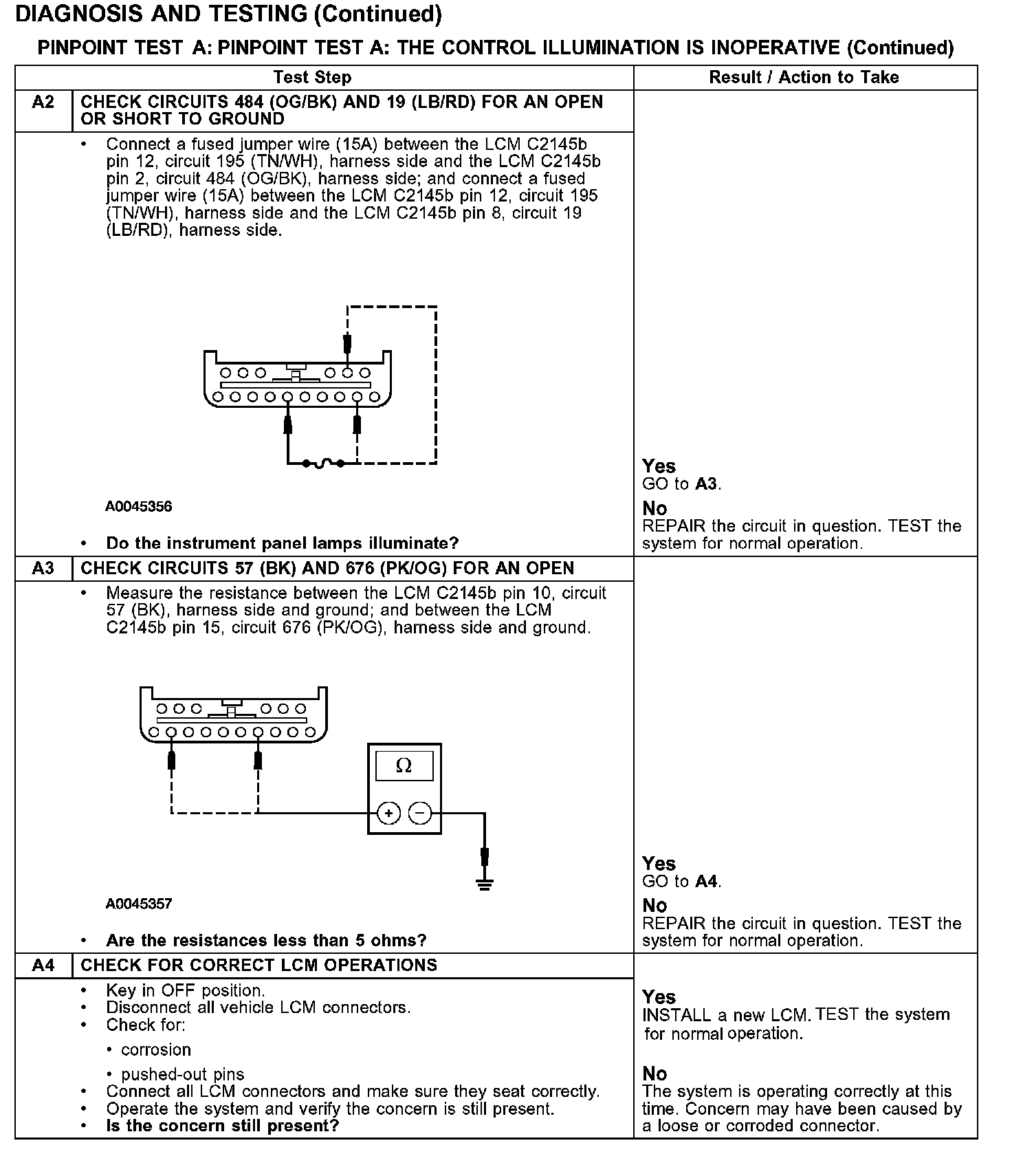

A2-A4:
