Test Y: The Electronic Throttle Control Indicator Is Never/Always on
Test Y: The Electronic Throttle Control Indicator Is Never/Always on
PINPOINT TEST Y: THE ELECTRONIC THROTTLE CONTROL INDICATOR IS NEVER/ALWAYS ON

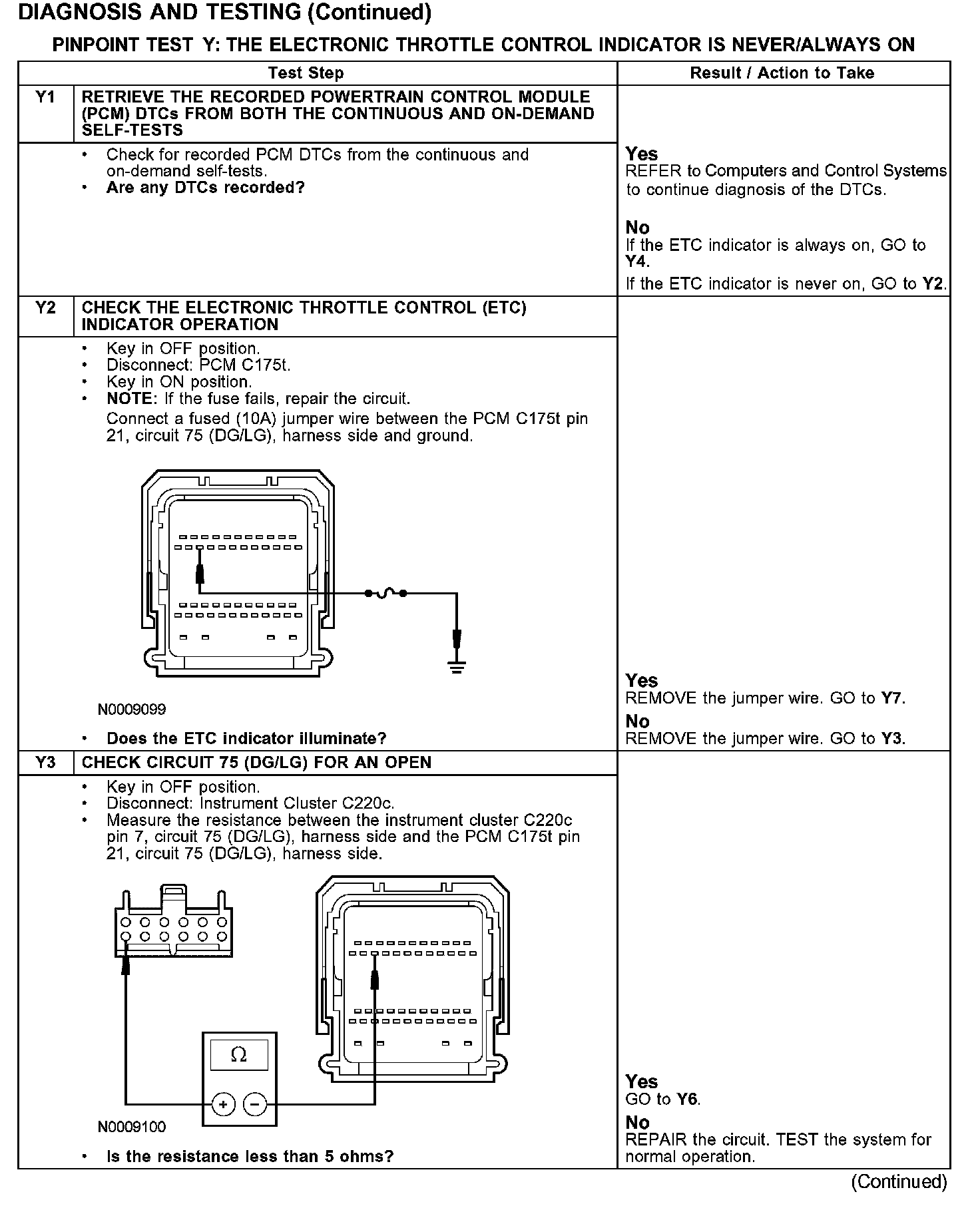

Y1-Y3:

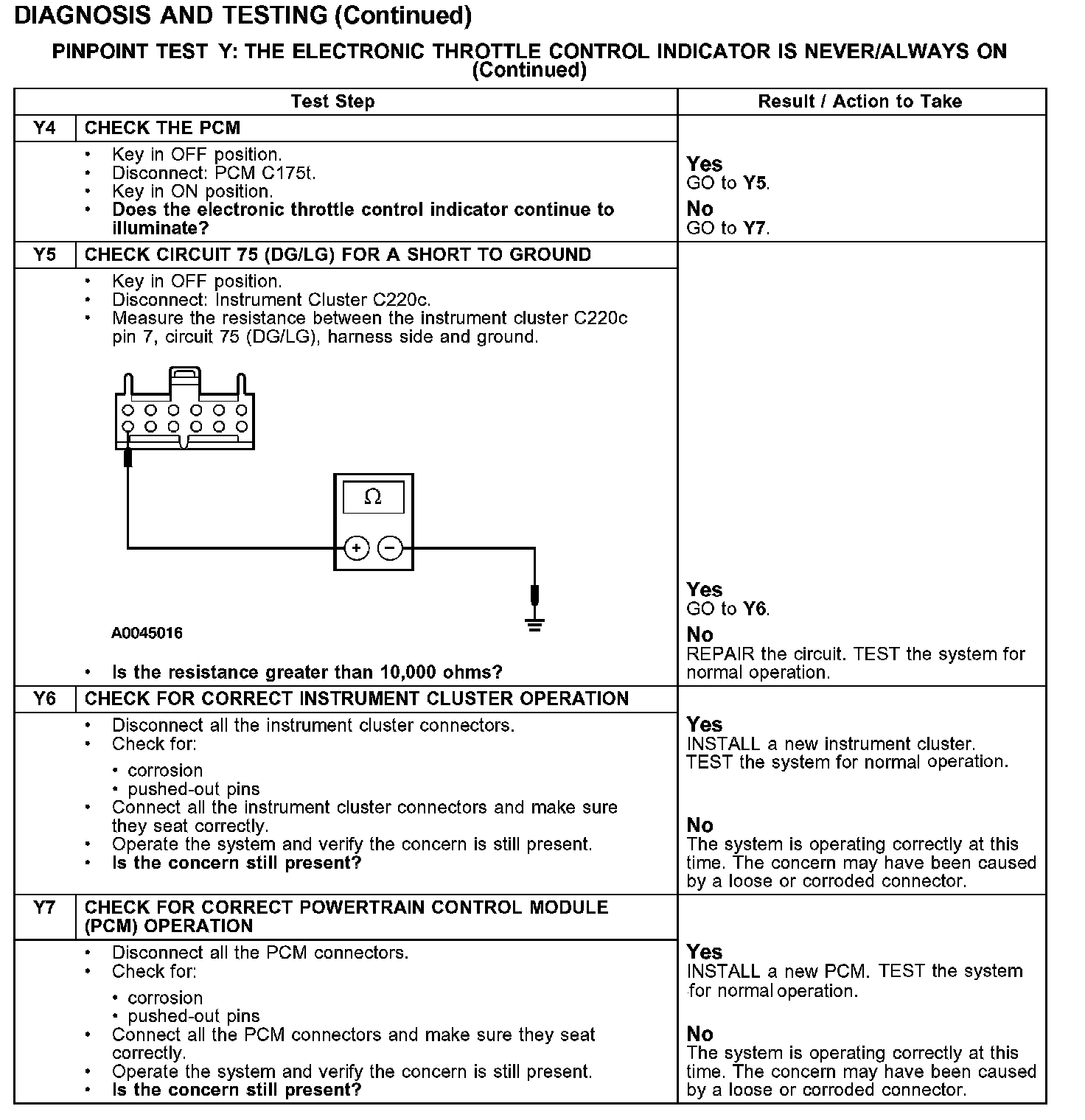

Y4-Y7:
