Test X: The Instrument Cluster Is Inoperative
Test X: The Instrument Cluster Is Inoperative

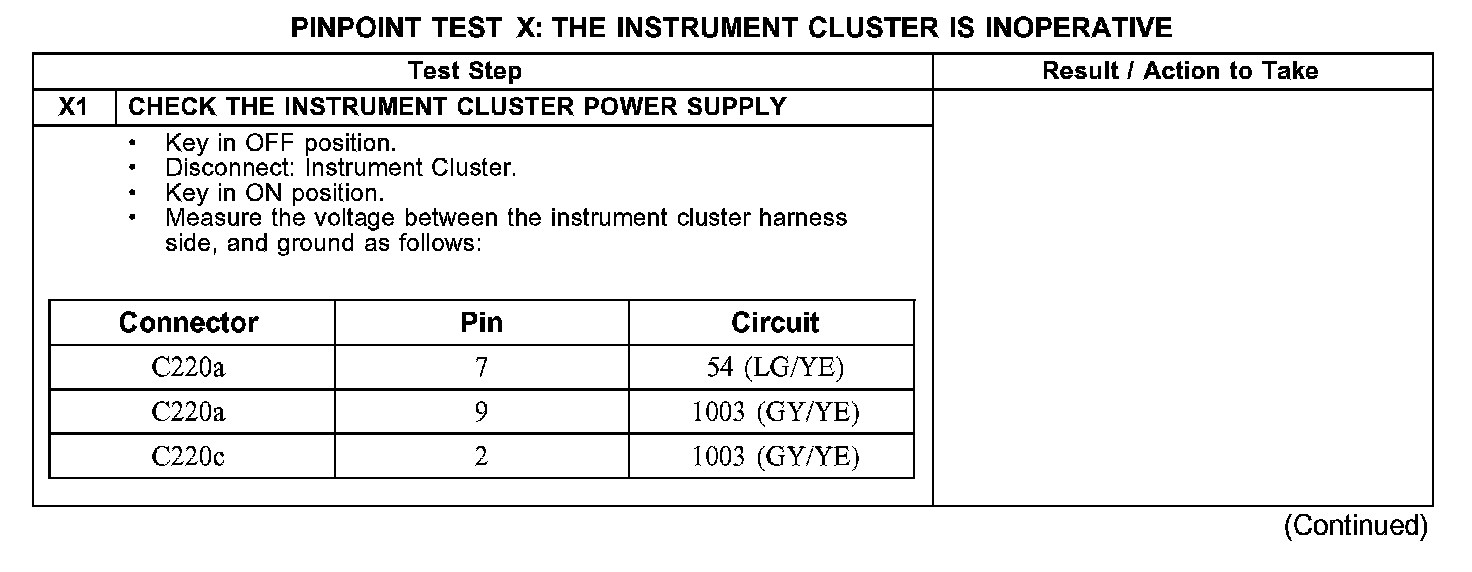

PINPOINT TEST X: THE INSTRUMENT CLUSTER IS INOPERATIVE

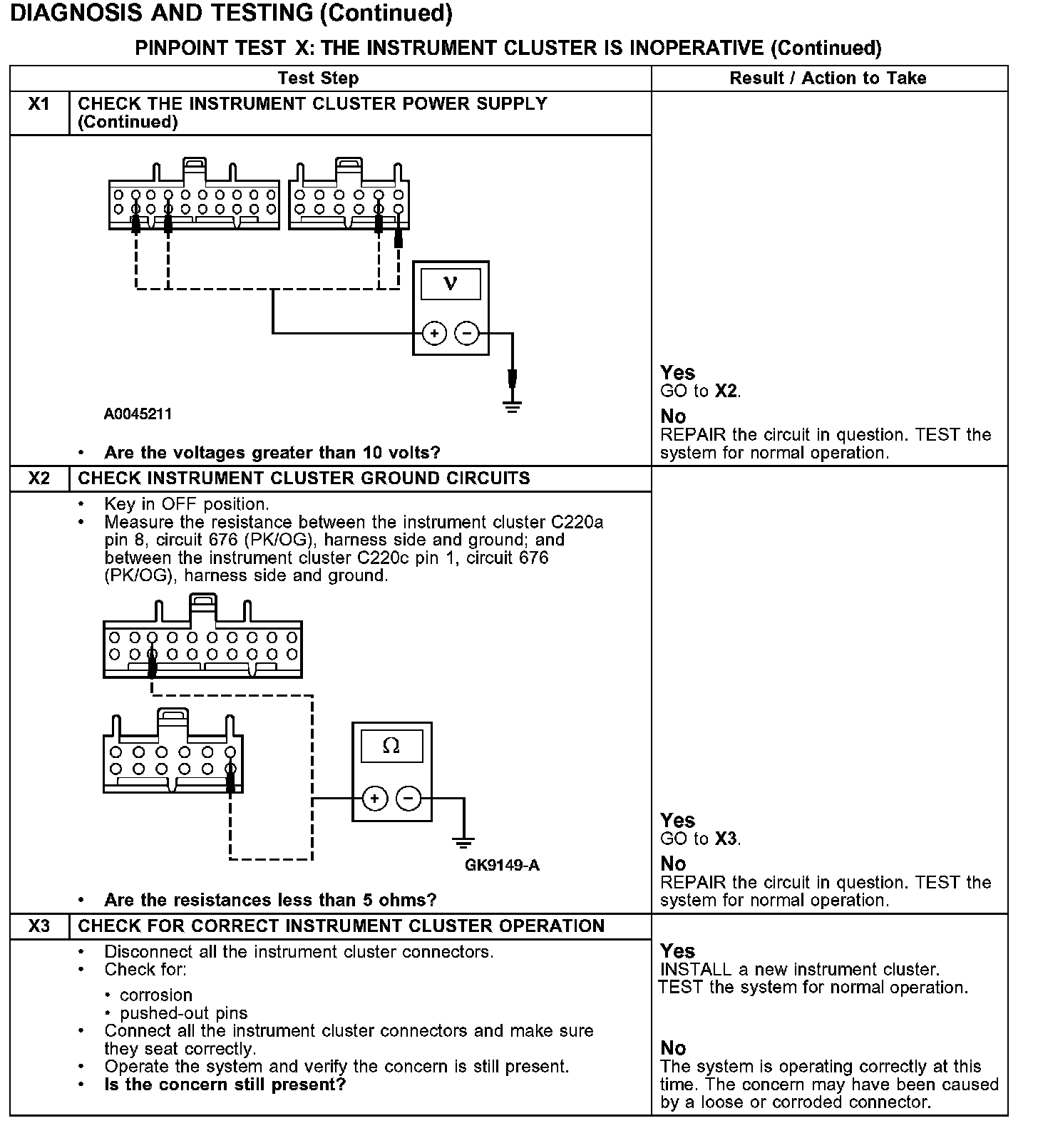

X1:
X1-X3:
