Test V: The Hazard Indicator Is Never on
Test V: The Hazard Indicator Is Never on

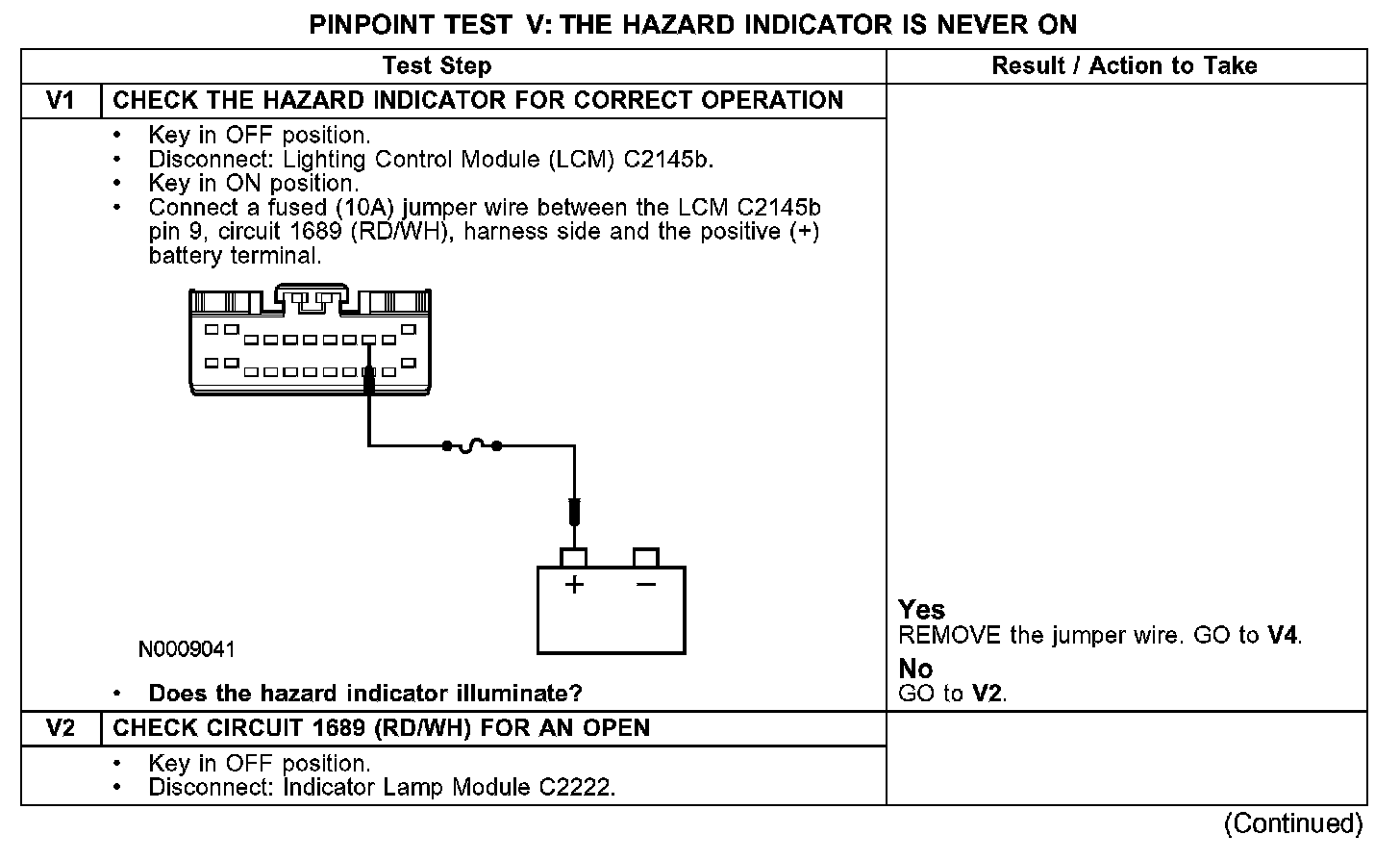

PINPOINT TEST V: THE HAZARD INDICATOR IS NEVER ON
V1-V2:

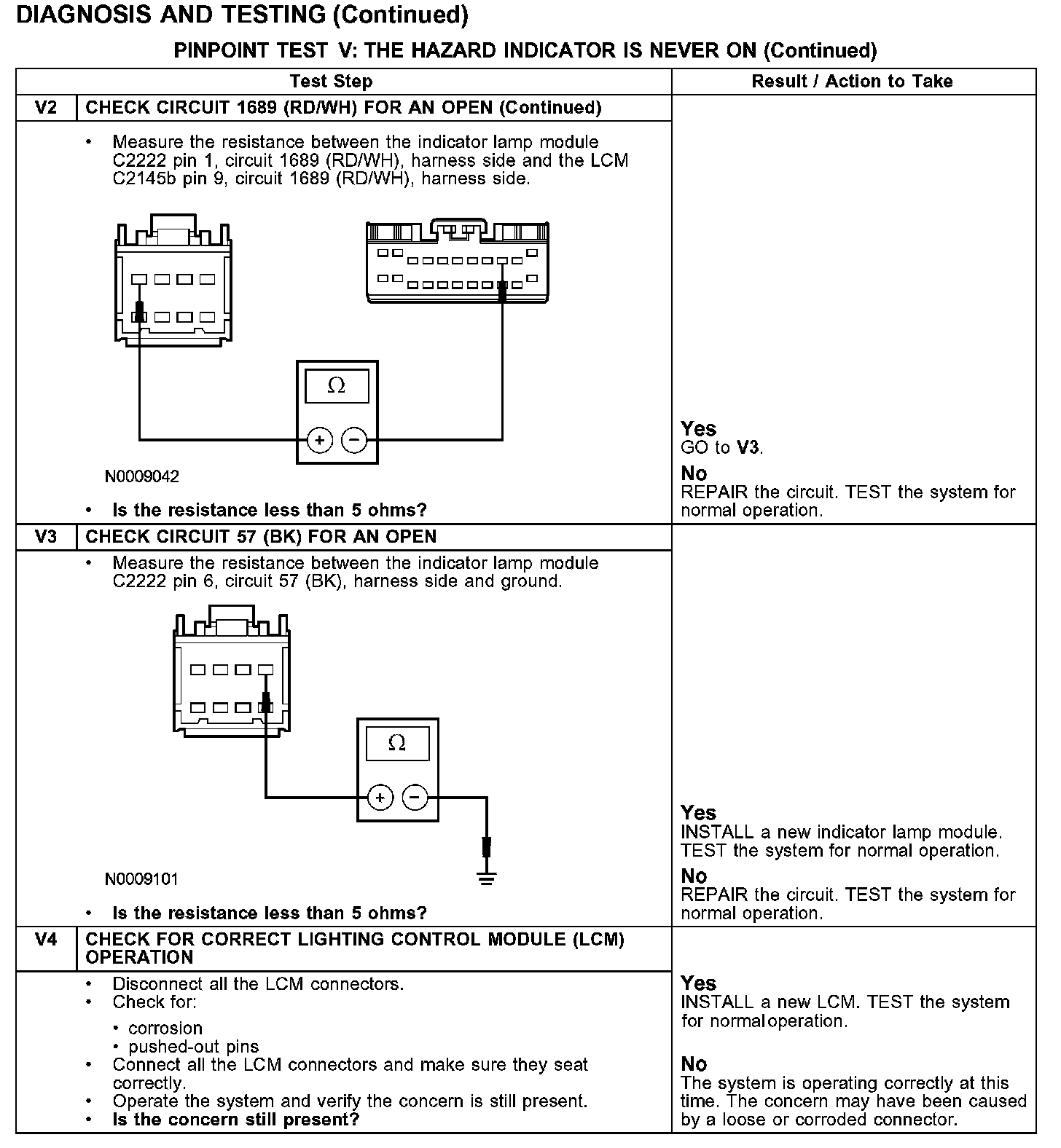

V2-V4:
