Test R: The Fail-Safe Cooling Indicator Is Inoperative
Test R: The Fail-Safe Cooling Indicator Is Inoperative

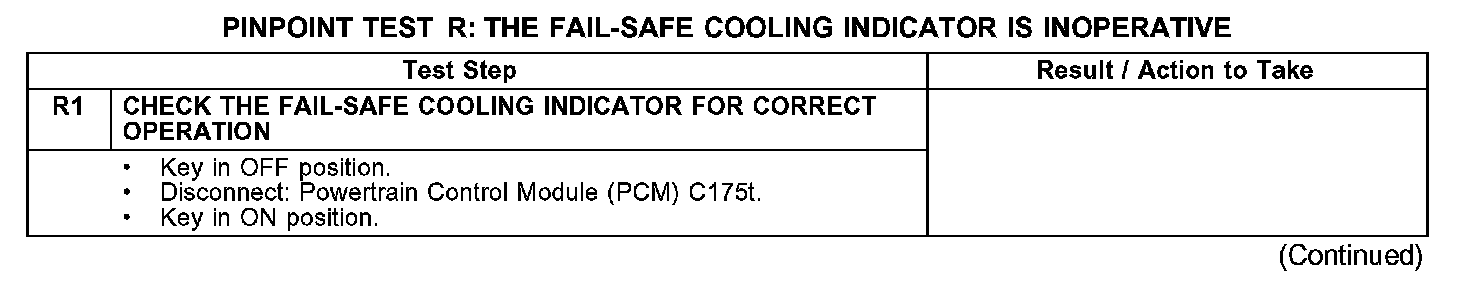

PINPOINT TEST R: THE FAIL-SAFE COOLING INDICATOR IS INOPERATIVE

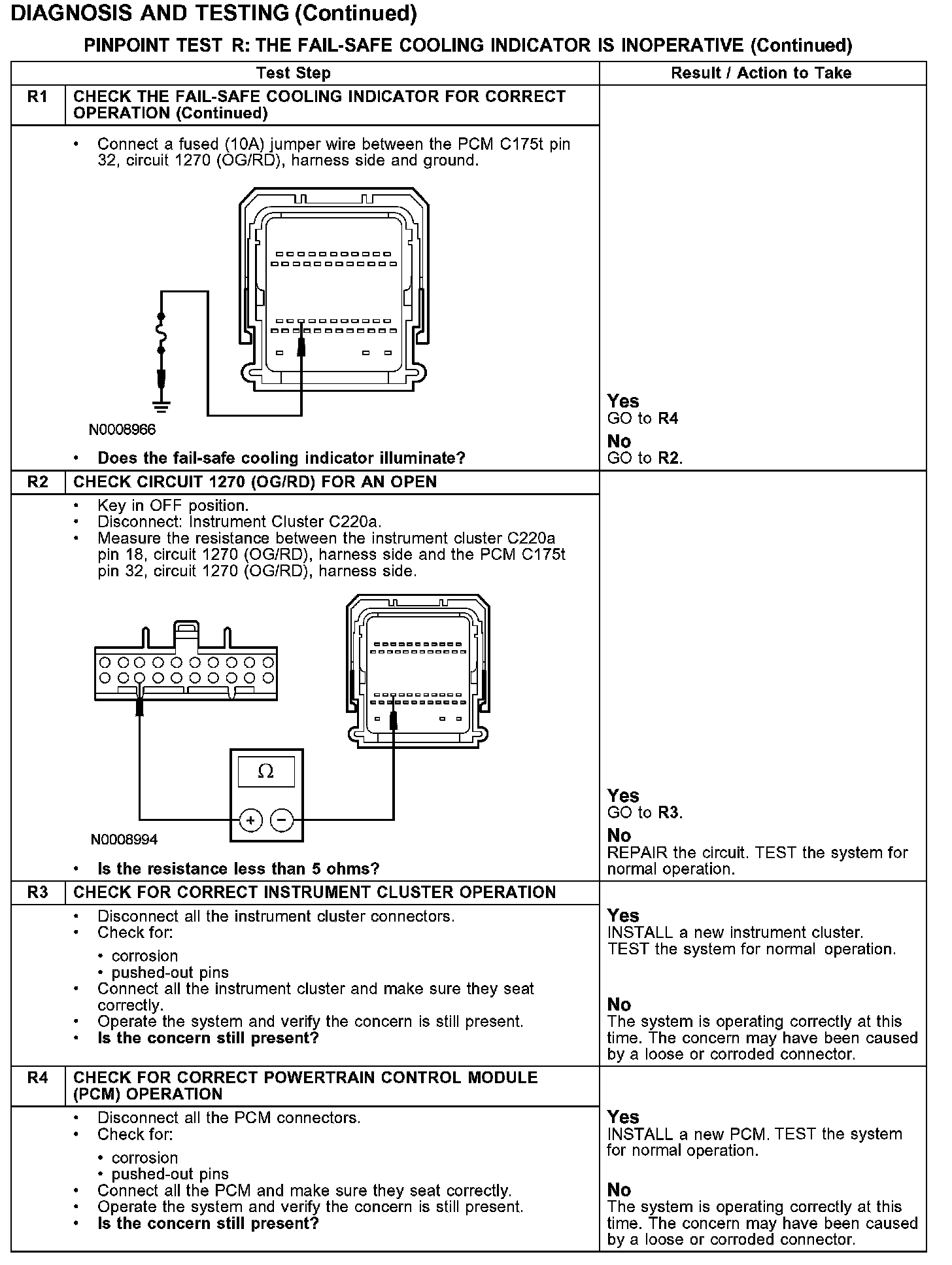

R1:
R1-R4:
