Test Q: The Anti-Lock Brake System (ABS) Warning Indicator Is Never on
Test Q: The Anti-Lock Brake System (ABS) Warning Indicator Is Never on
PINPOINT TEST Q: THE ANTI-LOCK BRAKE SYSTEM (ABS) WARNING INDICATOR IS NEVER ON

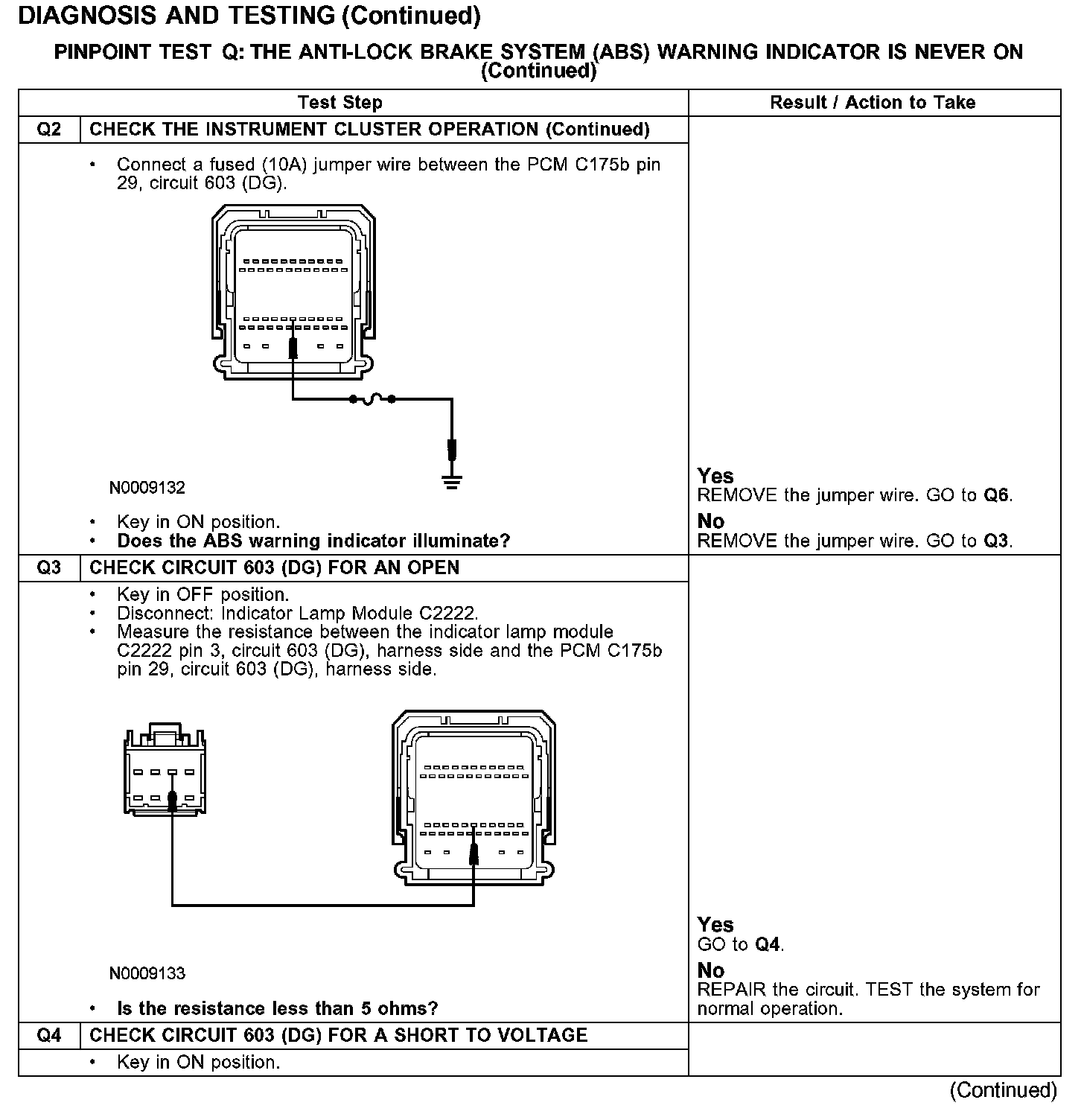

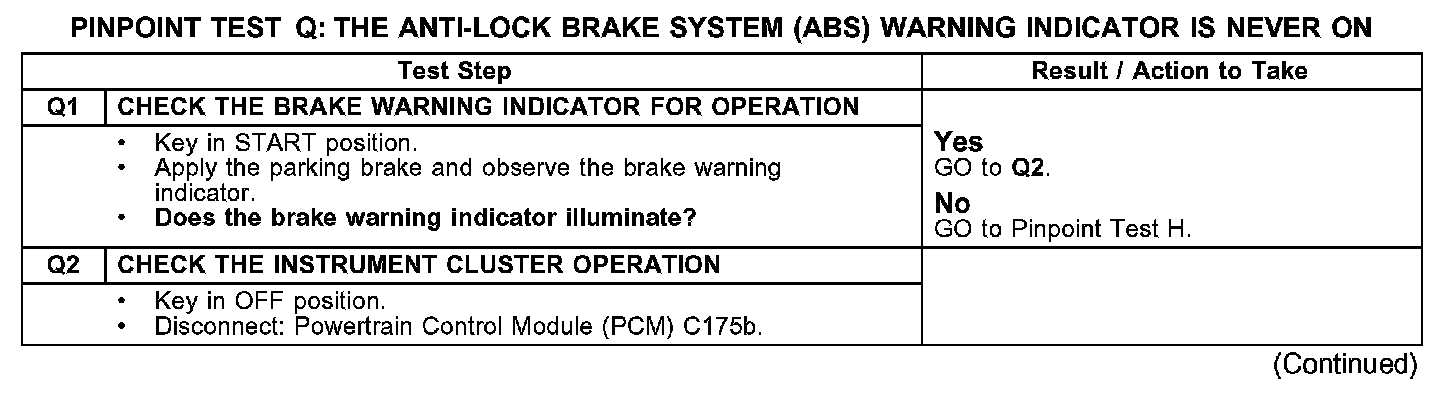

Q1-Q2:
Q2-Q4:

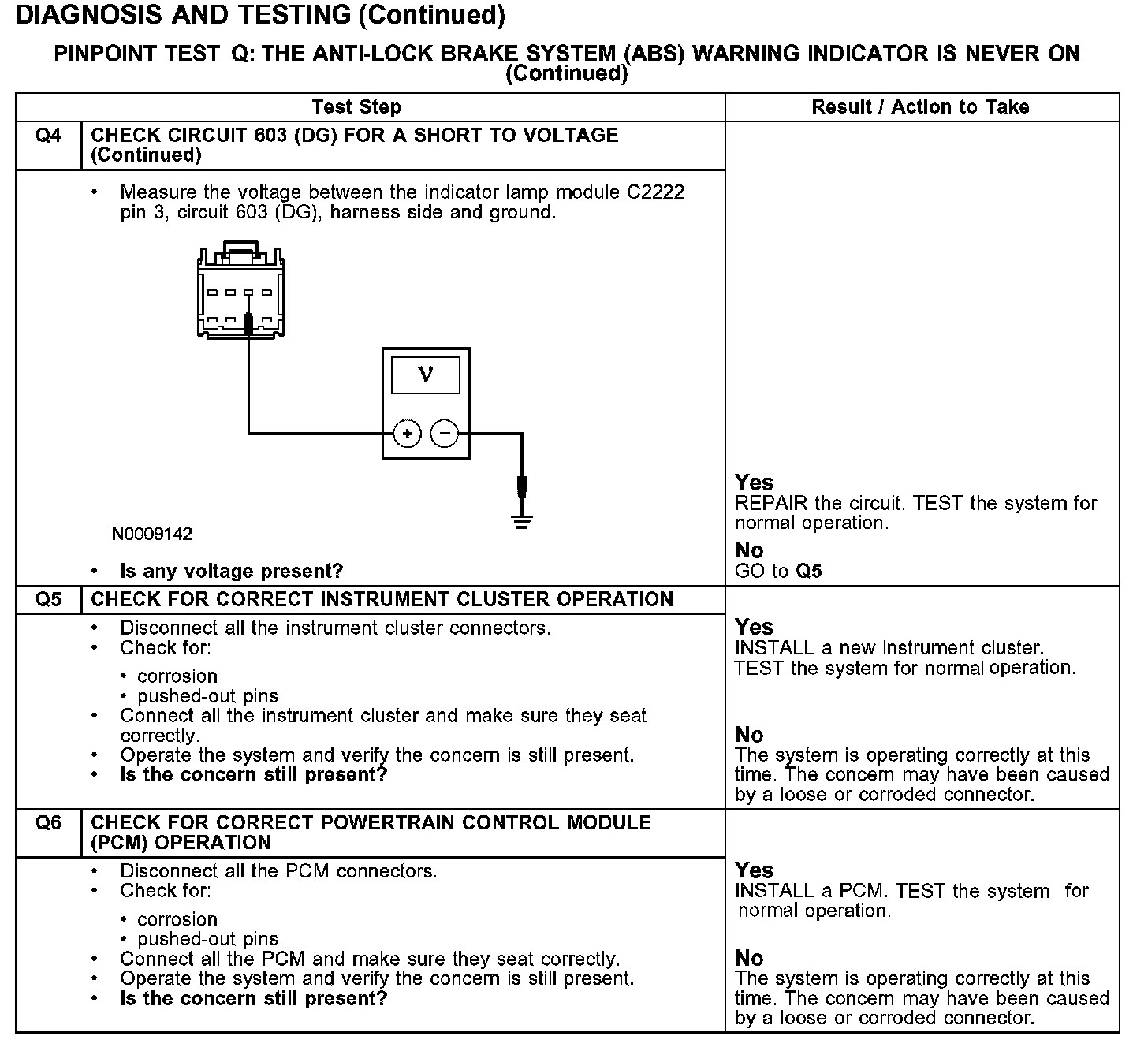

Q4-Q6:
