Home
>>
Mercury
>>
2005
>>
Grand Marquis V8-4.6L SOHC VIN W
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Electronic Cluster
>>
Test N: The High Beam Indicator Is Never on
Test N: The High Beam Indicator Is Never on

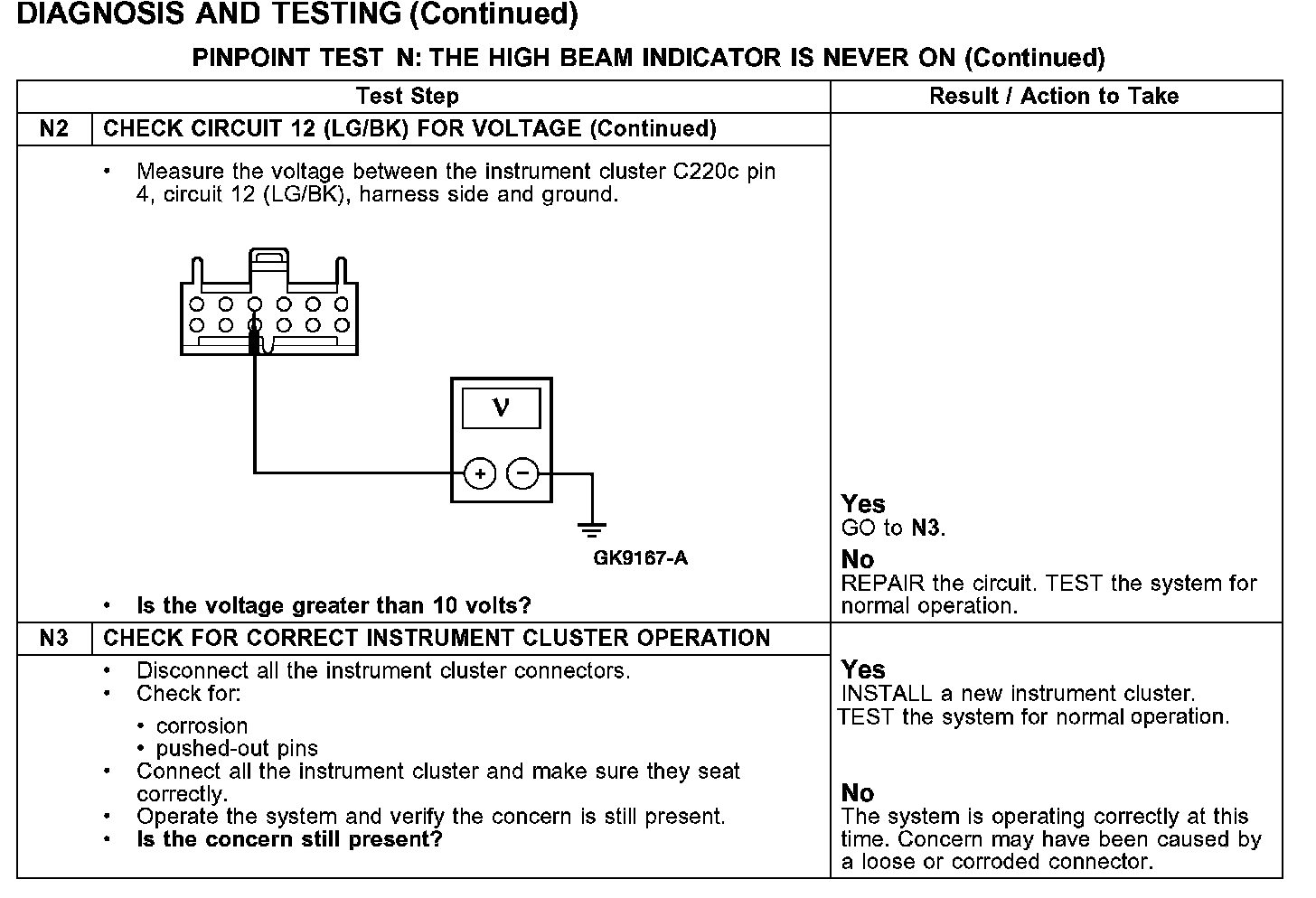

PINPOINT TEST N: THE HIGH BEAM INDICATOR IS NEVER ON
N1-N2:
N2-N3:
