FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2005
>>
Grand Marquis V8-4.6L SOHC VIN W
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Electronic Cluster
>>
Test K: The Check Air Suspension Indicator Is Inoperative/Always on
Test K: The Check Air Suspension Indicator Is Inoperative/Always on
PINPOINT TEST K: THE CHECK AIR SUSPENSION INDICATOR IS INOPERATIVE/ALWAYS ON

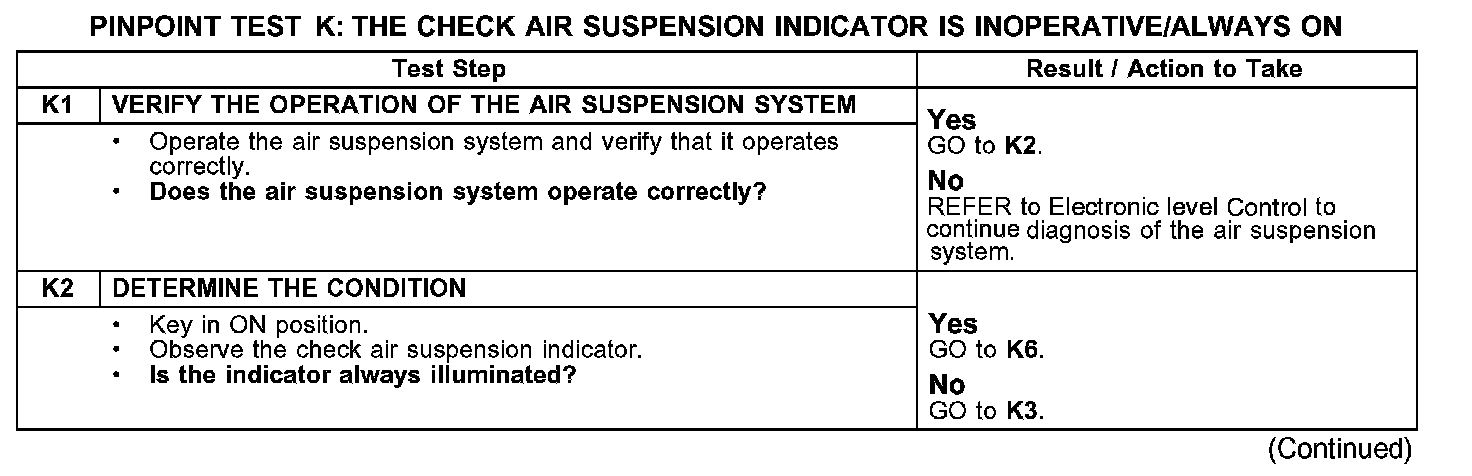

K1-K2:

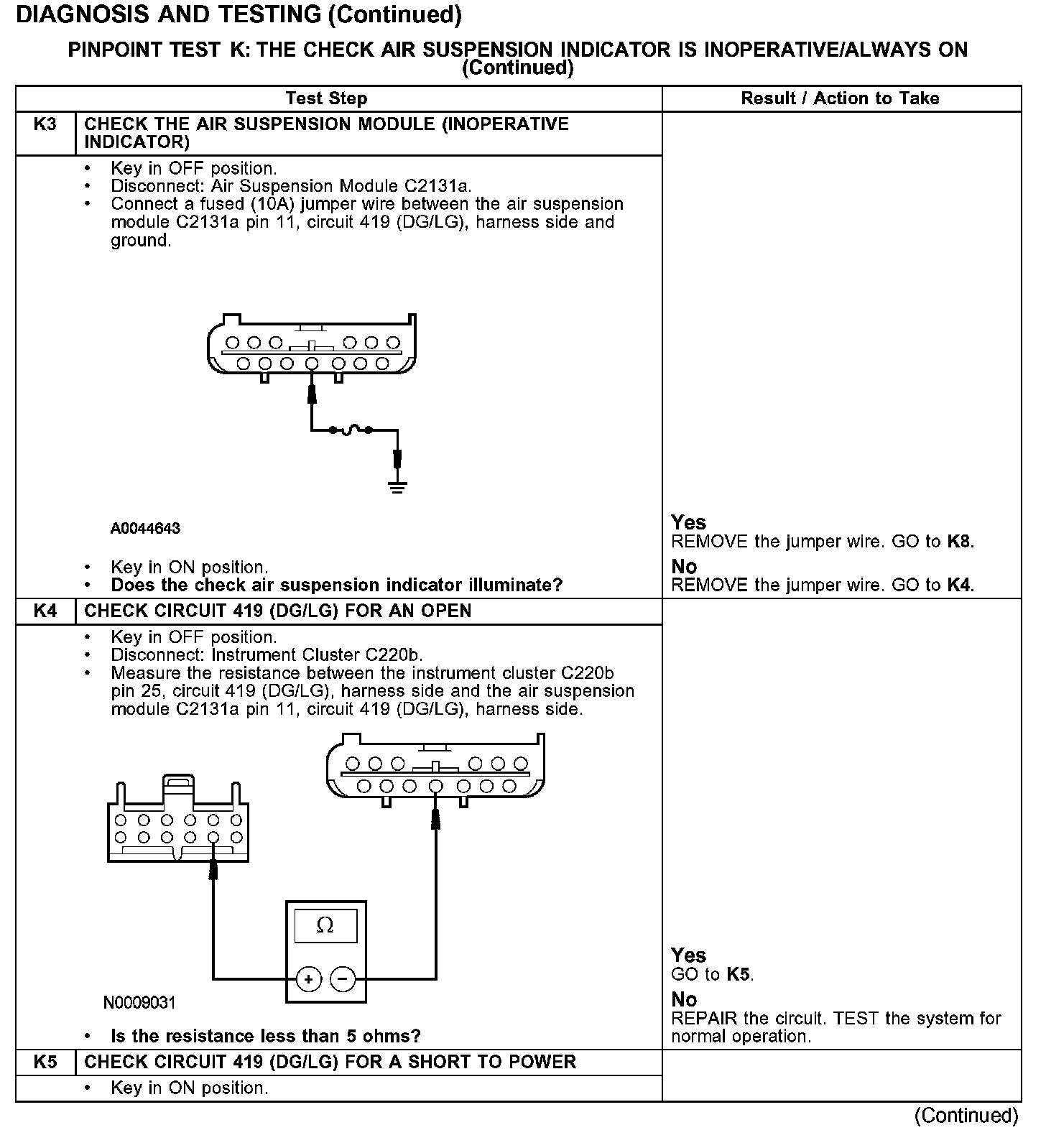

K3-K5:

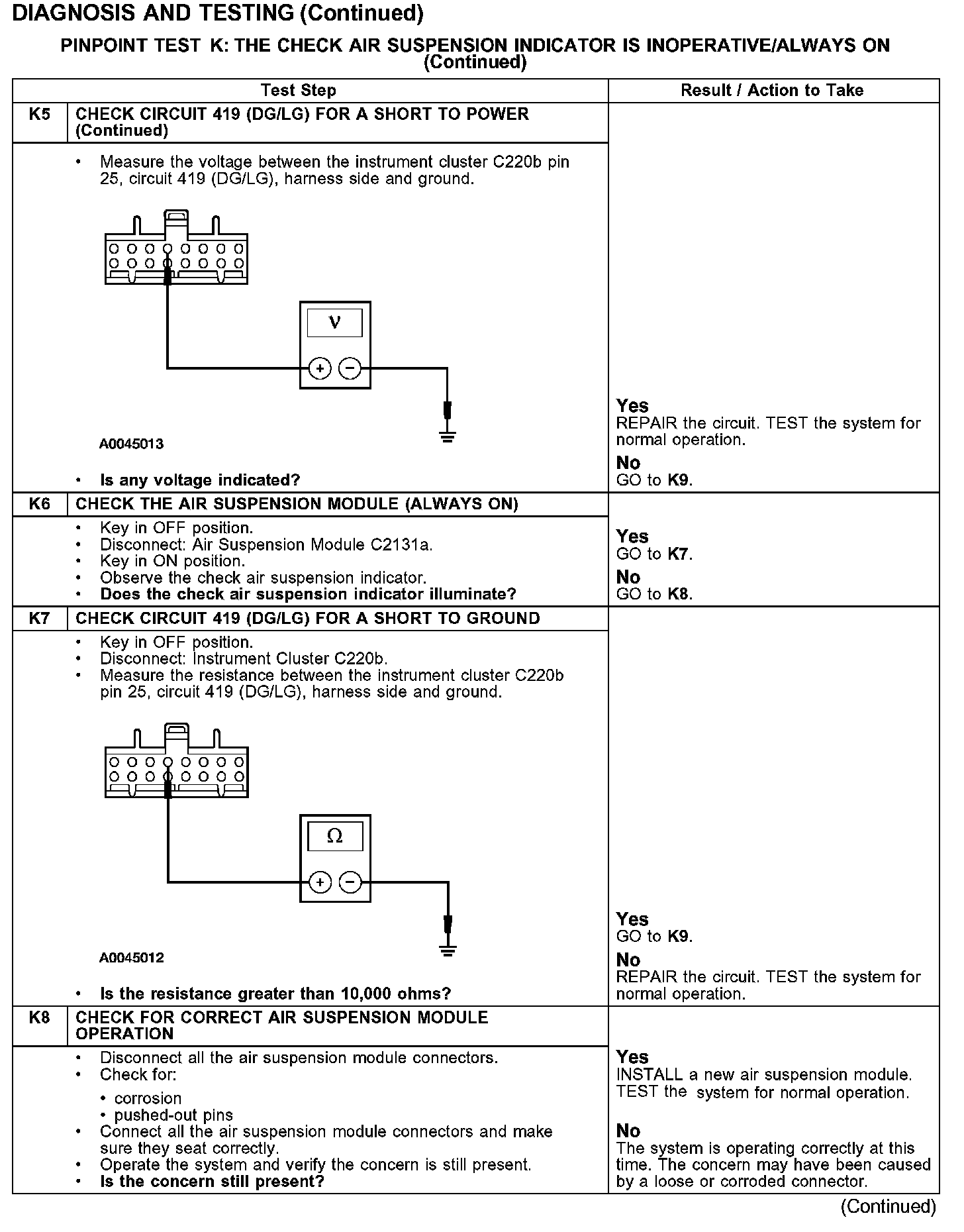

K5-K8:

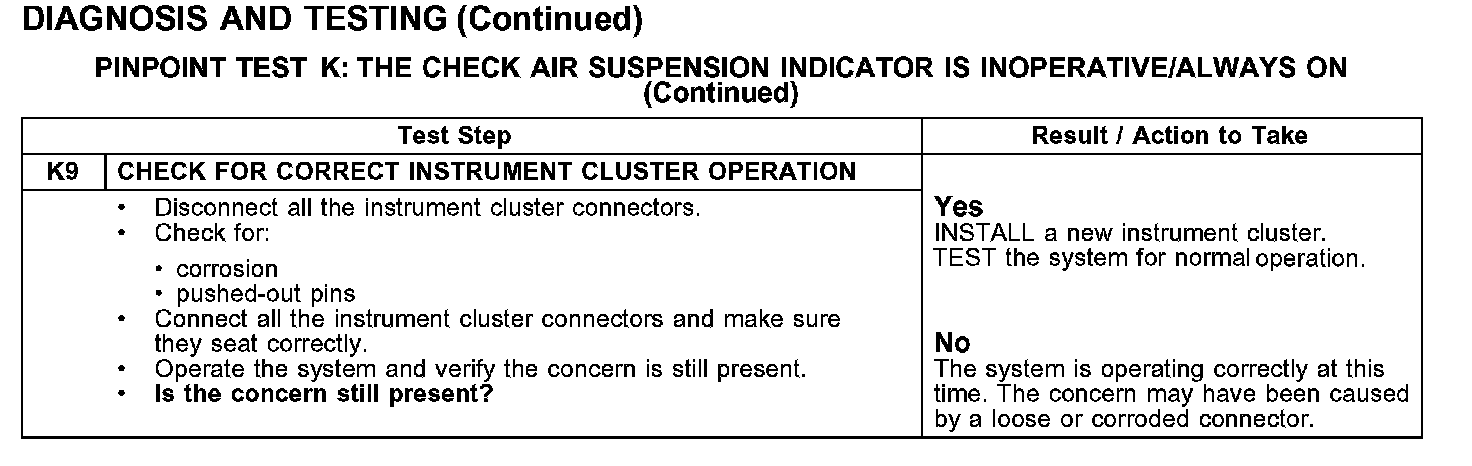

K9:
