Test H: The Brake Warning Indicator Is Never/Always on
Test H: The Brake Warning Indicator Is Never/Always on
PINPOINT TEST H: THE BRAKE WARNING INDICATOR IS NEVER/ALWAYS ON

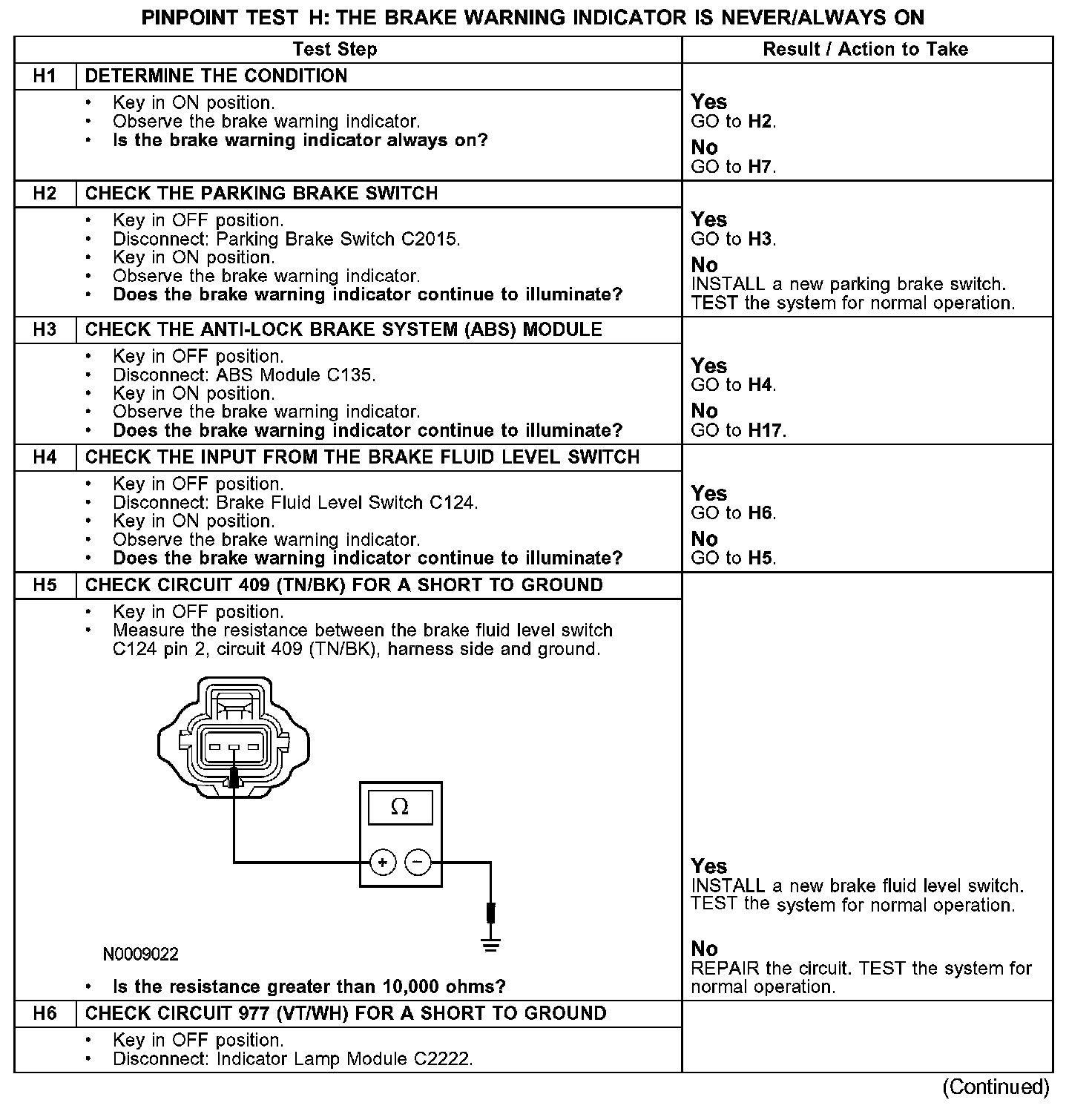

H1-H6:

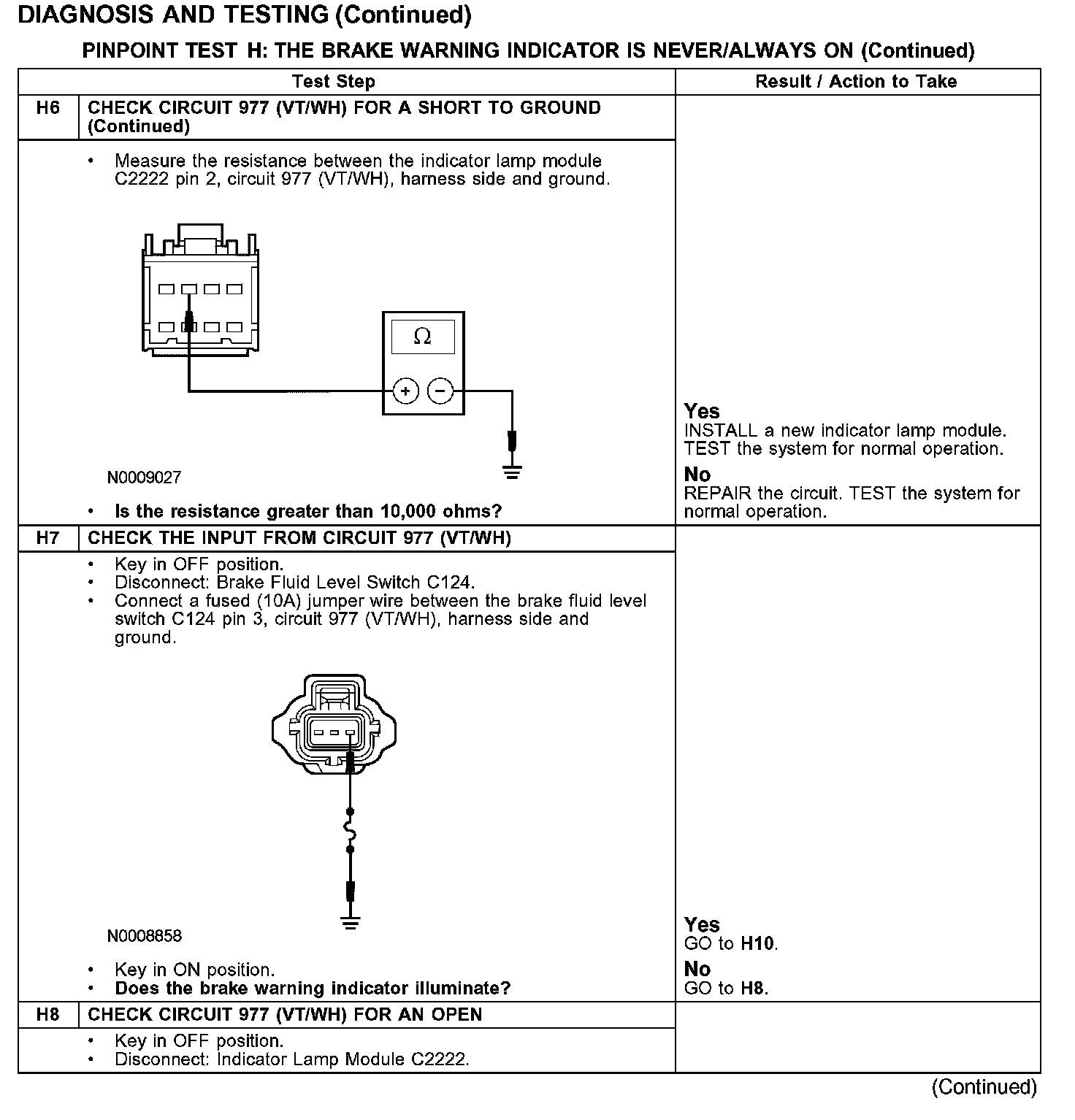

H6-H8:

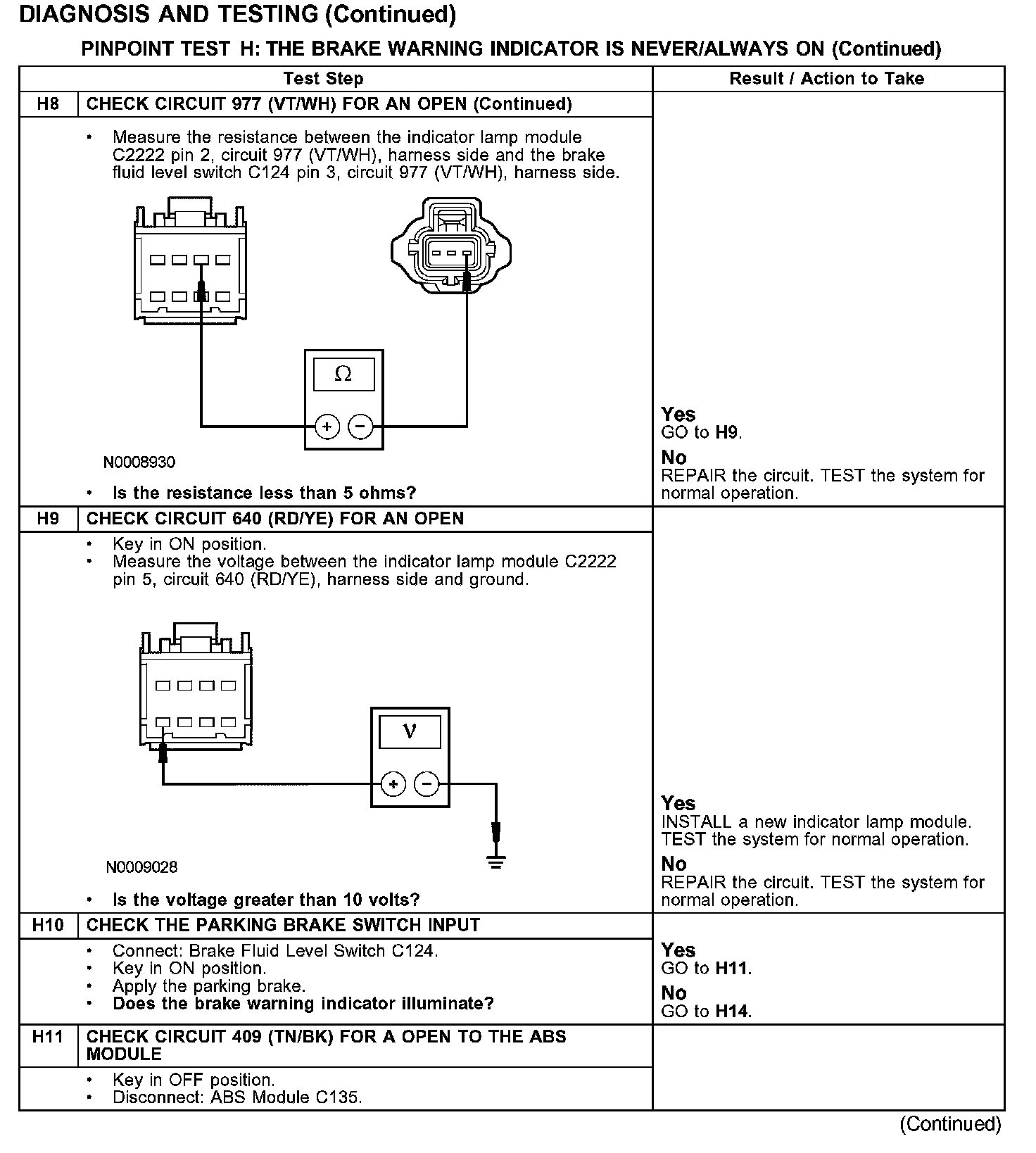

H8-H11:

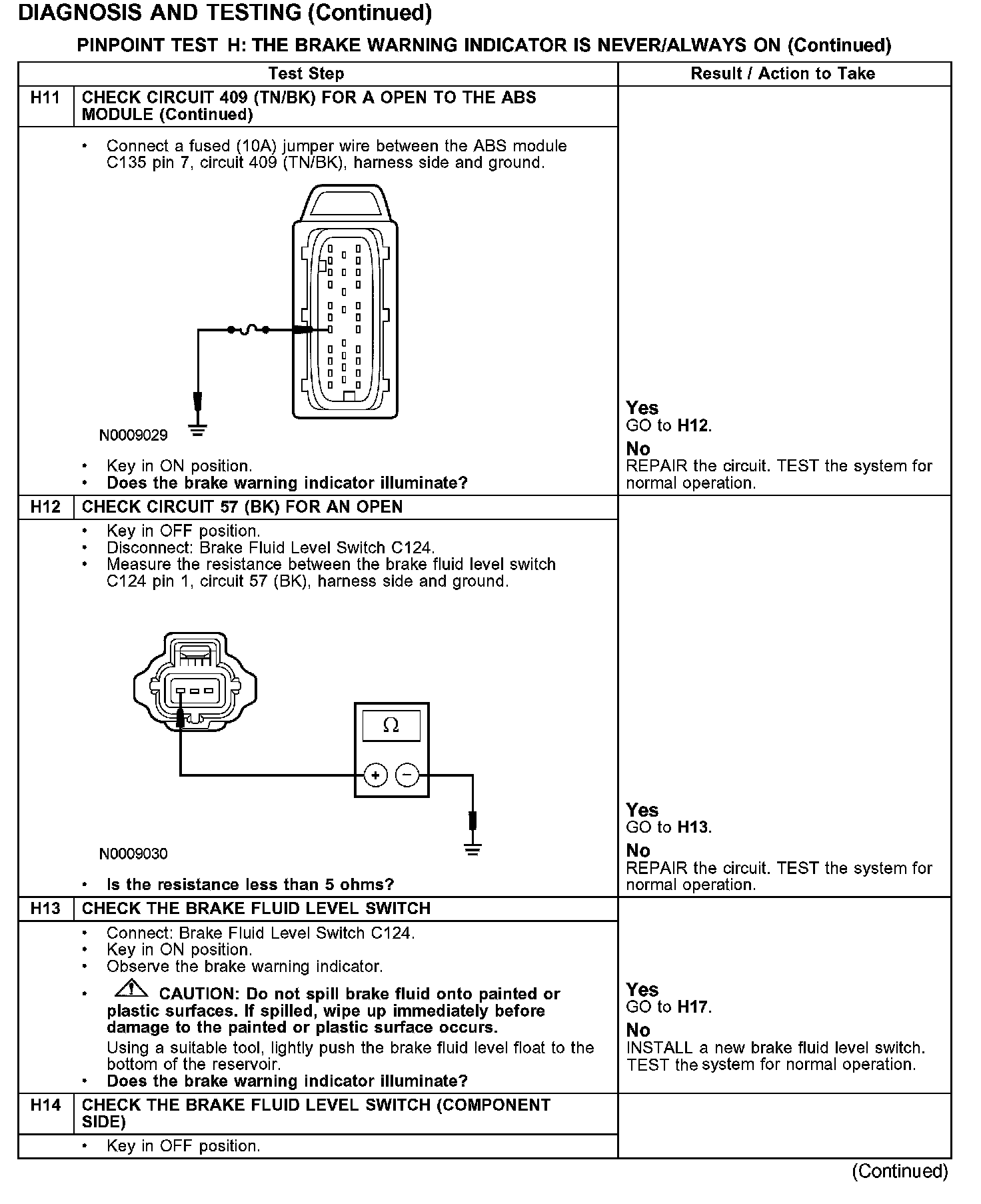

H11-H14:

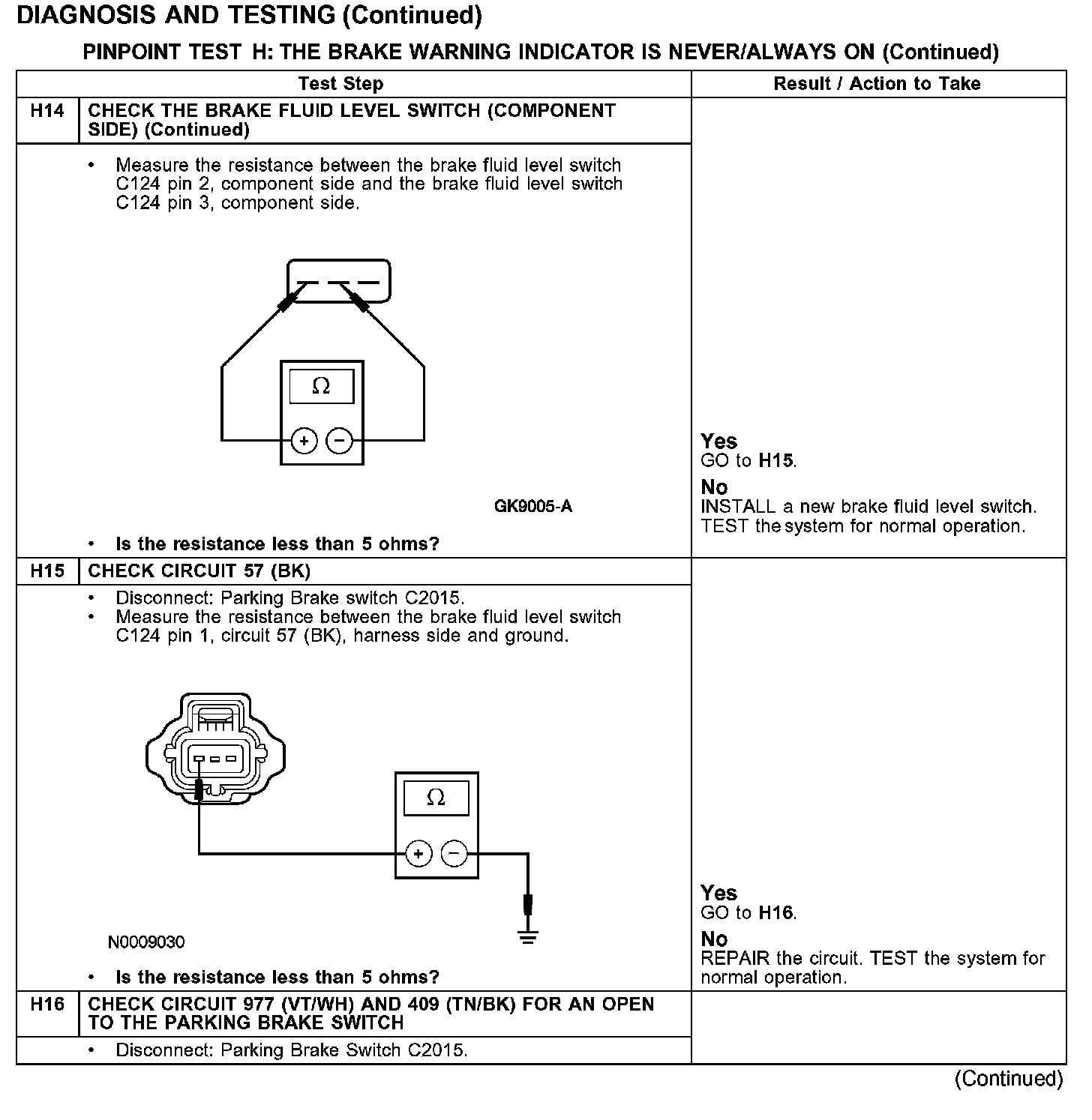

H14-H16:

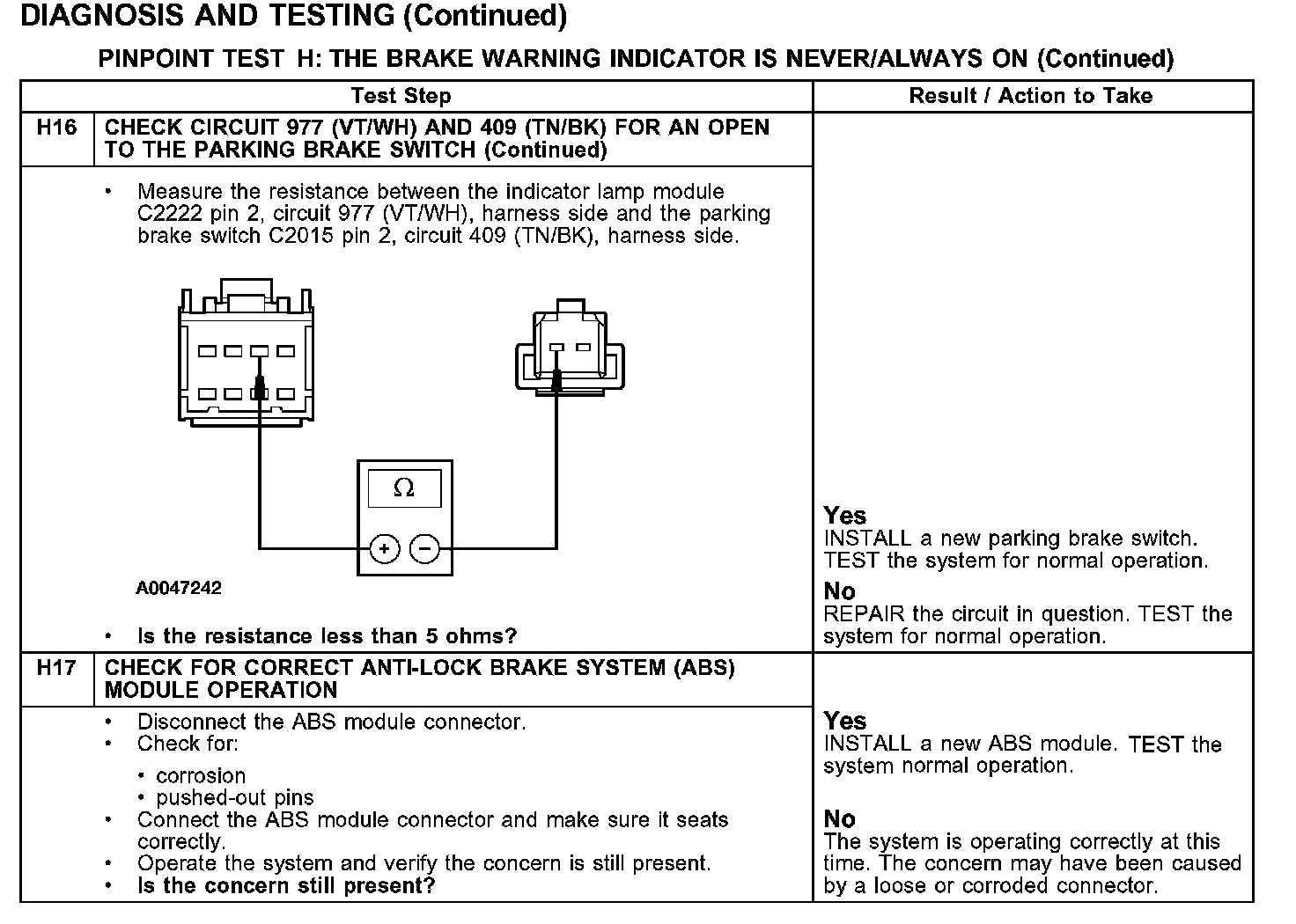

H16-H17:
