Test F: The Safety Belt Warning Indicator Is Inoperative (Chime Is Operative)
Test F: The Safety Belt Warning Indicator Is Inoperative (Chime Is Operative)
PINPOINT TEST F: THE SAFETY BELT WARNING INDICATOR IS INOPERATIVE (CHIME IS OPERATIVE)

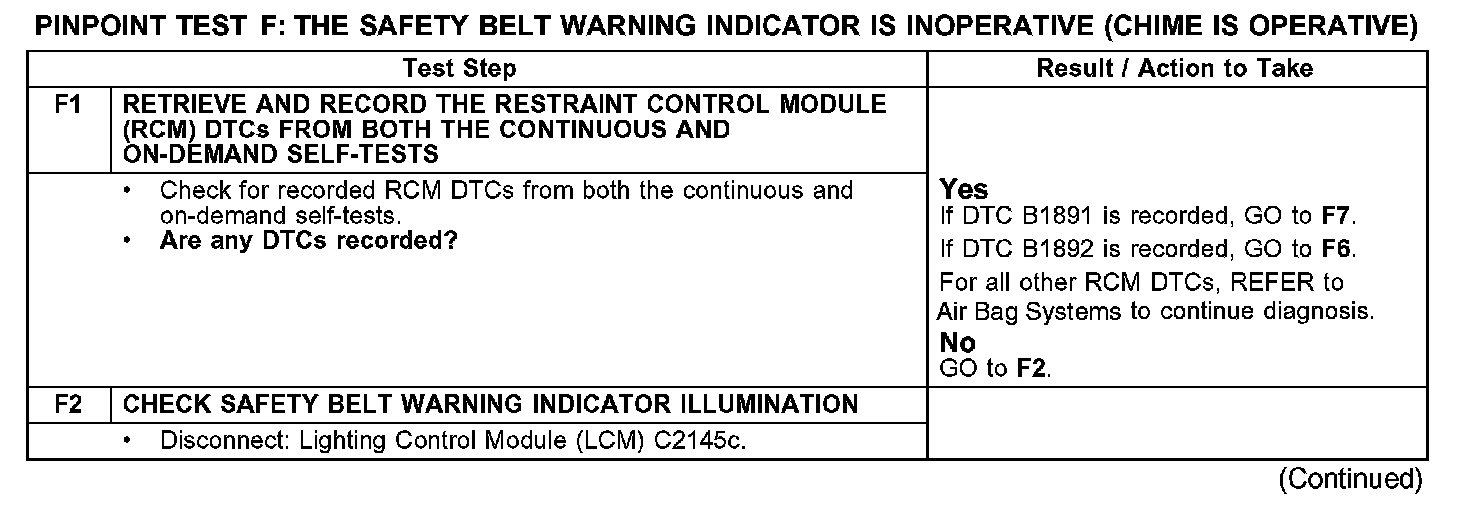

F1-F2:

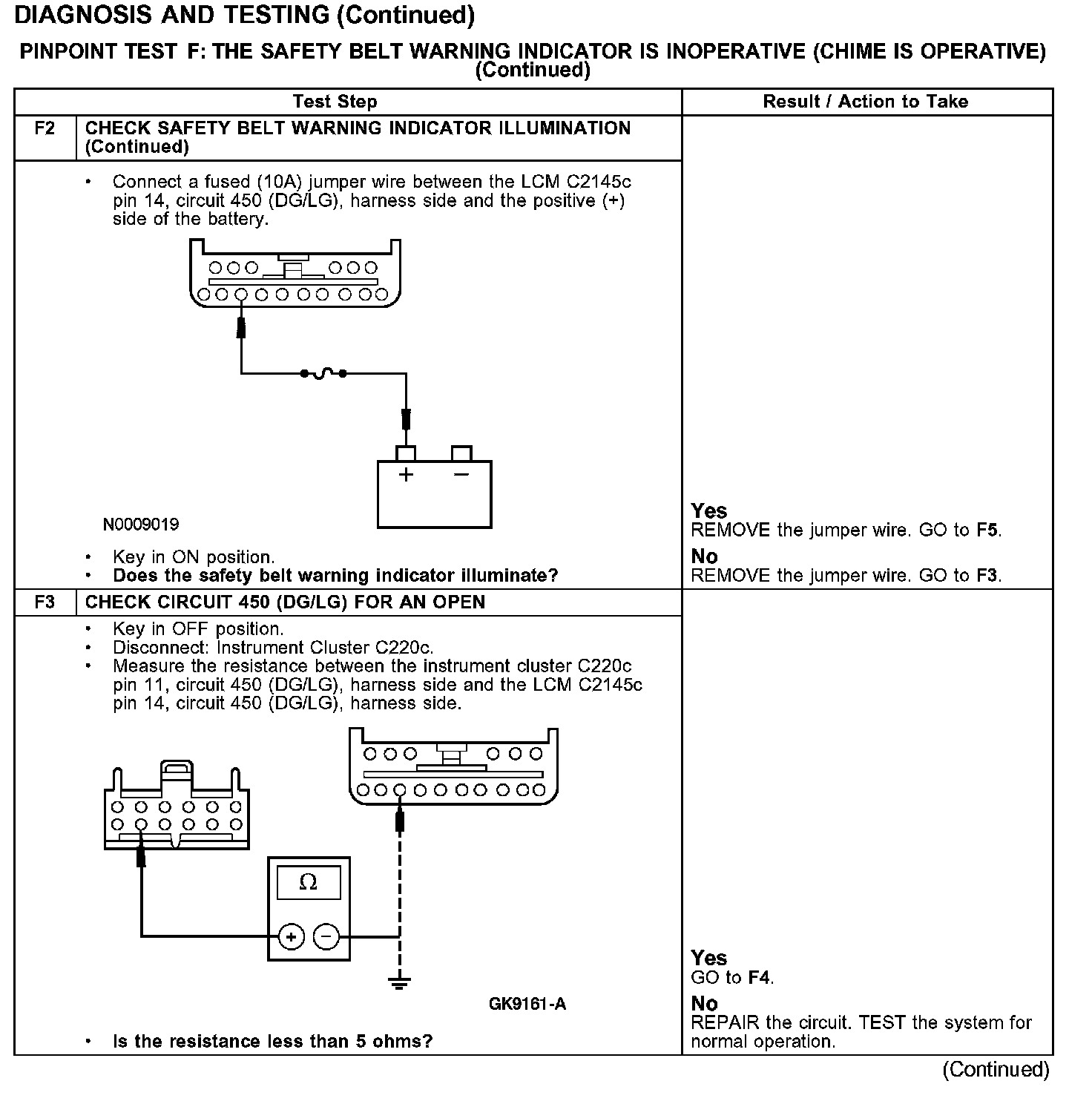

F2-F3:

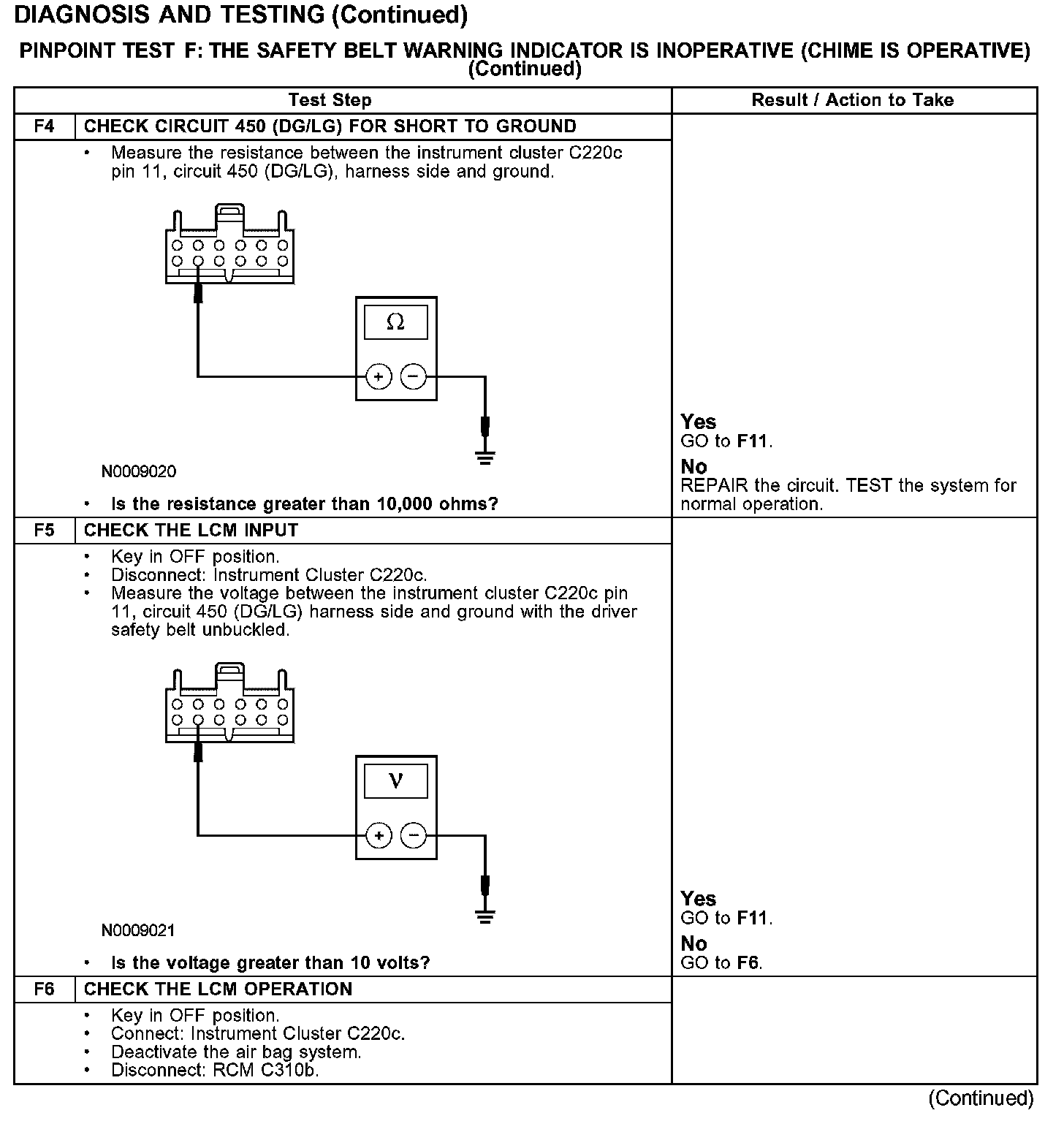

F4-F6:

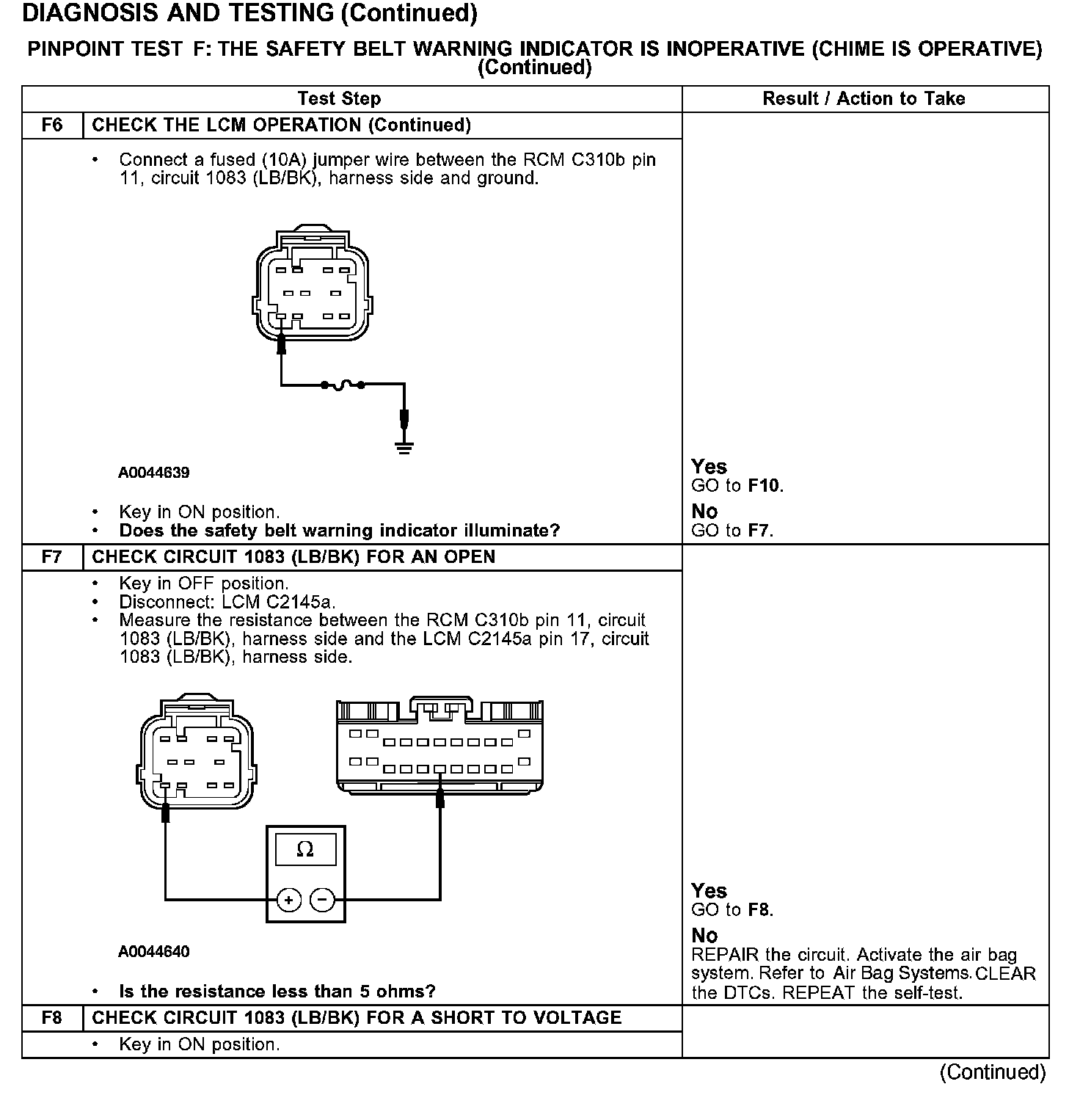

F6-F8:

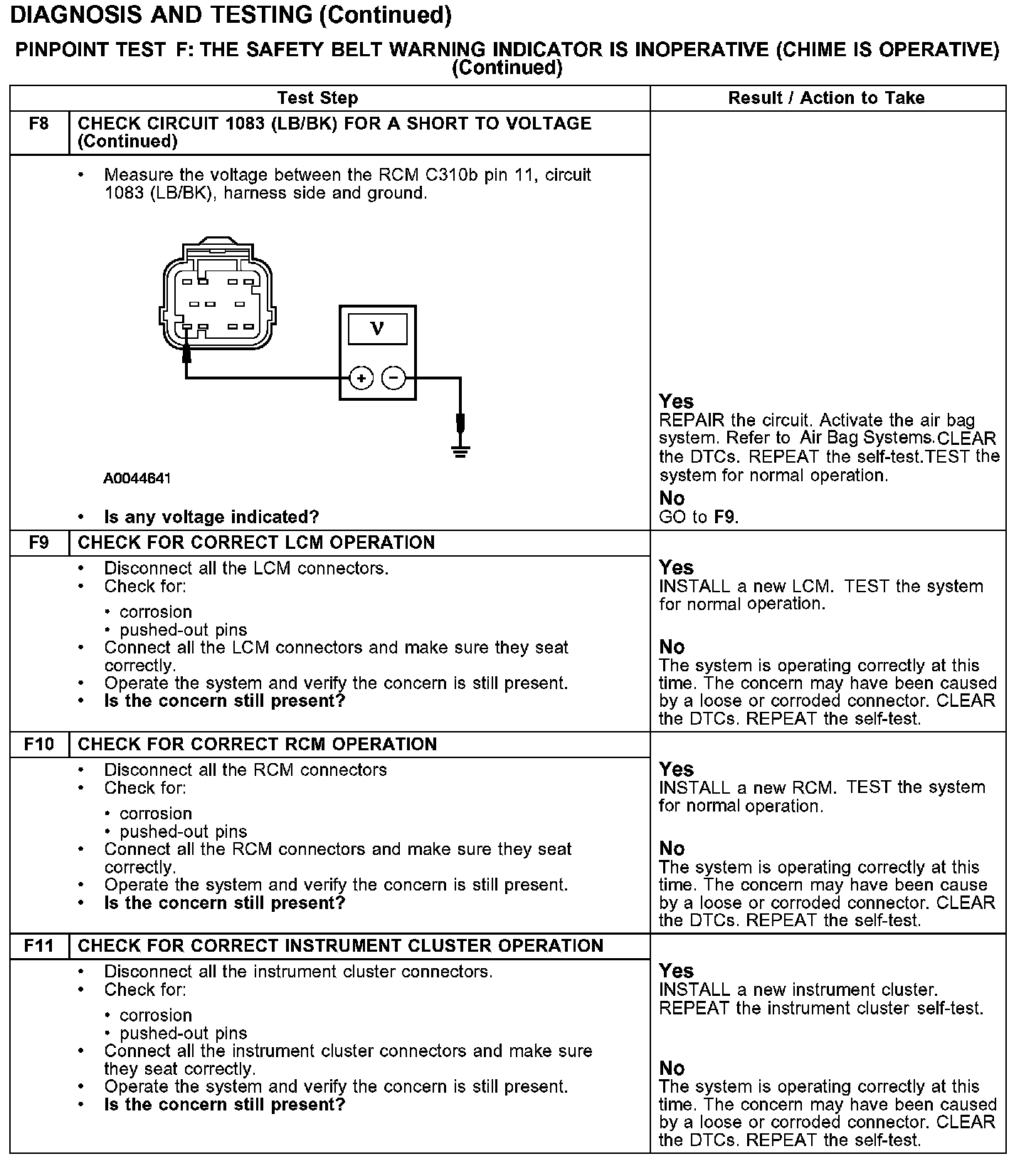

F8-F11:
