Test E: The Speedometer/Odometer Is Inoperative

PINPOINT TEST E: THE SPEEDOMETER/ODOMETER IS INOPERATIVE

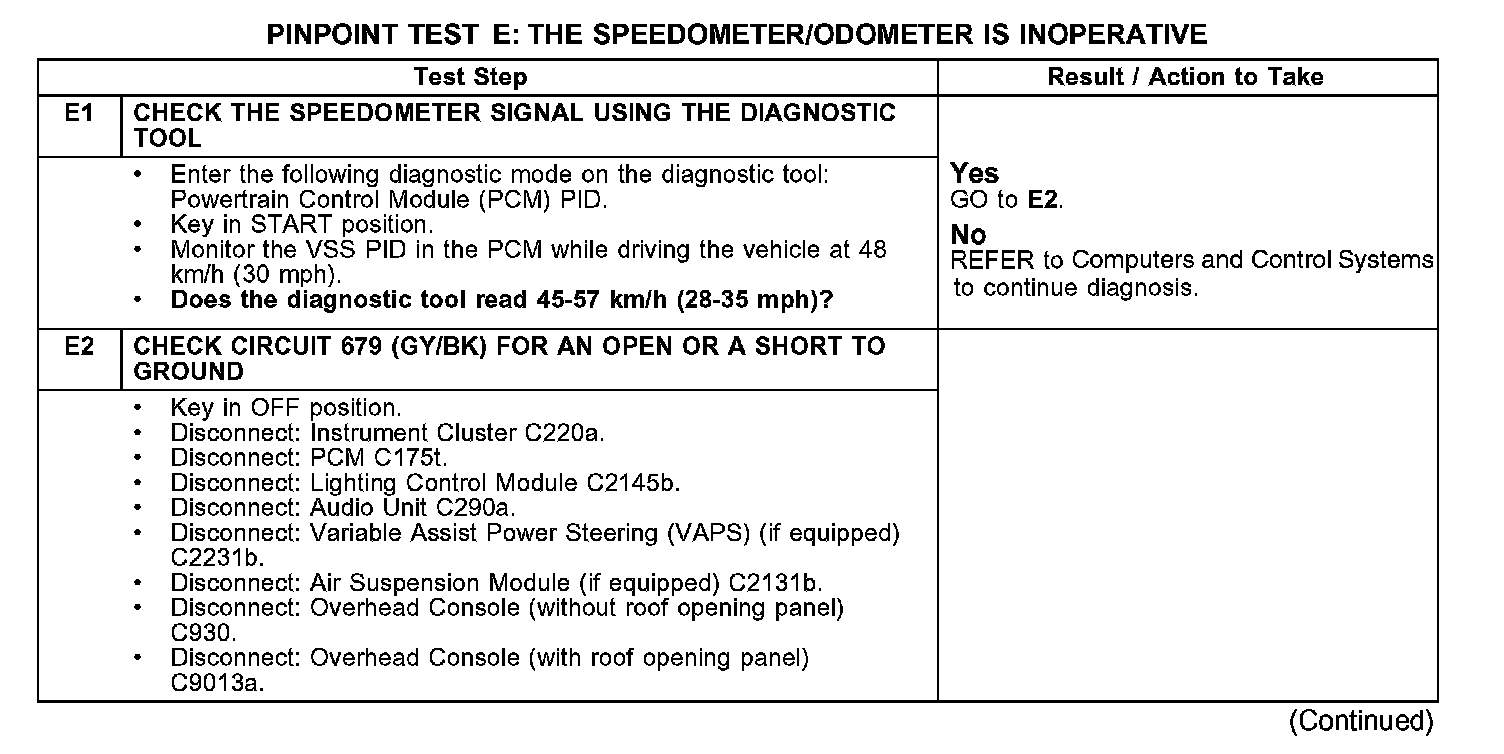

E1-E2:

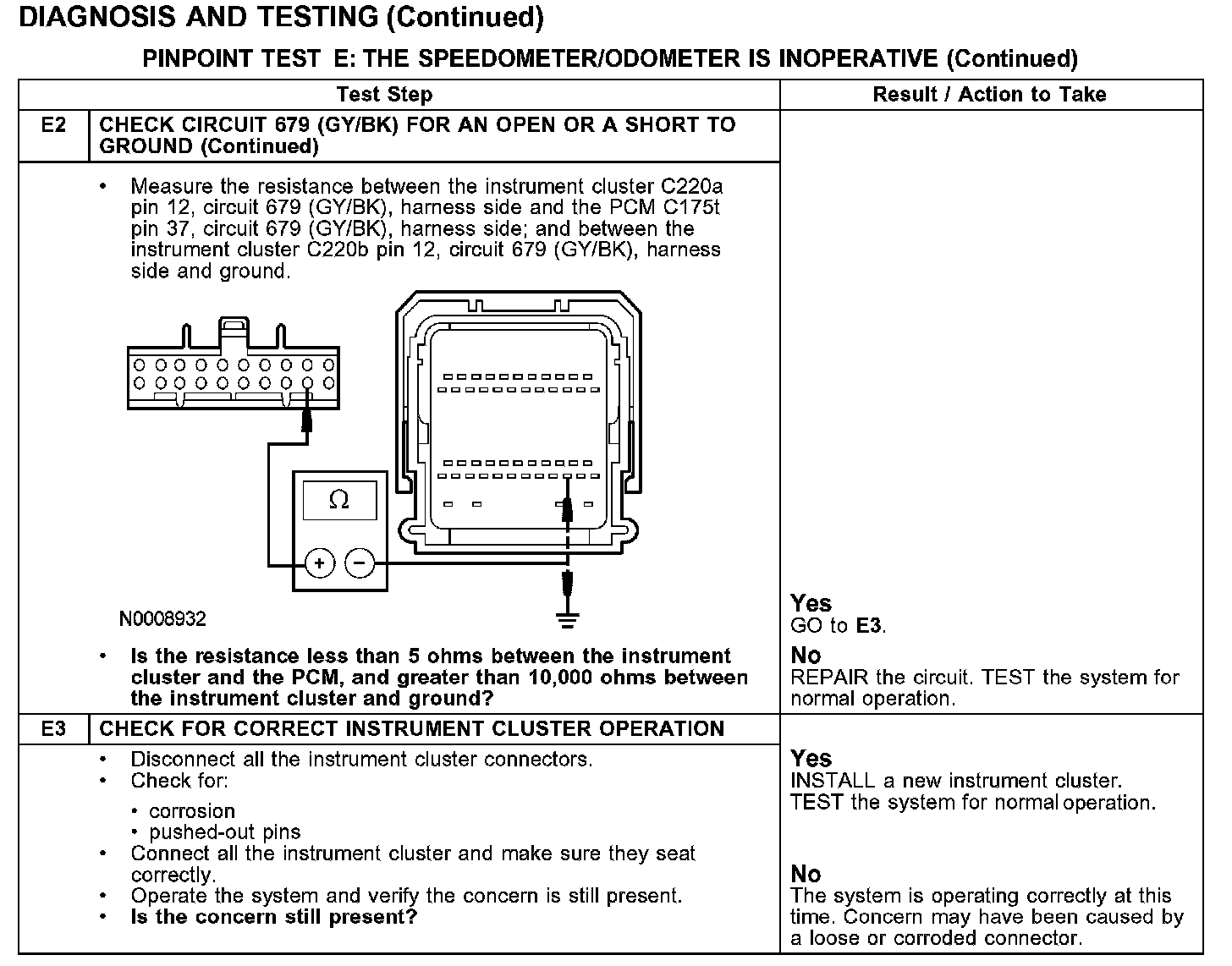

E2-E3:
