FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2005
>>
Grand Marquis V8-4.6L SOHC VIN W
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Electronic Cluster
>>
Test C: The Low Oil Pressure Warning Indicator Is Never/Always on
Test C: The Low Oil Pressure Warning Indicator Is Never/Always on
PINPOINT TEST C: THE LOW OIL PRESSURE WARNING INDICATOR IS NEVER/ALWAYS ON

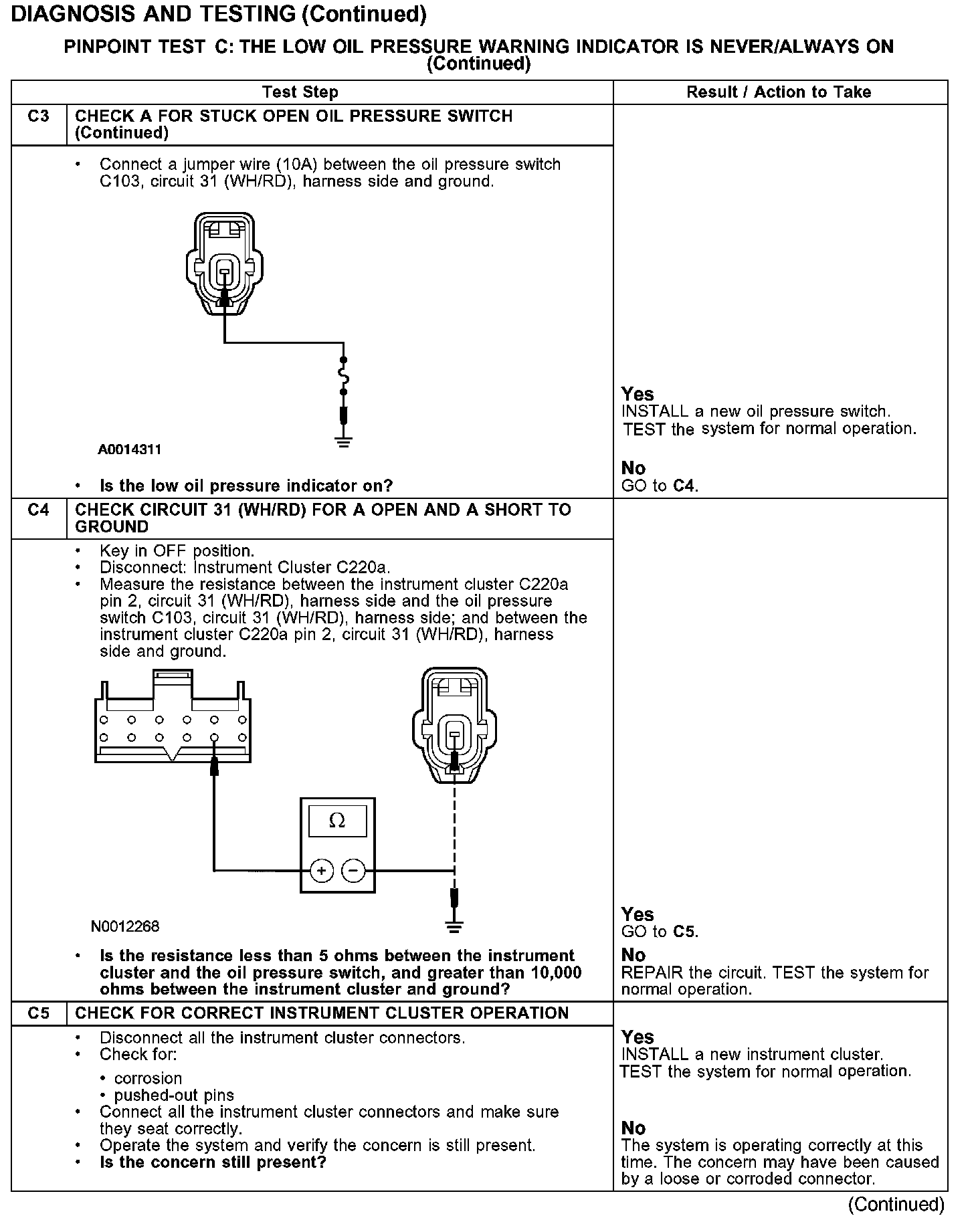

C1-C3:
C3-C5:

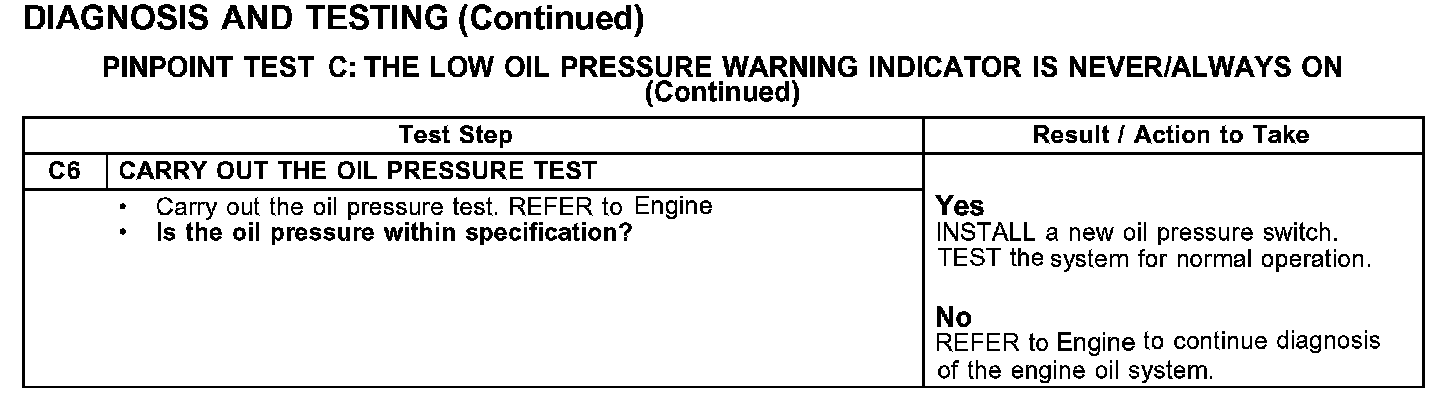

C6:
