Test A: Incorrect Fuel Gauge Indication

PINPOINT TEST A: INCORRECT FUEL GAUGE INDICATION

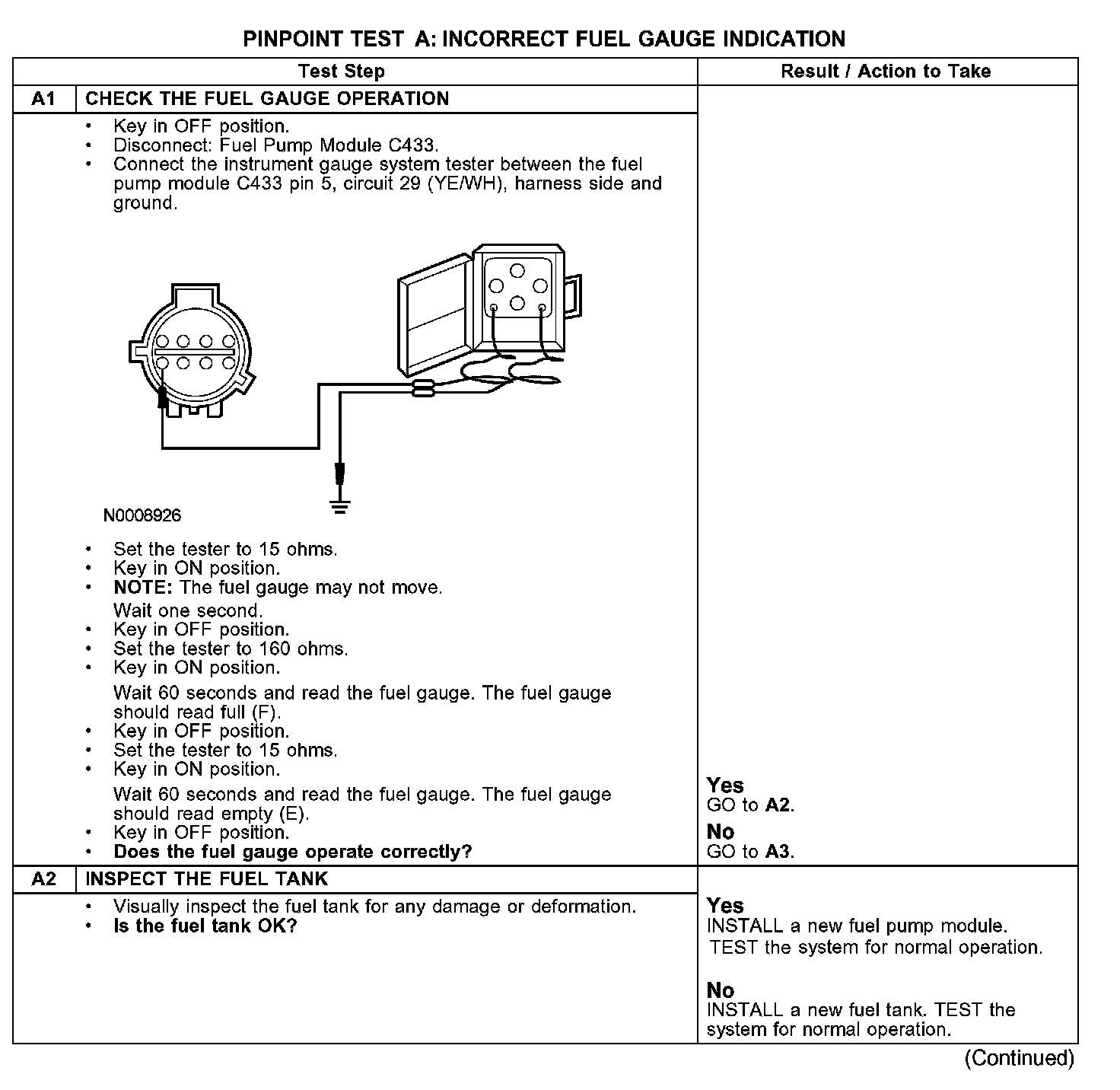

A1-A2:

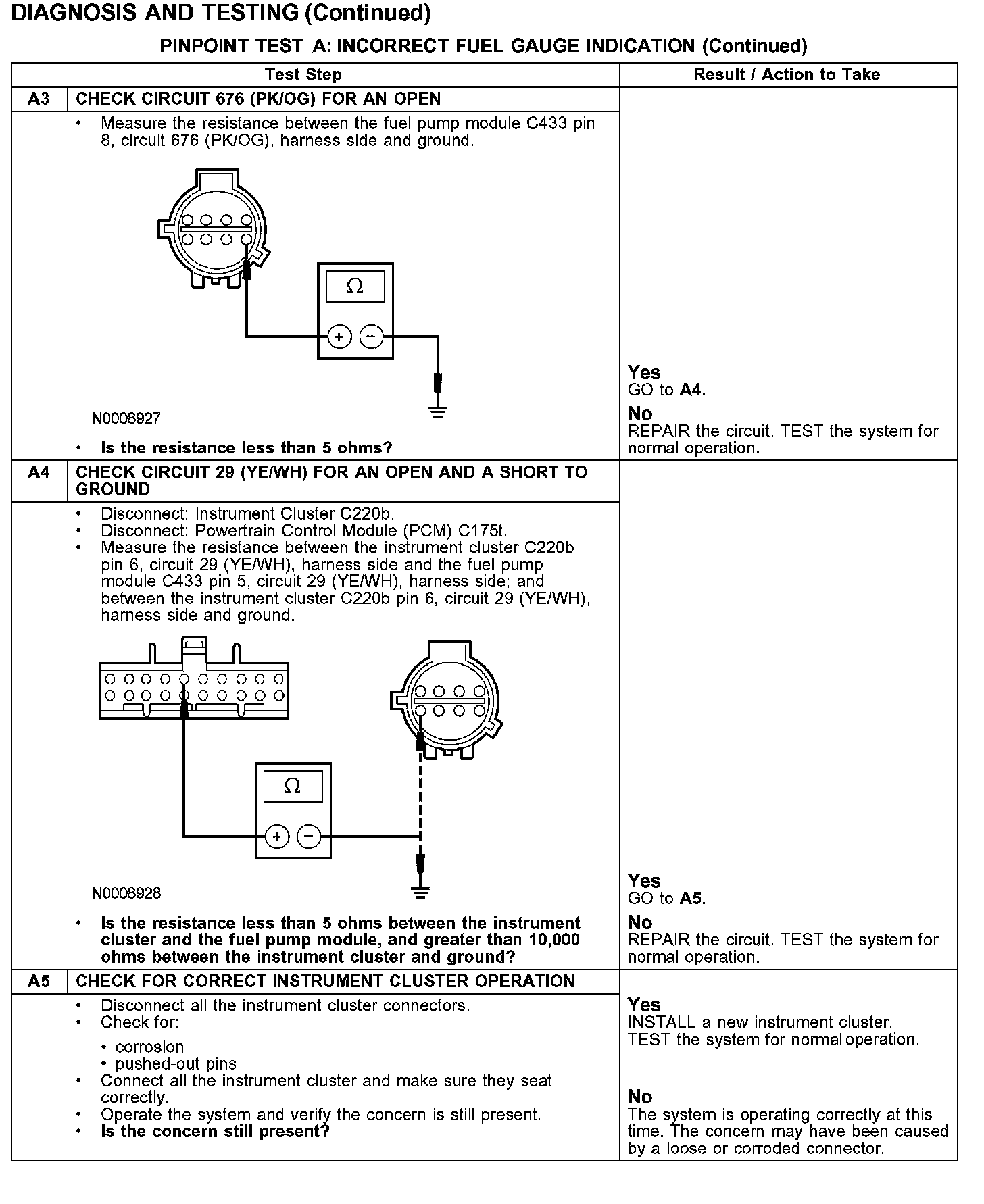

A3-A5:
