Pinpoint Tests - Conventional Cluster - Instrument Cluster
>>
Test U: The Electronic Throttle Control (ETC) Indicator Is Never/Always on
Test U: The Electronic Throttle Control (ETC) Indicator Is Never/Always on
PINPOINT TEST U: THE ELECTRONIC THROTTLE CONTROL (ETC) INDICATOR IS NEVER/ALWAYS ON

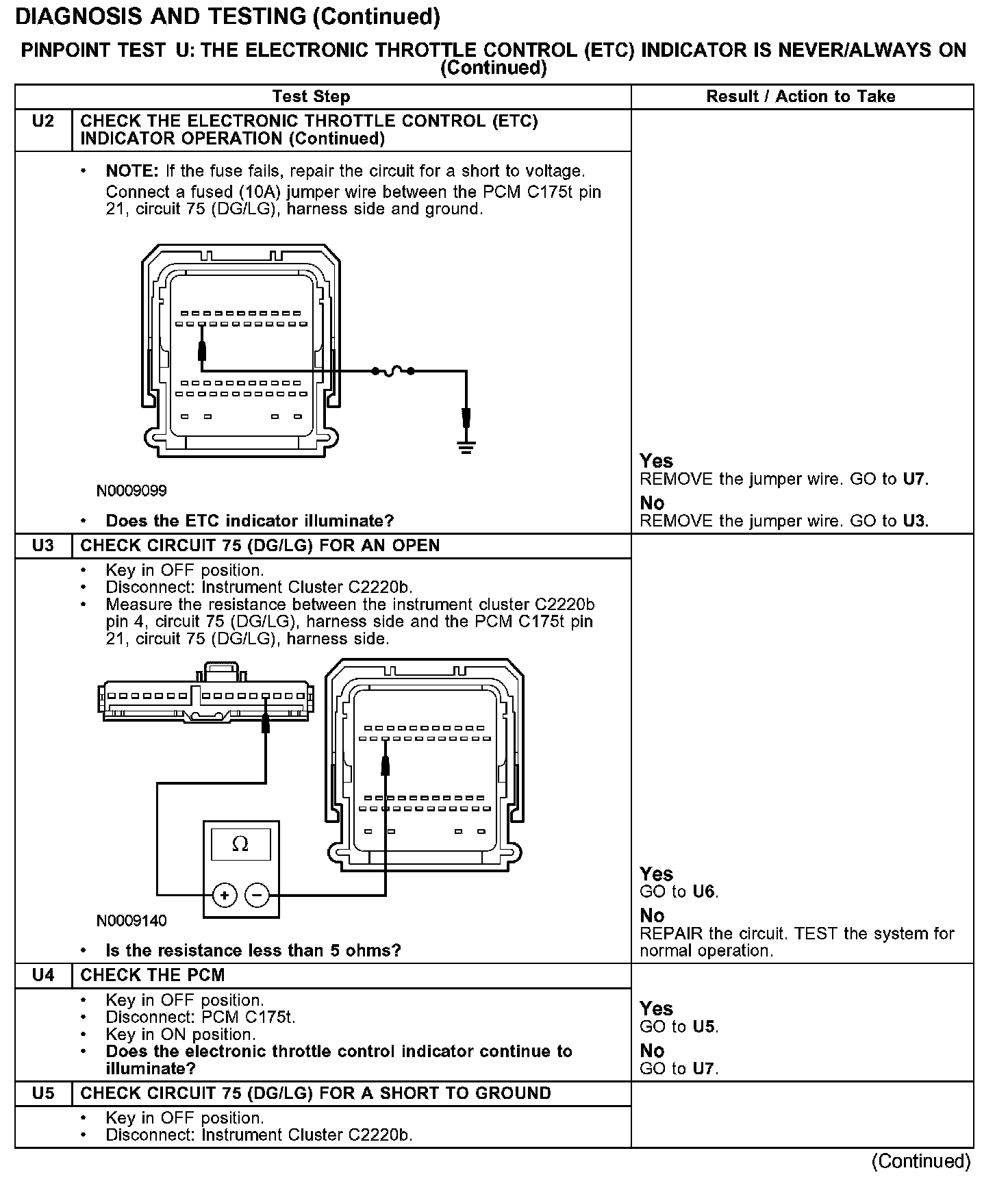

U1-U2:
U2-U5:

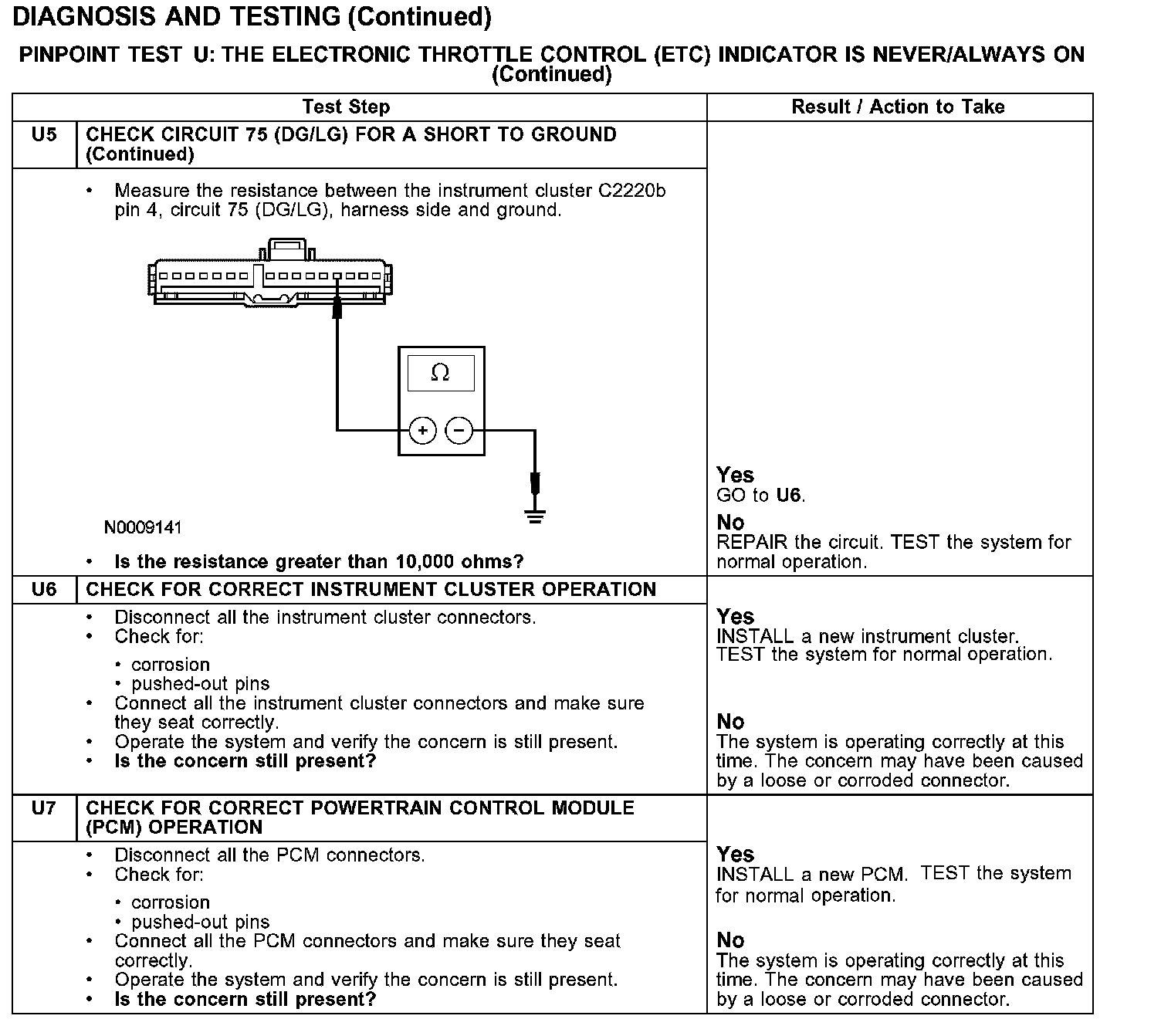

U5-U7:
