Test T: The Instrument Cluster Is Inoperative

PINPOINT TEST T: THE INSTRUMENT CLUSTER IS INOPERATIVE

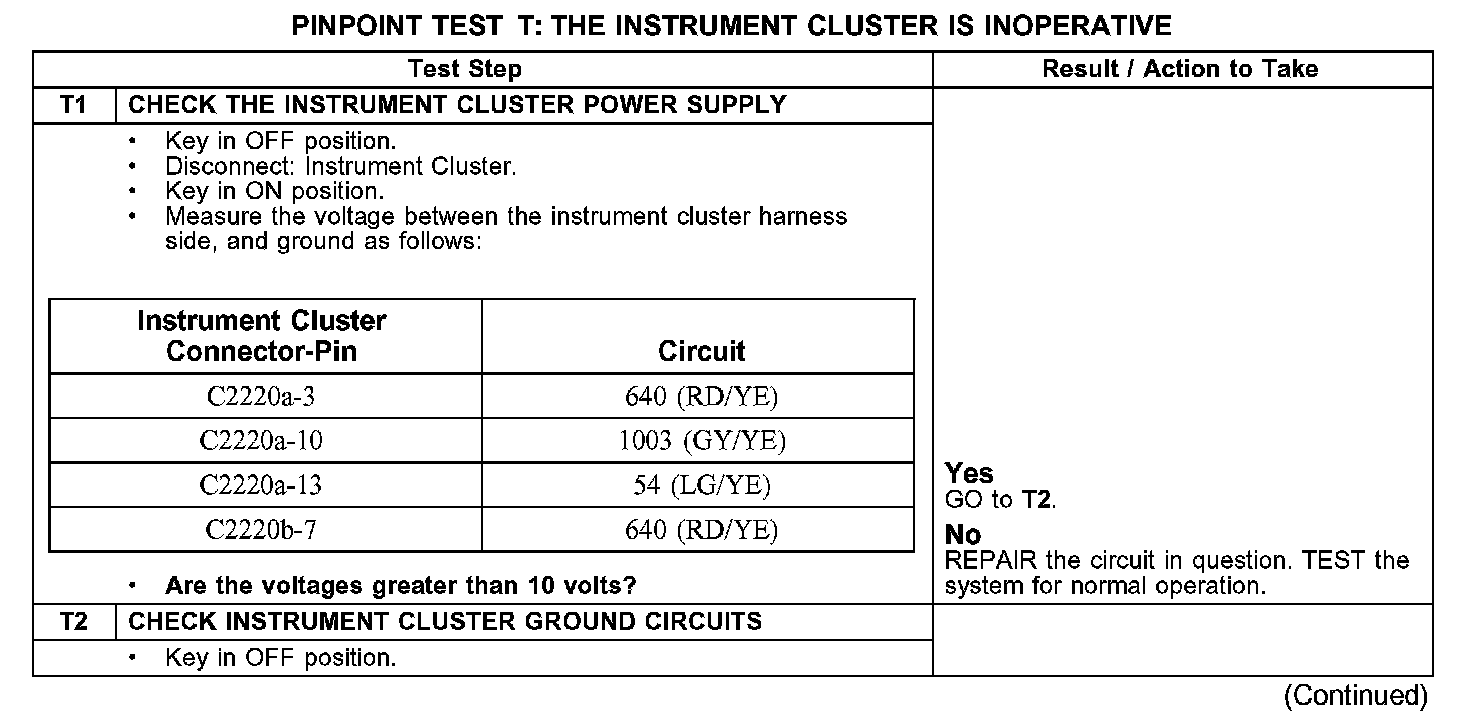

T1-T2:

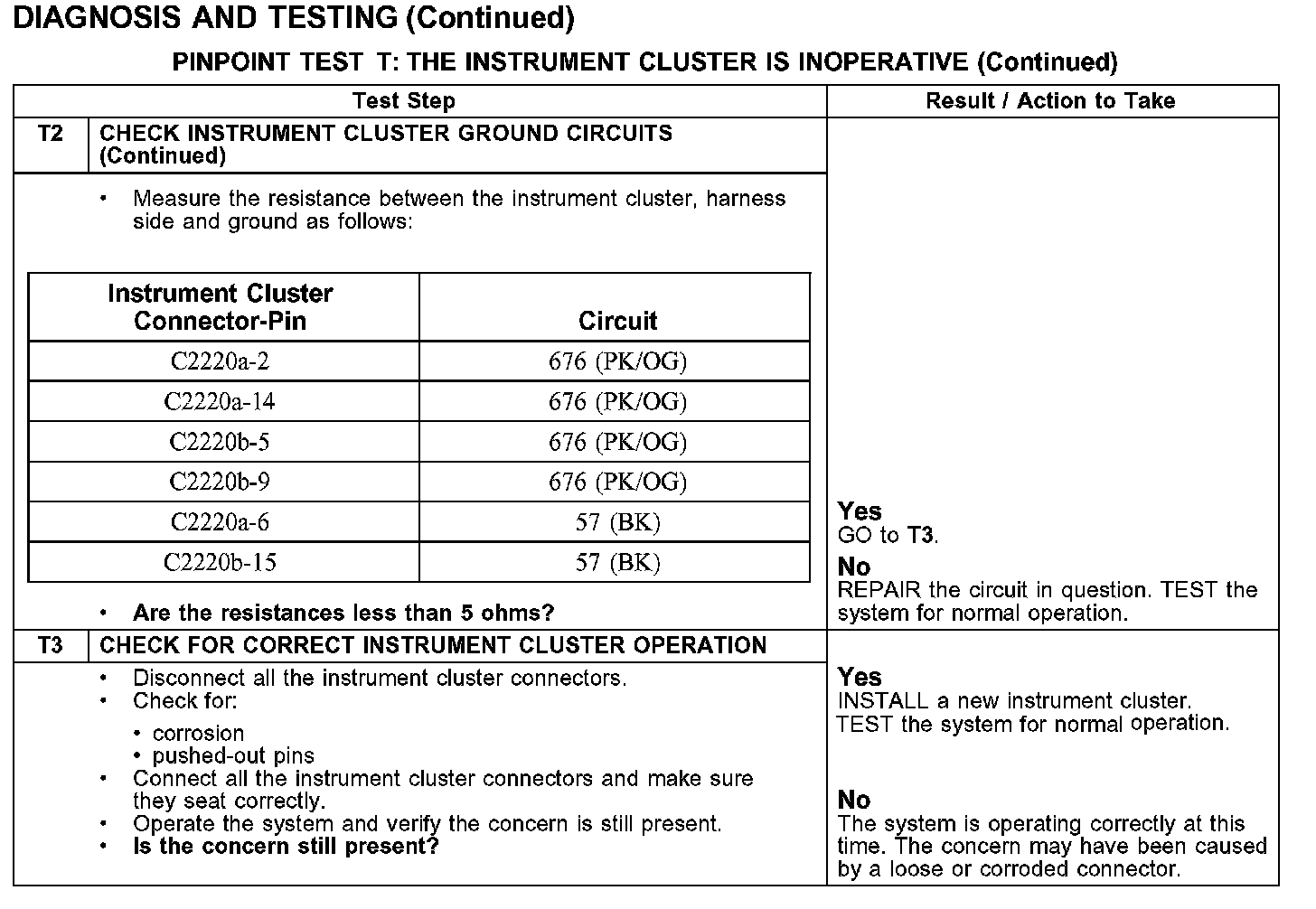

T2-T3:
