Test S: The Air Bag Warning Indicator Is Never on
Test S: The Air Bag Warning Indicator Is Never on

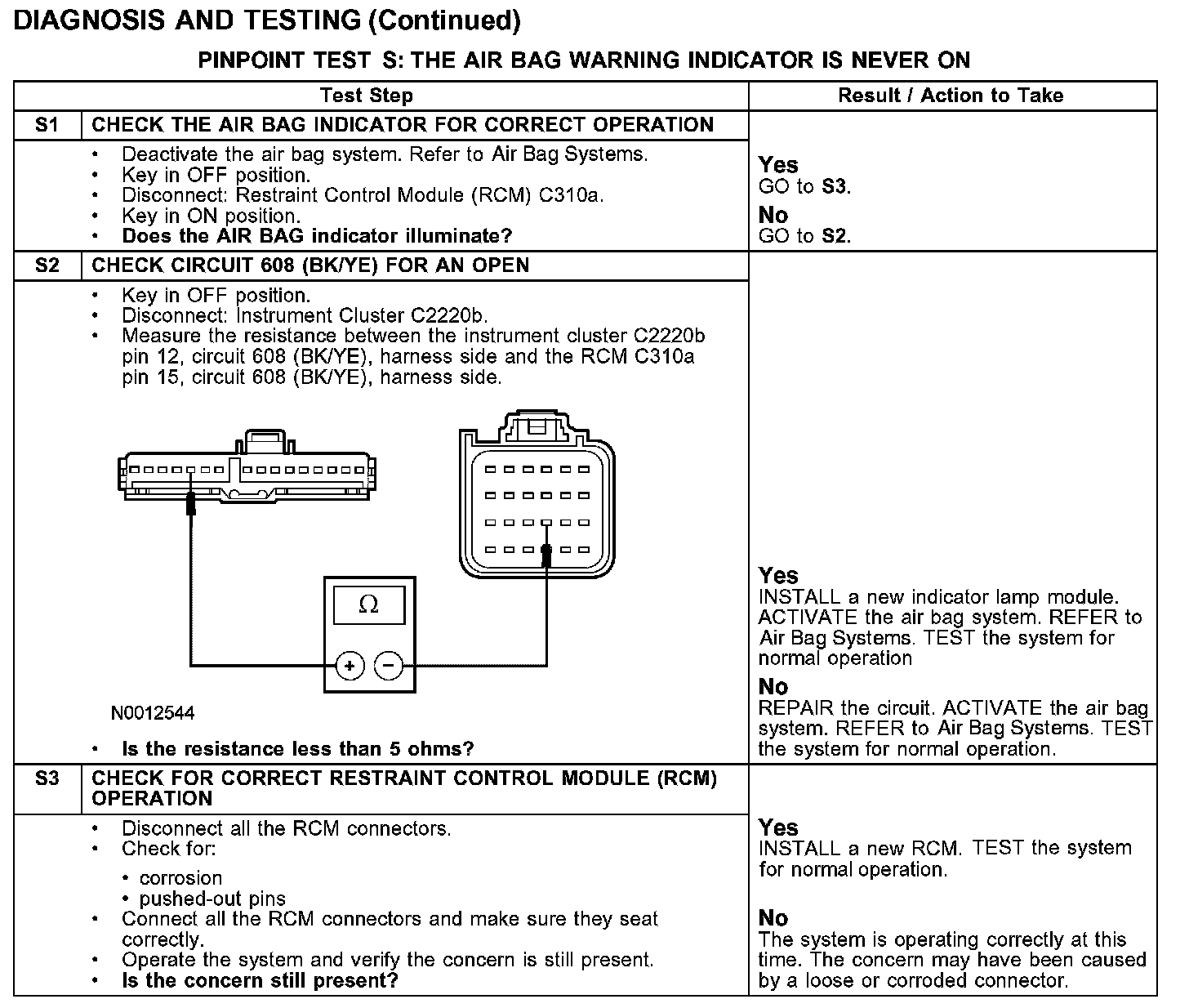

PINPOINT TEST S: THE AIR BAG WARNING INDICATOR IS NEVER ON
S1-S3:
