Test R: The Check Fuel Cap Warning Indicator Is Never/Always on
Test R: The Check Fuel Cap Warning Indicator Is Never/Always on
PINPOINT TEST R: THE CHECK FUEL CAP WARNING INDICATOR IS NEVER/ALWAYS ON

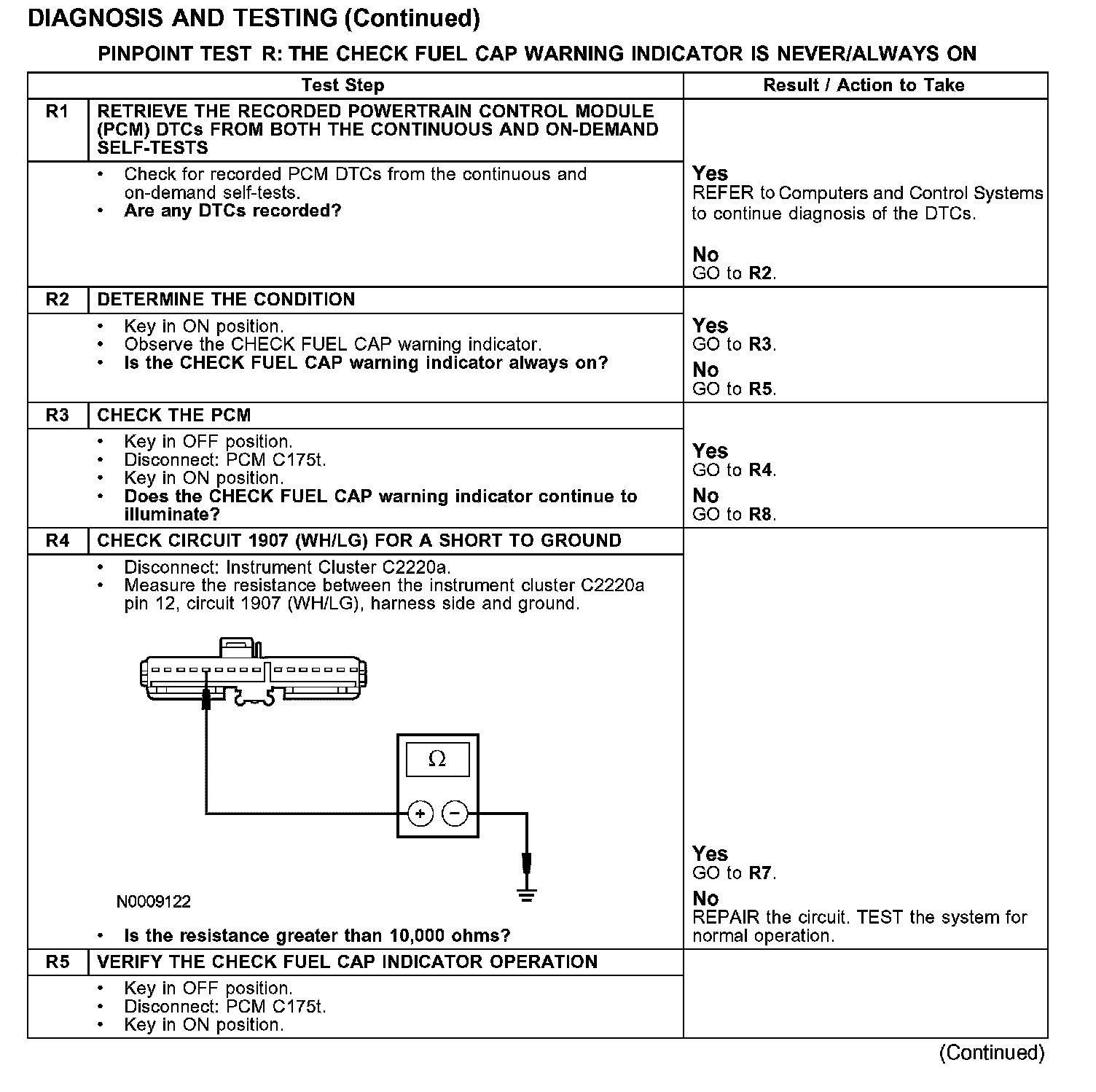

R1-R5:

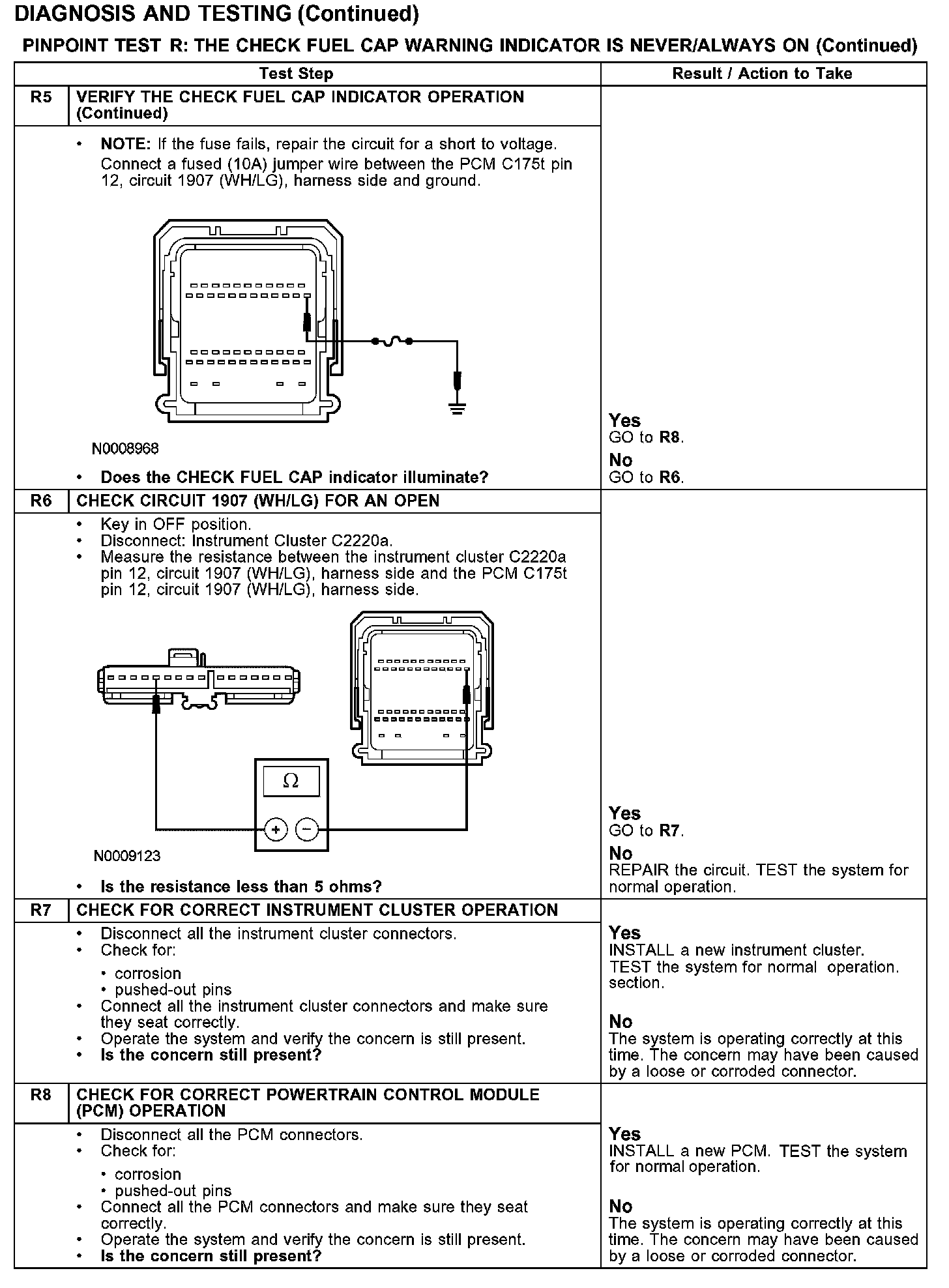

R5-R8:
