Test P: The Anti-Lock Brake System (ABS) Warning Indicator Is Never on
Test P: The Anti-Lock Brake System (ABS) Warning Indicator Is Never on
PINPOINT TEST P: THE ANTI-LOCK BRAKE SYSTEM (ABS) WARNING INDICATOR IS NEVER ON

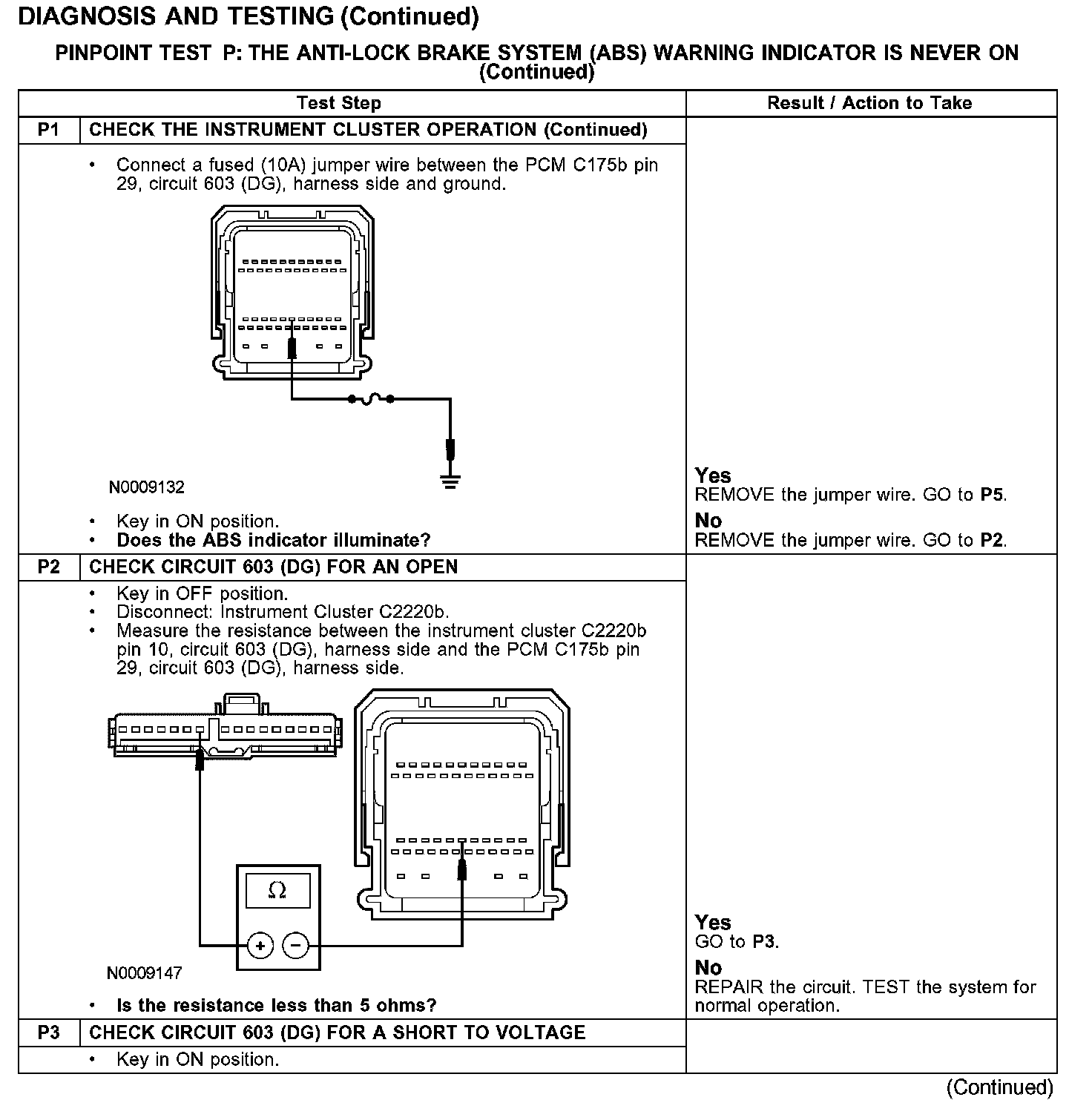

P1:
P1-P3:

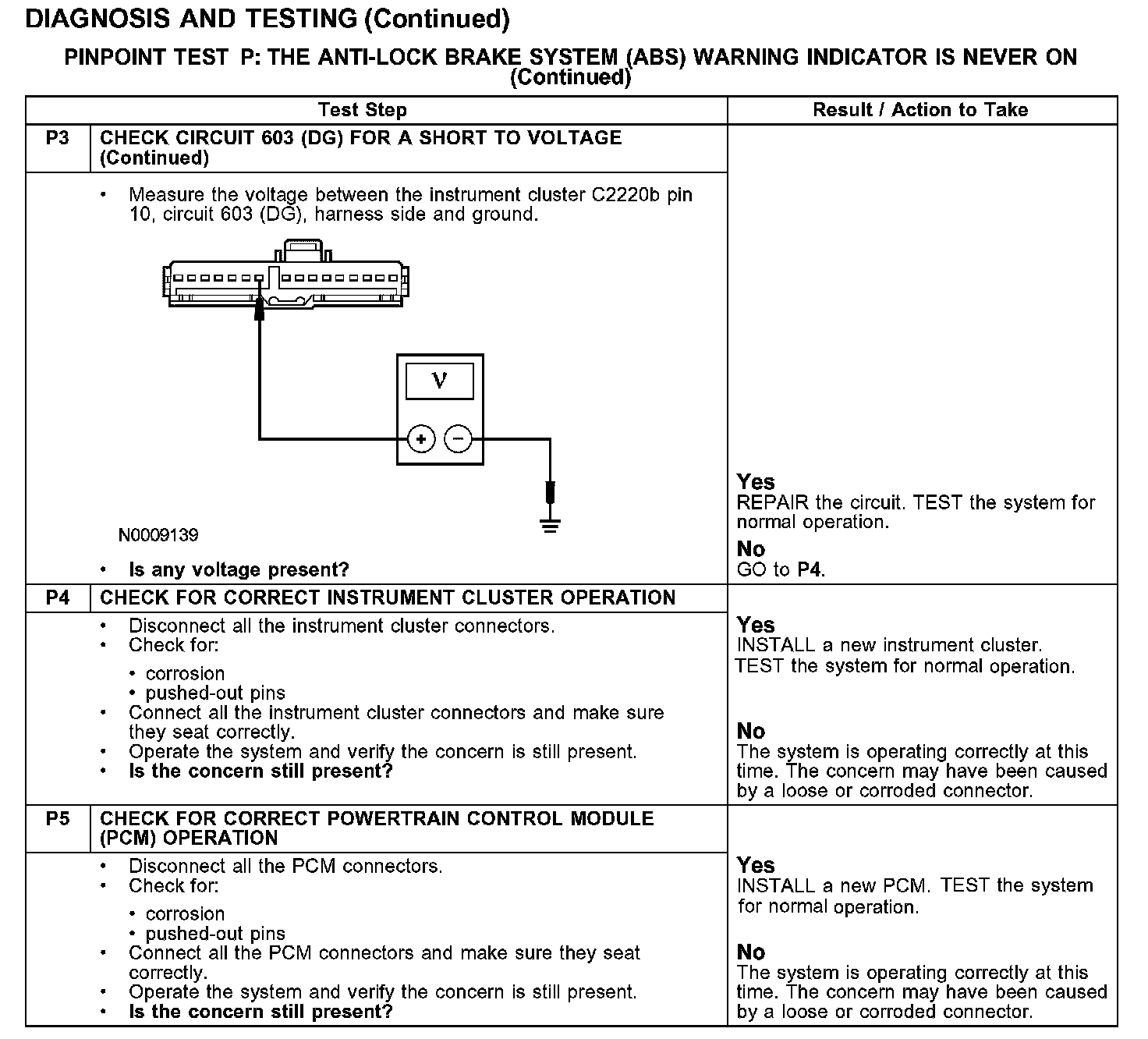

P3-P5:
