Pinpoint Tests - Conventional Cluster - Instrument Cluster
>>
Test O: The Overdrive Off Indicator Is Never/Always on
Test O: The Overdrive Off Indicator Is Never/Always on

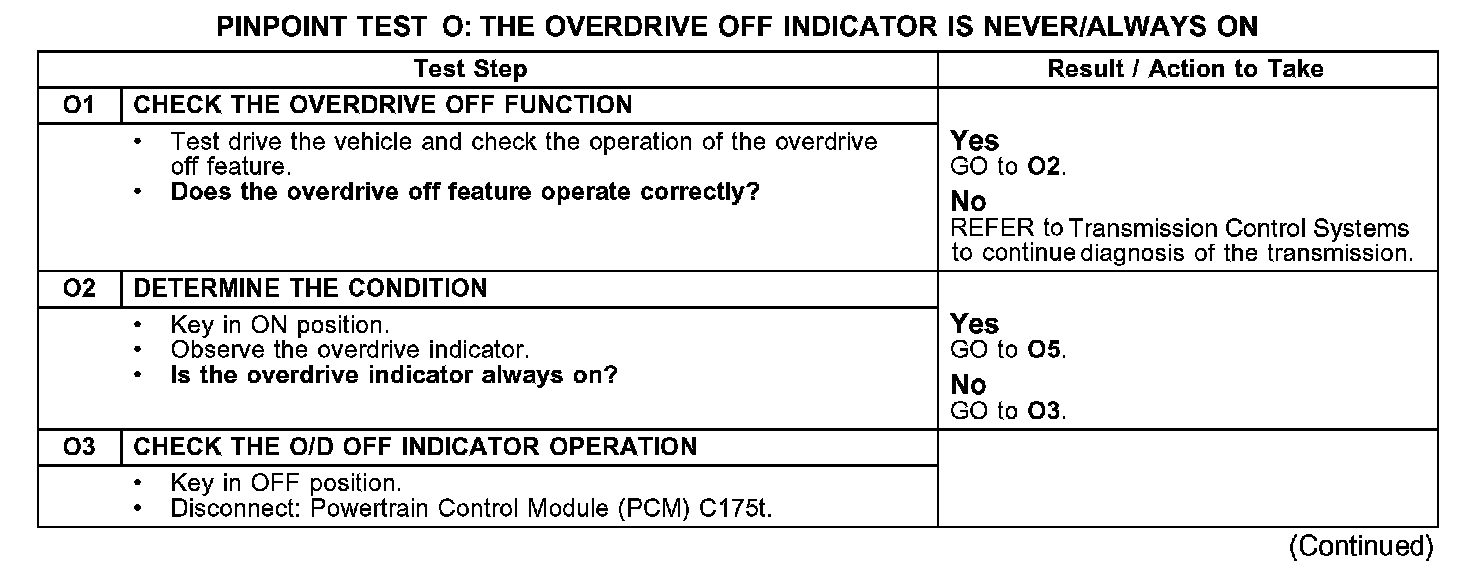

PINPOINT TEST O: THE OVERDRIVE OFF INDICATOR IS NEVER/ALWAYS ON
O1-O3:

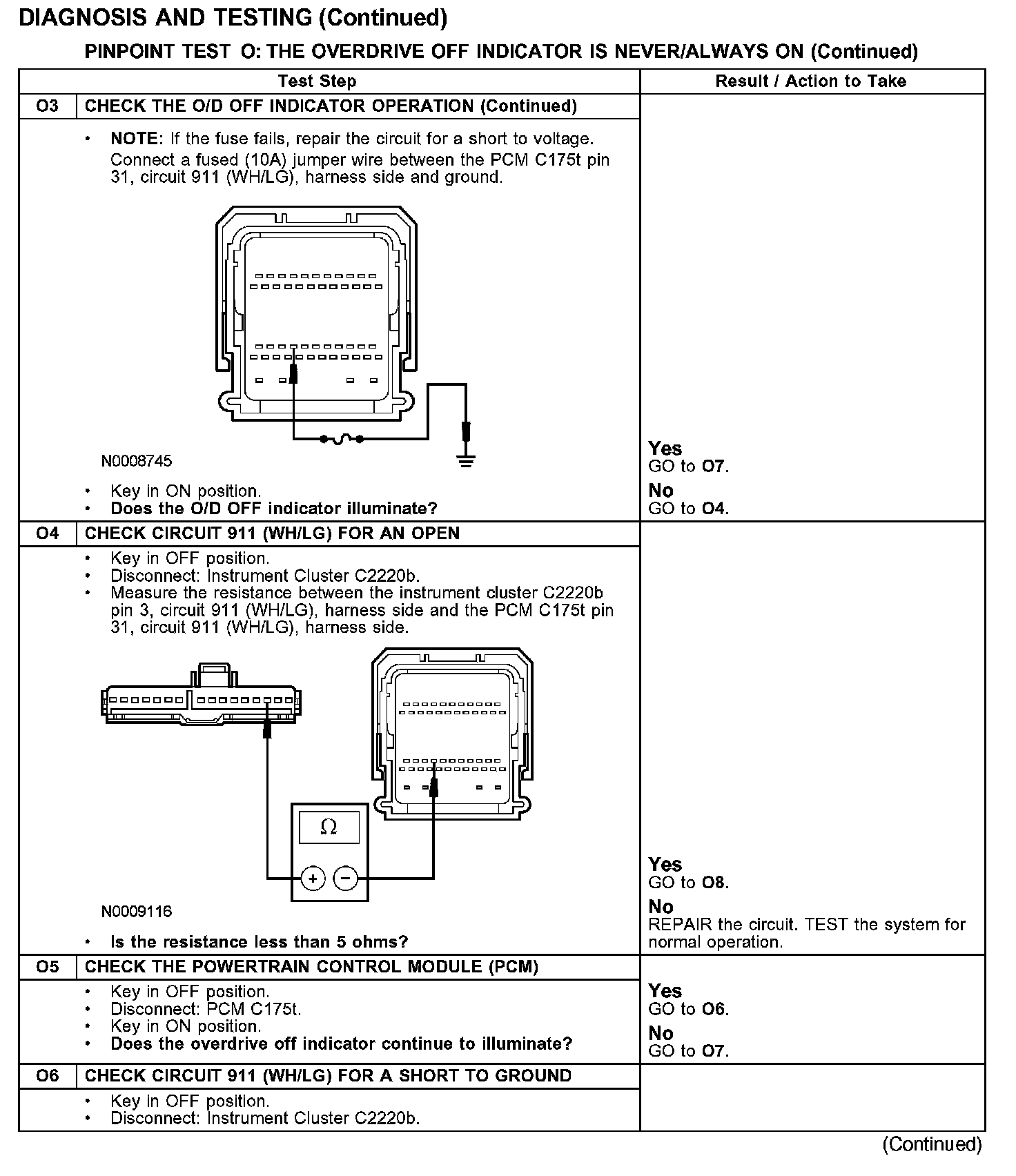

O3-O6:

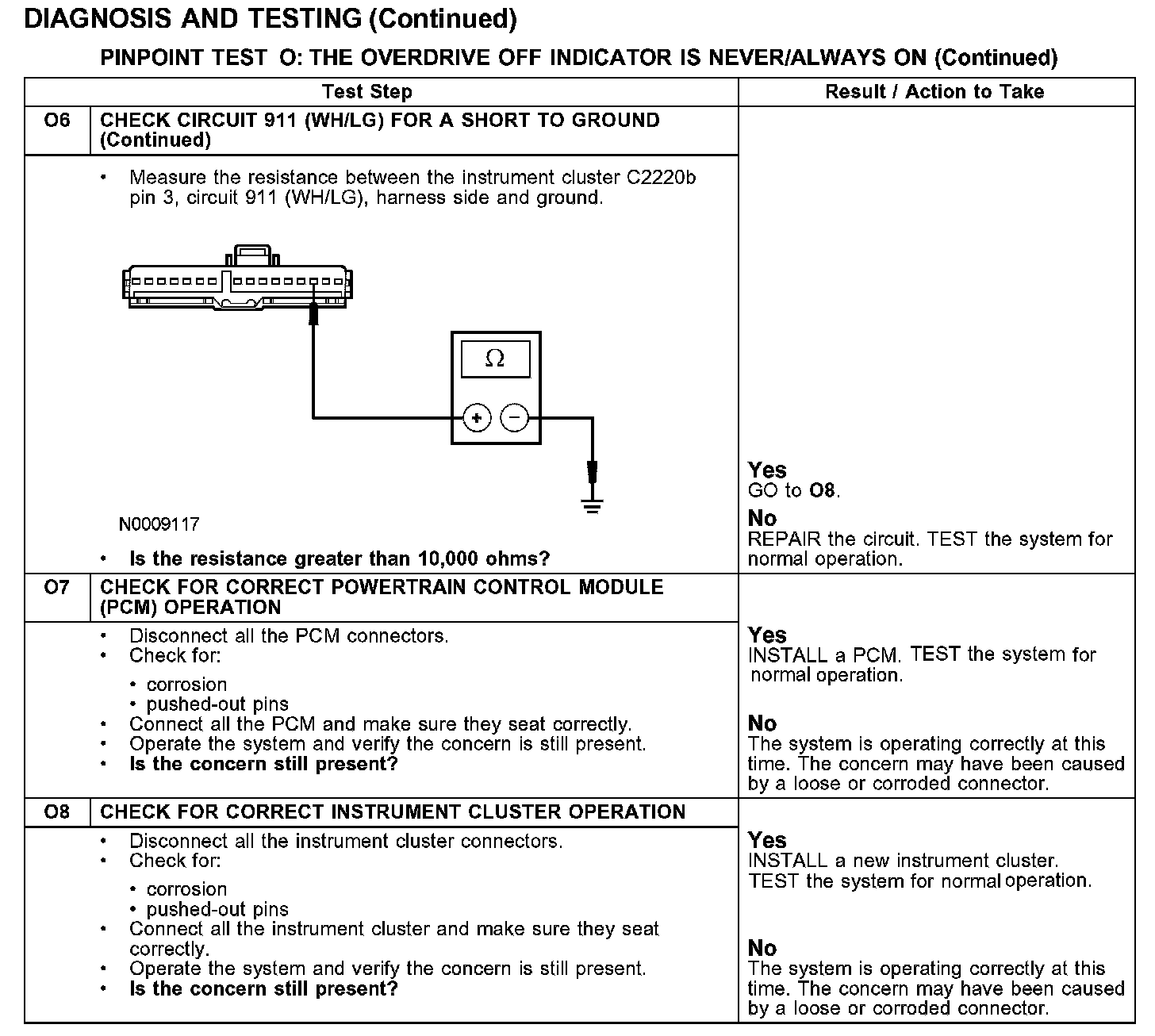

O6-O8:
