Test M: The High Beam Indicator Is Never on
Test M: The High Beam Indicator Is Never on

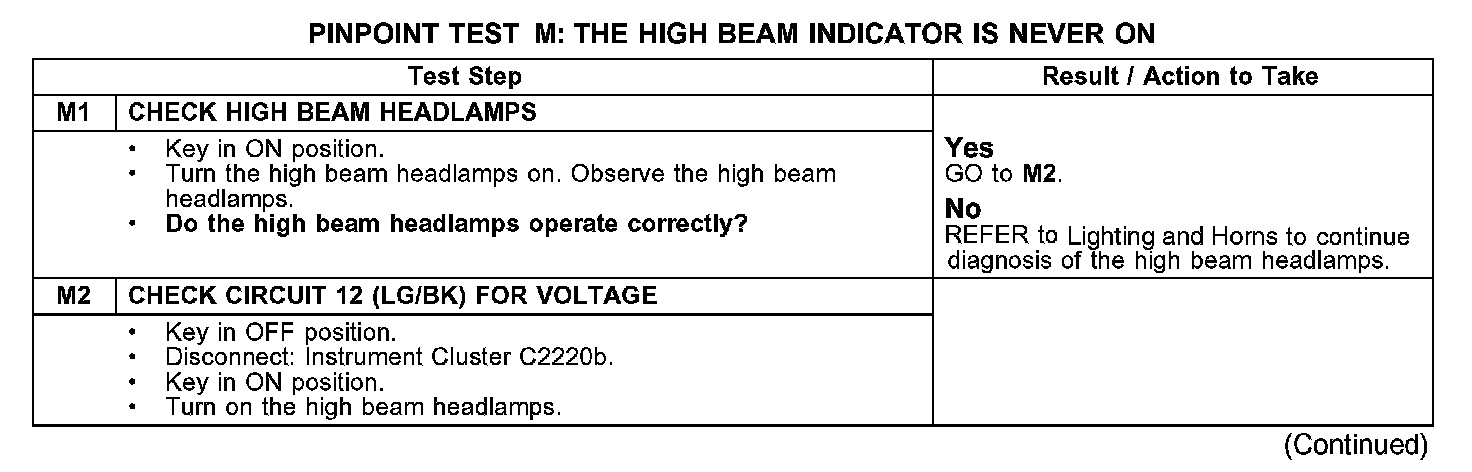

PINPOINT TEST M: THE HIGH BEAM INDICATOR IS NEVER ON
M1-M2:

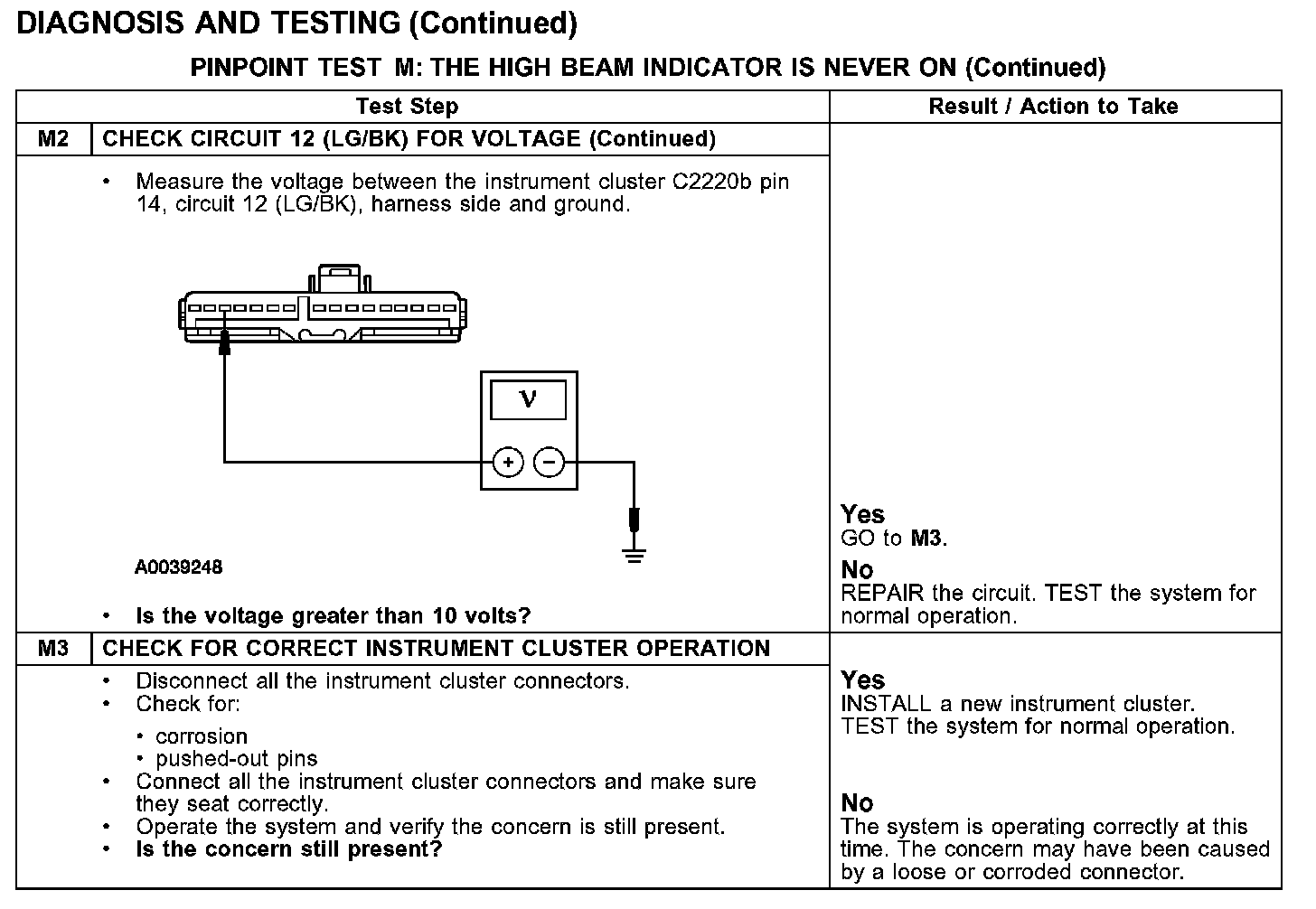

M2-M3:
