Grand Marquis V8-4.6L SOHC VIN W
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Conventional Cluster - Instrument Cluster
>>
Test L: The RH Turn Indicator Is Never on
Test L: The RH Turn Indicator Is Never on

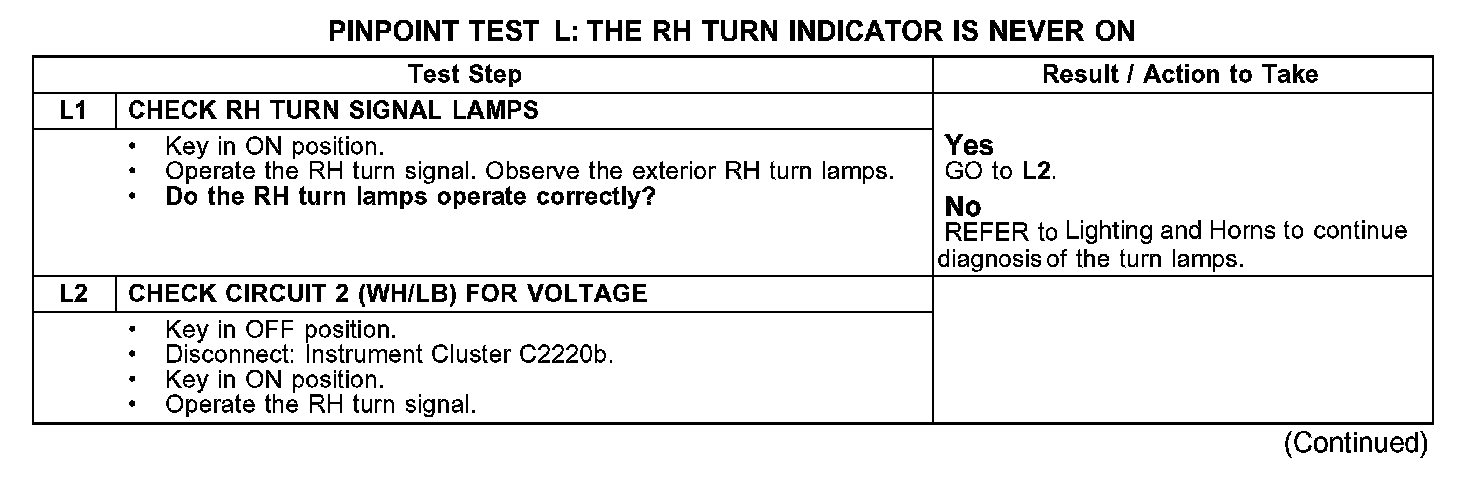

PINPOINT TEST L: THE RH TURN INDICATOR IS NEVER ON
L1-L2:

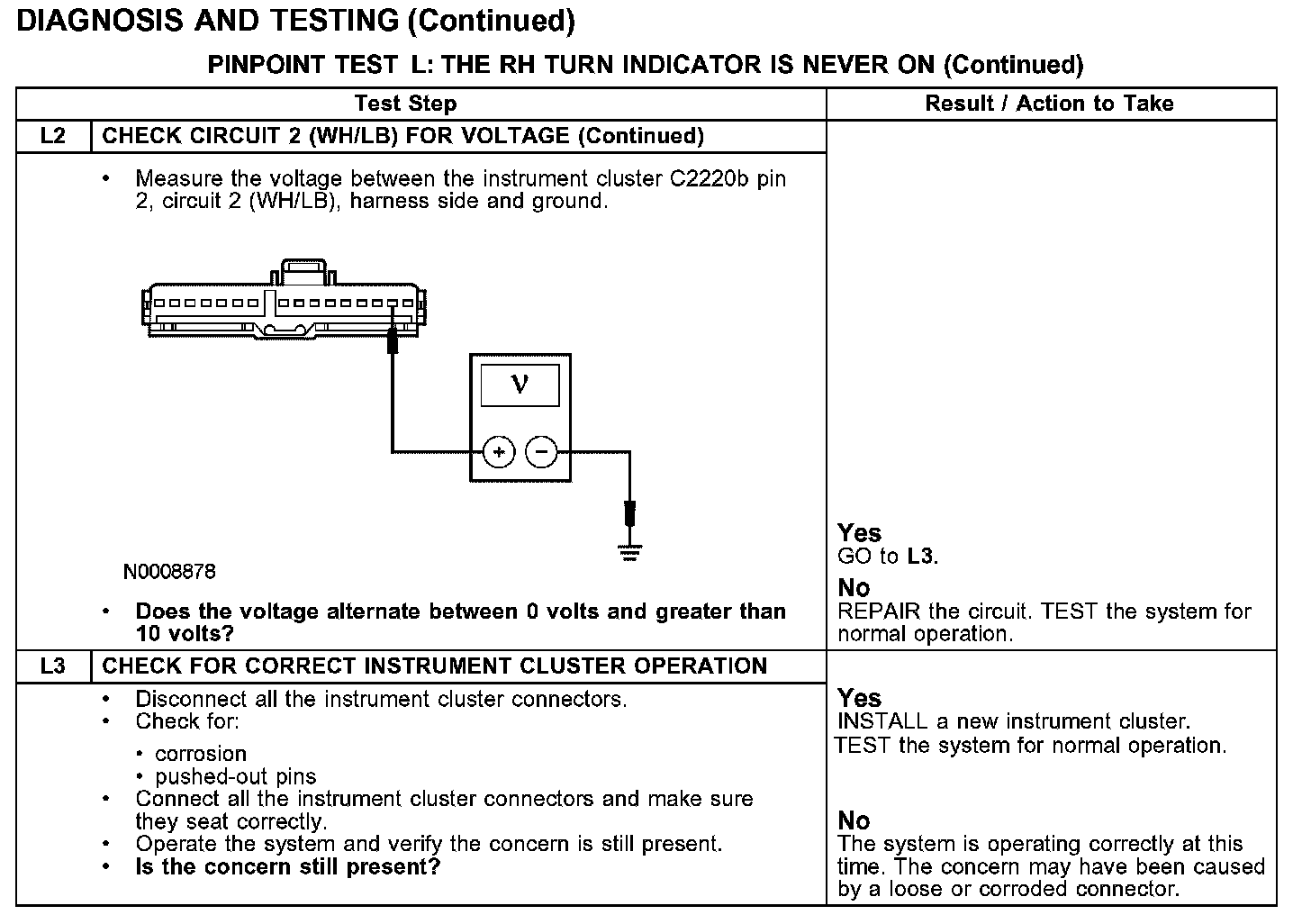

L2-L3:
