Pinpoint Tests - Conventional Cluster - Instrument Cluster
>>
Test I: The Safety Belt Warning Indicator Is Inoperative (Chime Is Operative)
Test I: The Safety Belt Warning Indicator Is Inoperative (Chime Is Operative)
PINPOINT TEST I: THE SAFETY BELT WARNING INDICATOR IS INOPERATIVE (CHIME IS OPERATIVE)

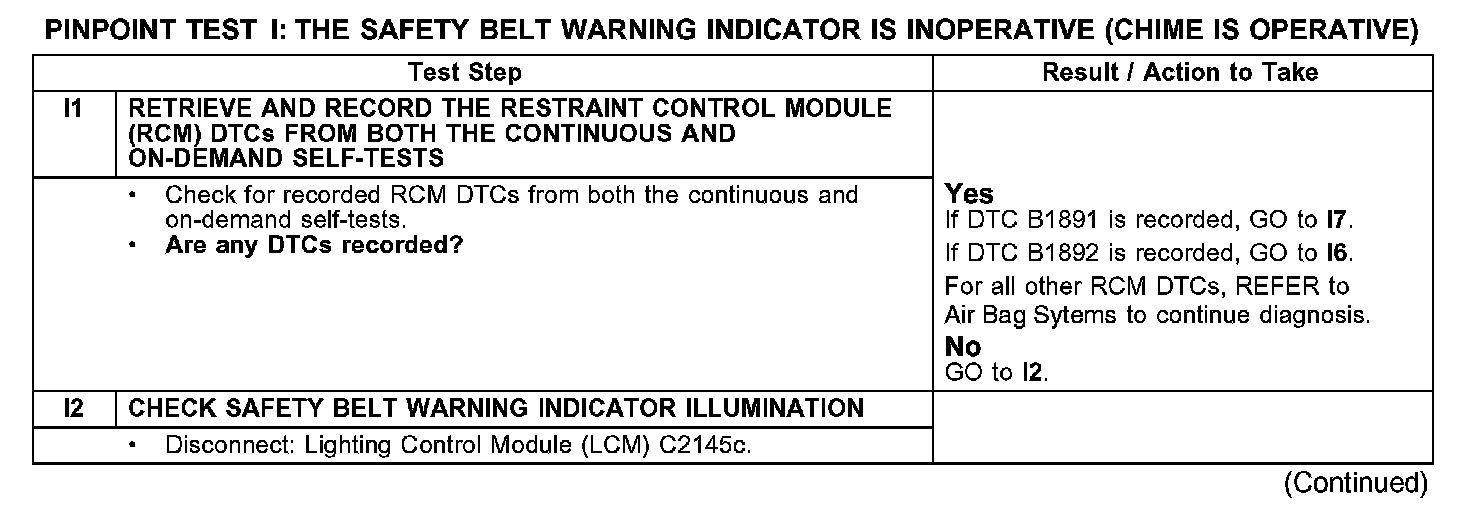

I1-I2:

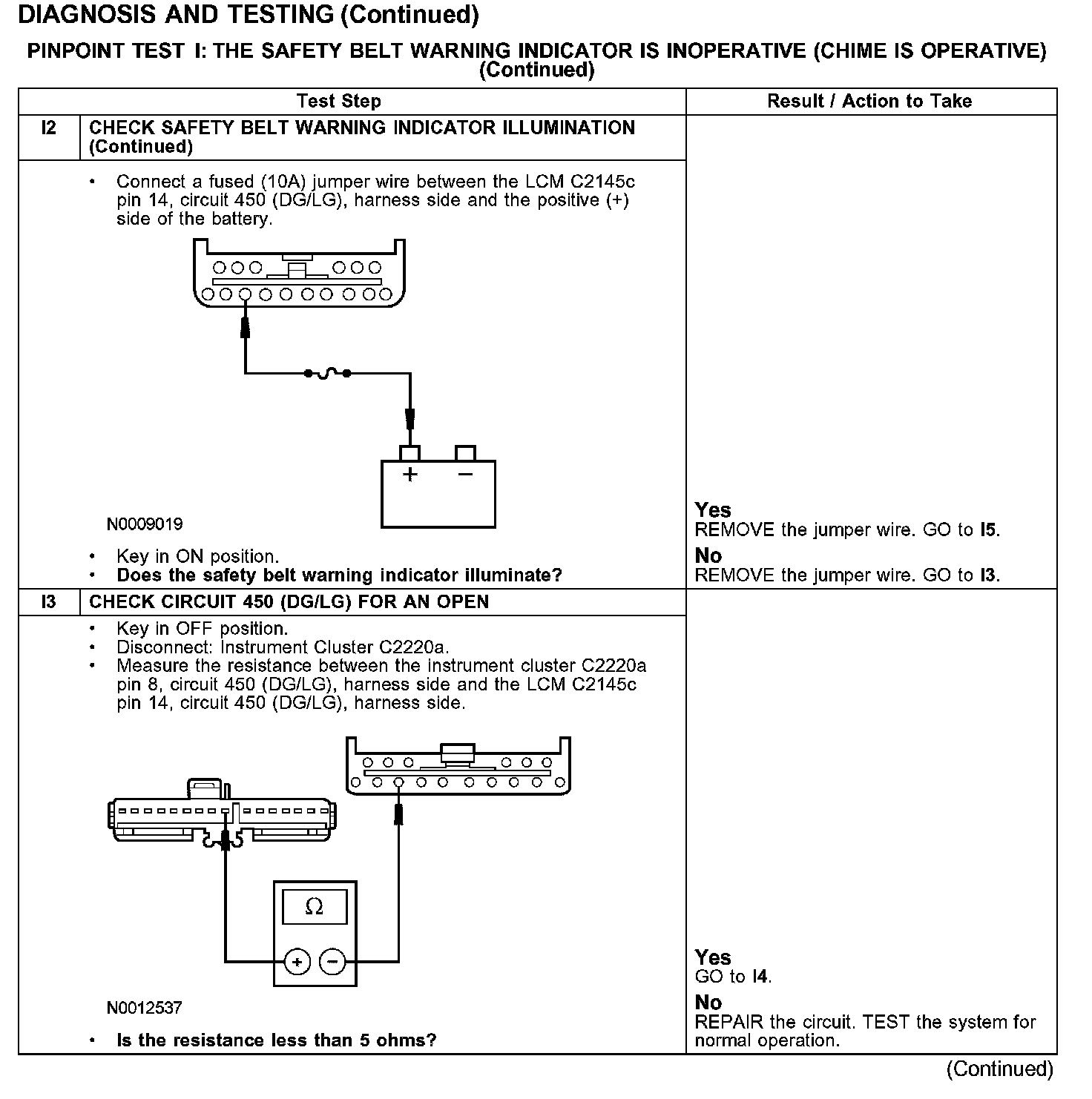

I2-I3:

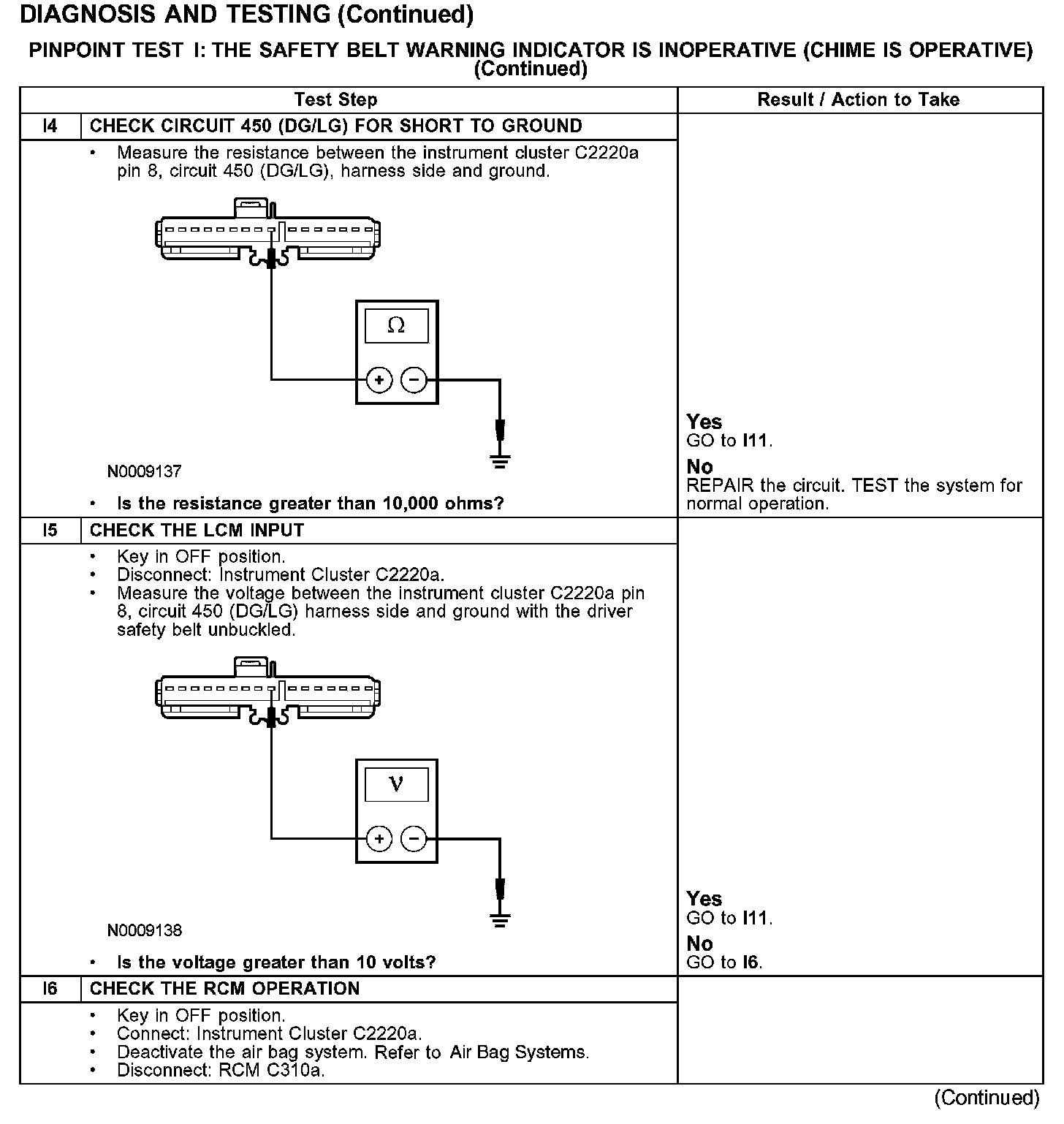

I4-I6:
I6-I8:

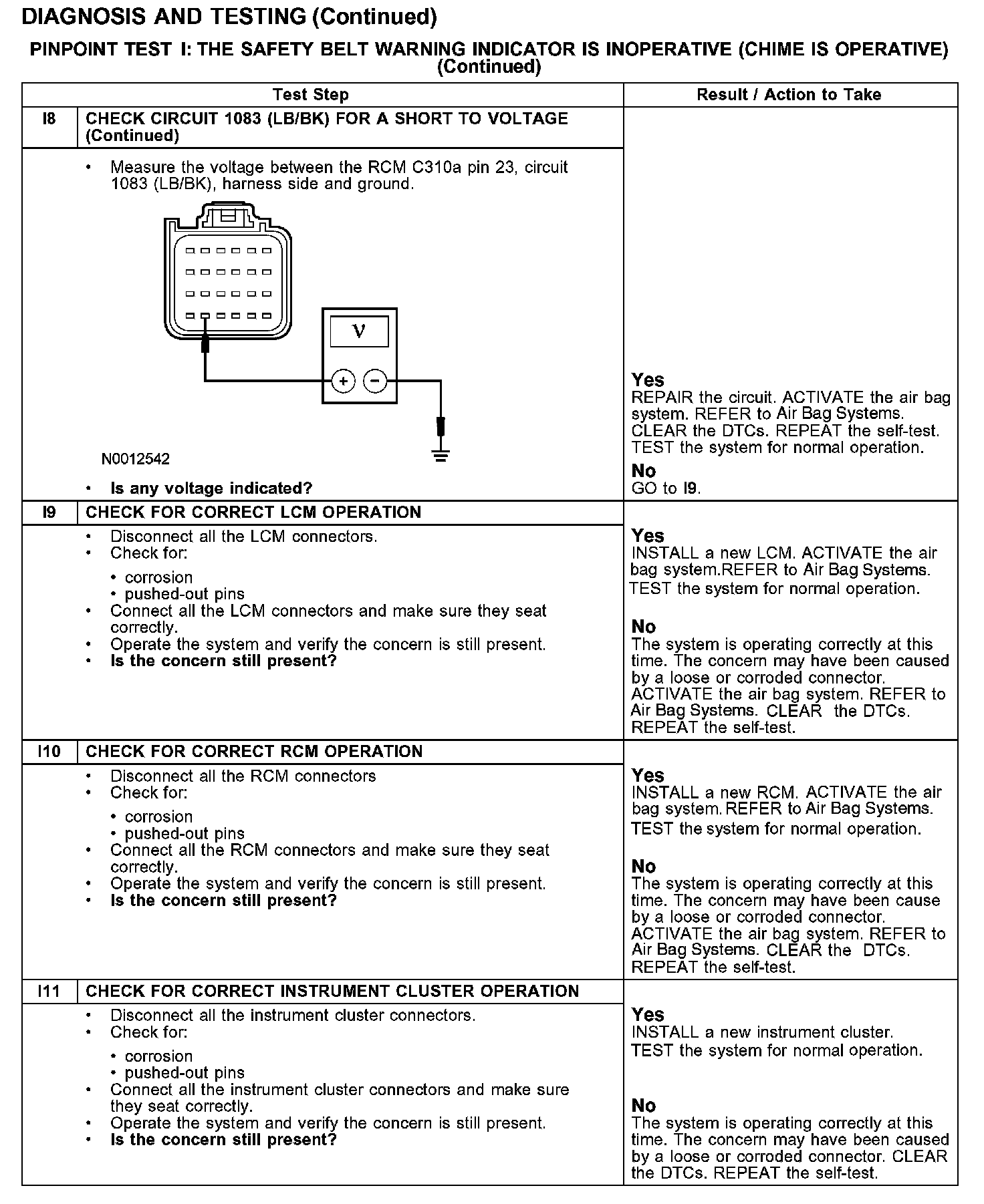

I8-I11:
