Test F: The Charging System Warning Indicator Is Never on
Test F: The Charging System Warning Indicator Is Never on
PINPOINT TEST F: THE CHARGING SYSTEM WARNING INDICATOR IS NEVER ON
F1:

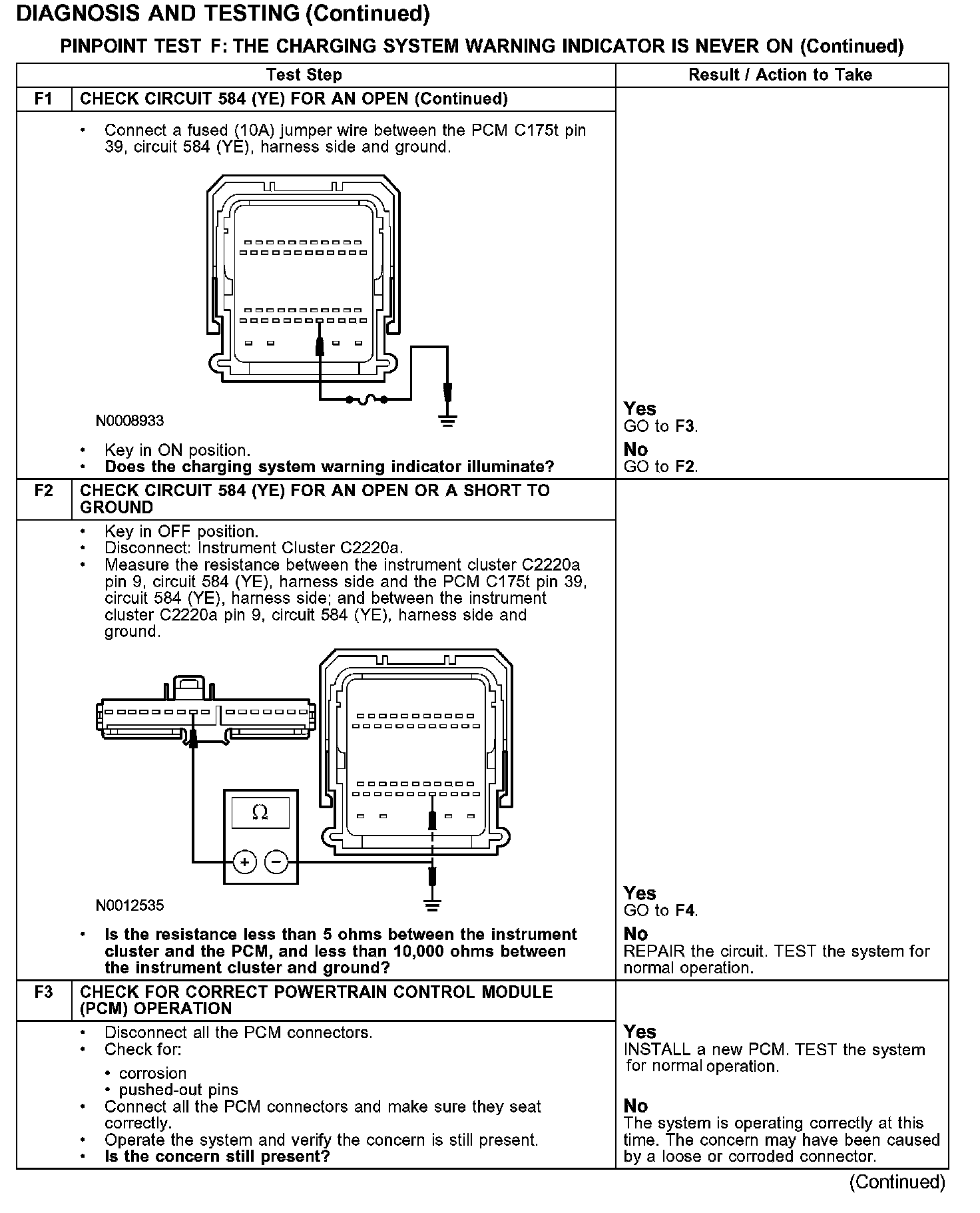

F1-F3:

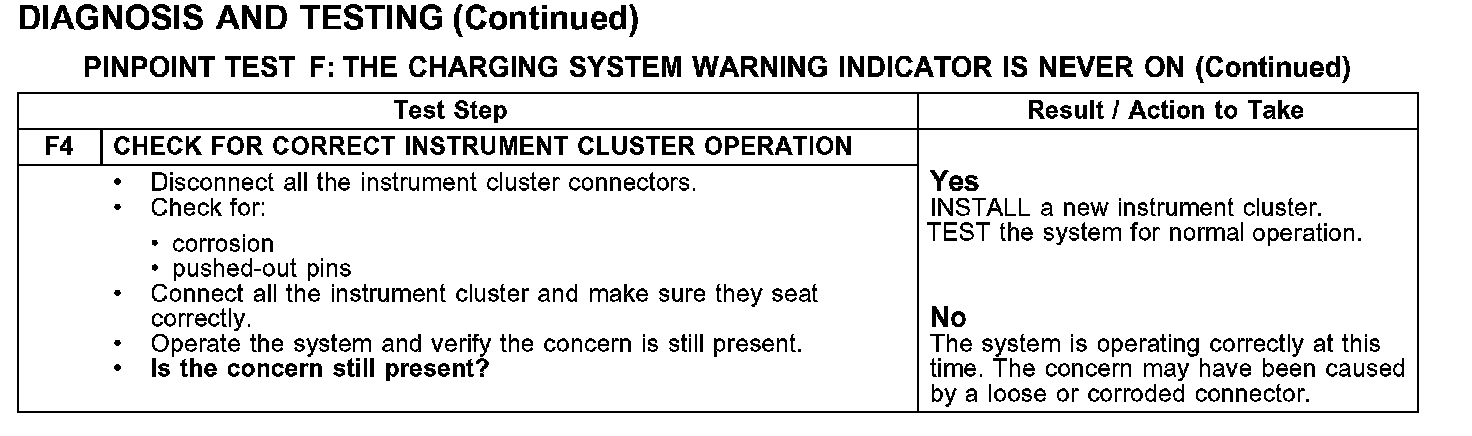

F4:
