Test D: The Speedometer/Odometer Is Inoperative

PINPOINT TEST D: THE SPEEDOMETER/ODOMETER IS INOPERATIVE

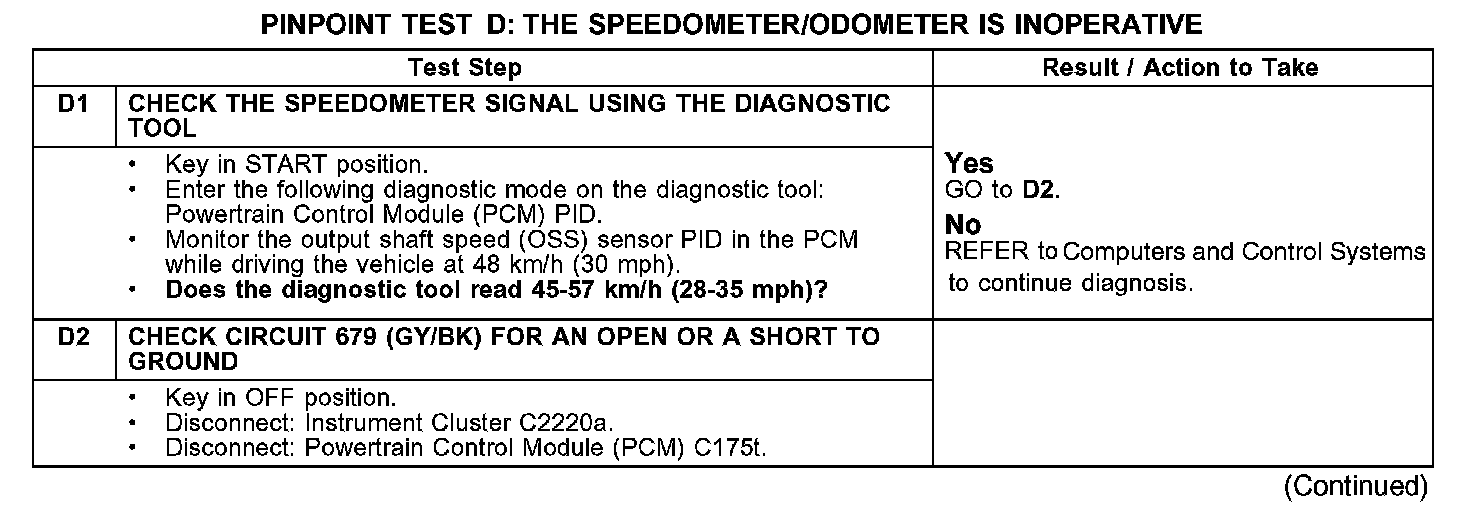

D1-D2:

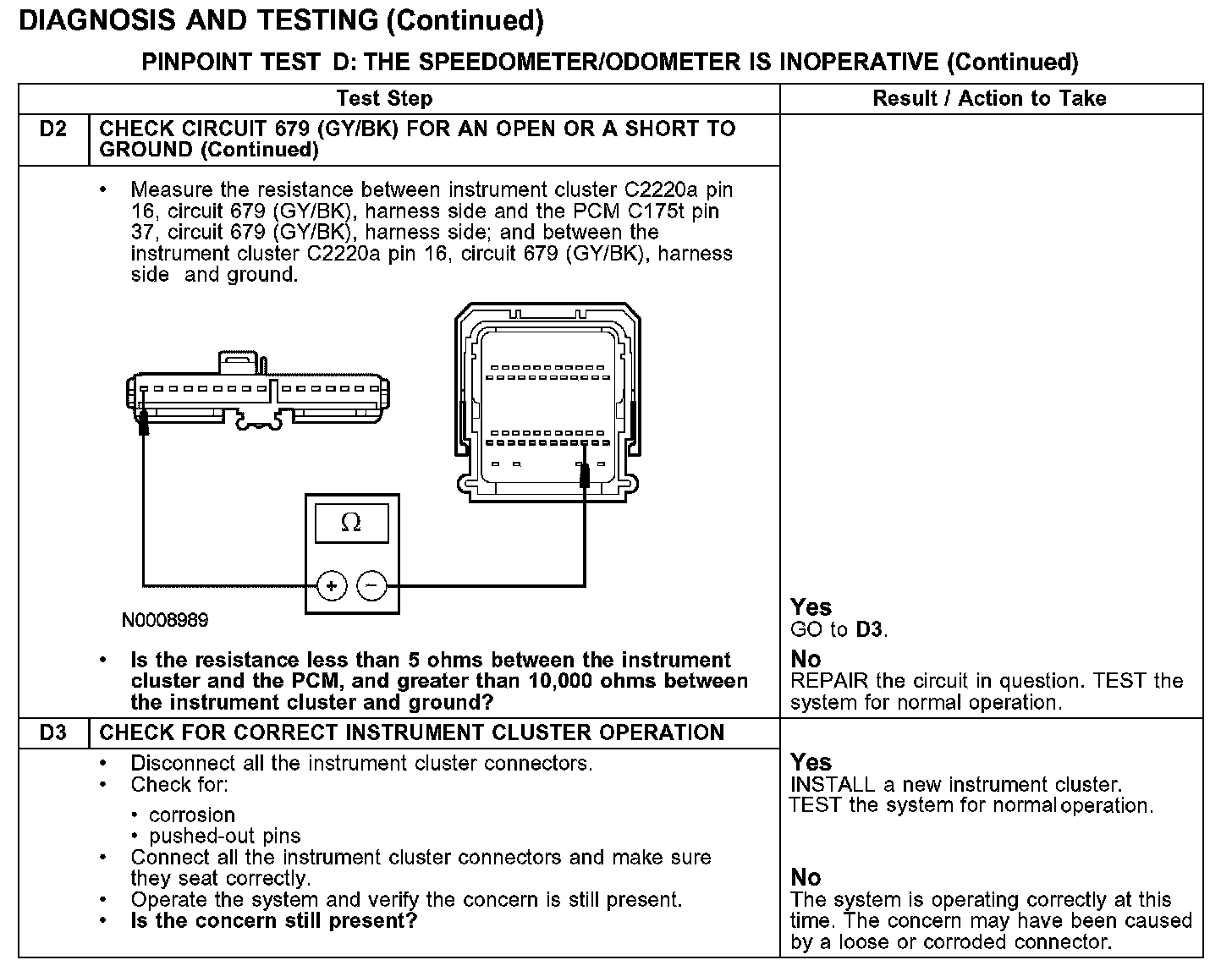

D2-D3:
