Test C: Incorrect Oil Pressure Gauge Indication

PINPOINT TEST C: INCORRECT OIL PRESSURE GAUGE INDICATION

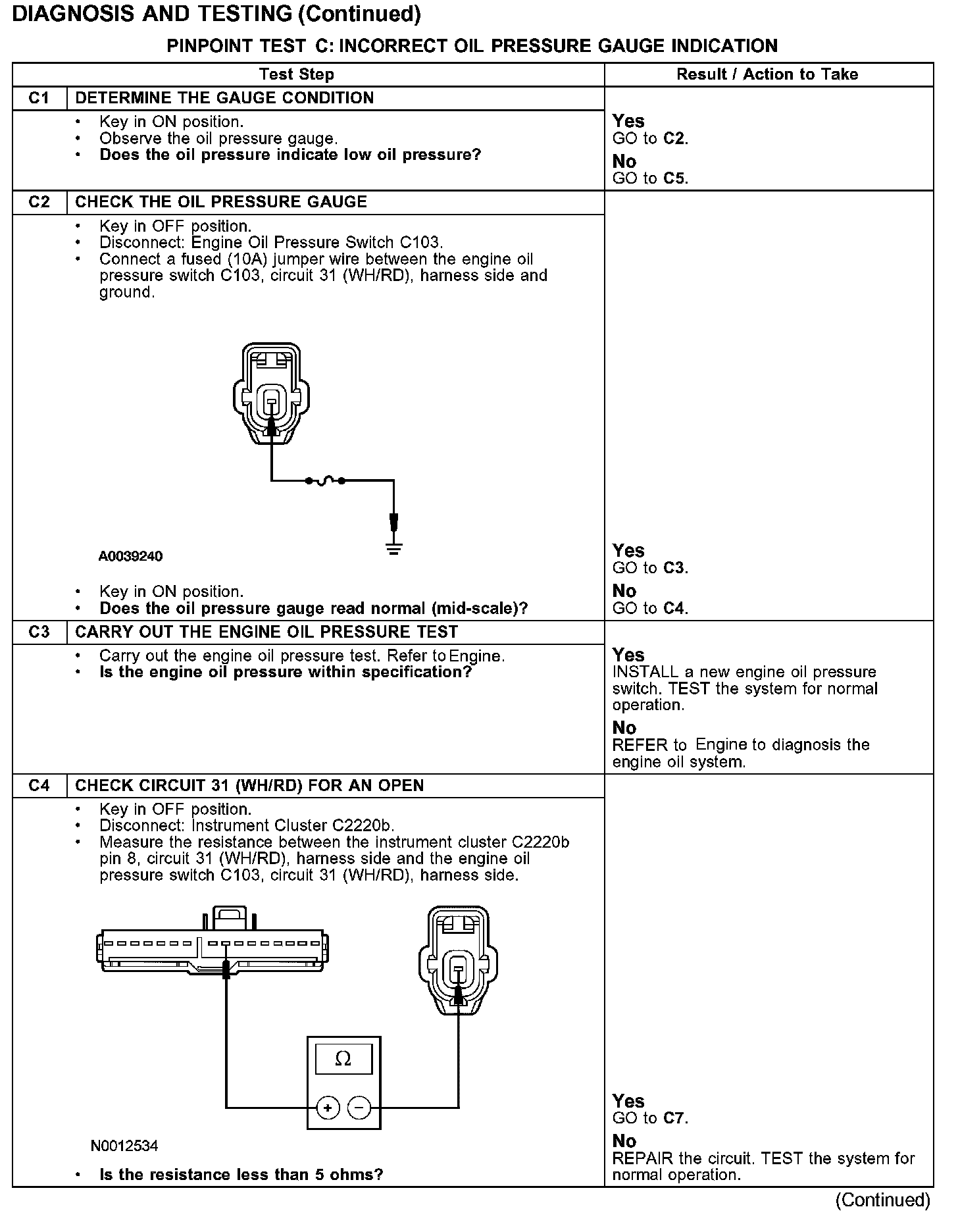

C1-C4:

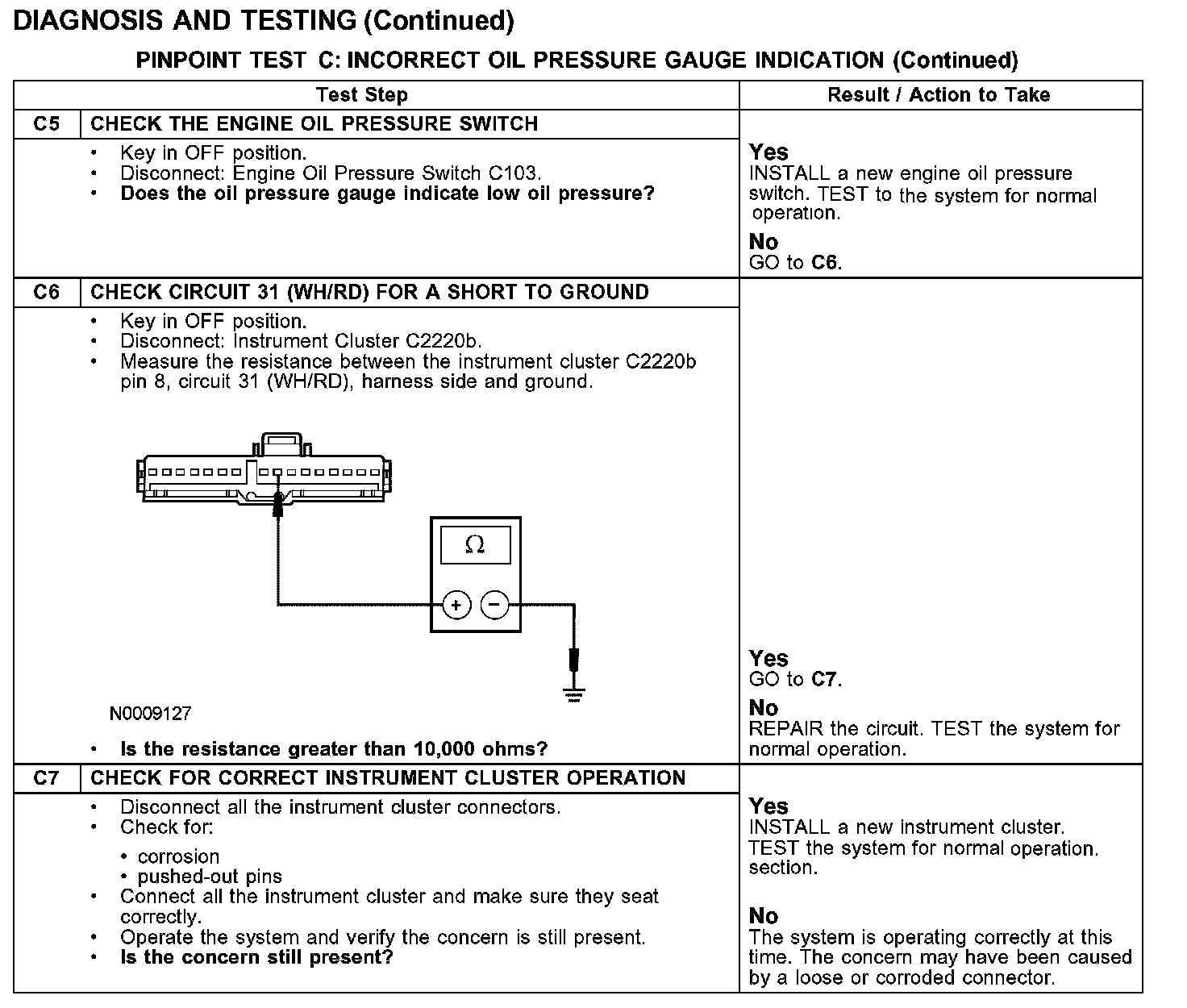

C5-C7:
