Test A: Incorrect Fuel Gauge Indication

PINPOINT TEST A: INCORRECT FUEL GAUGE INDICATION

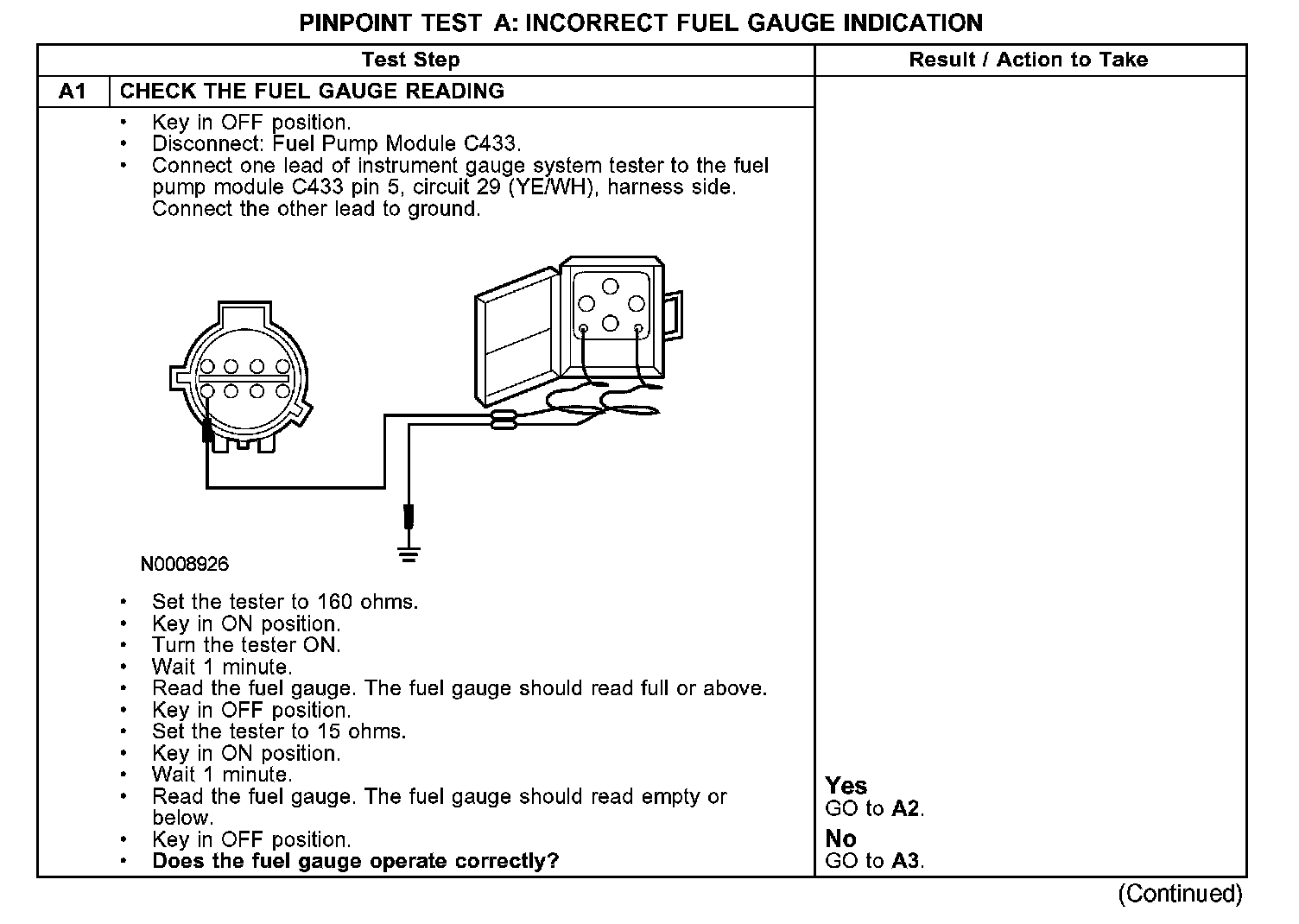

A1:

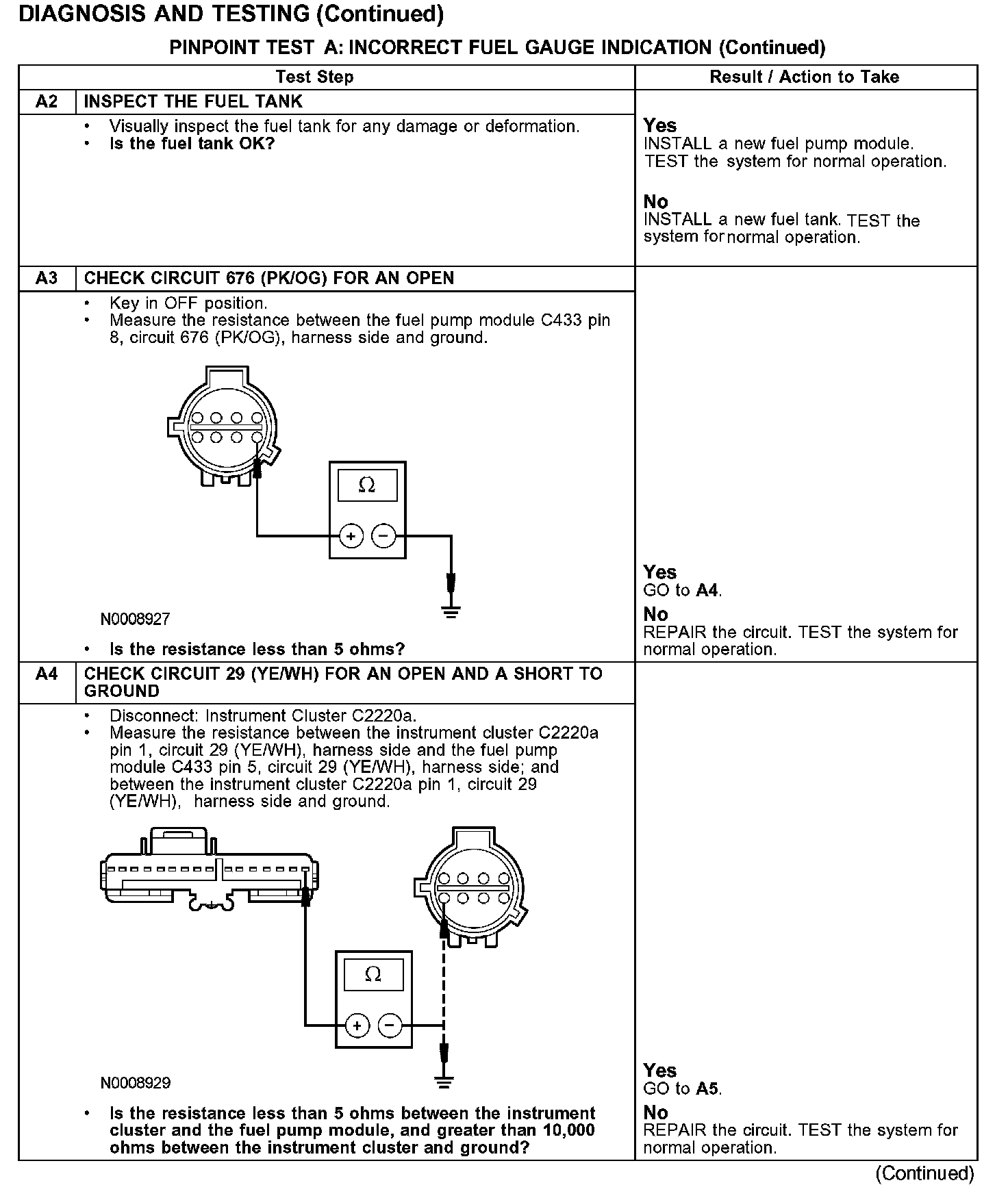

A2-A4:

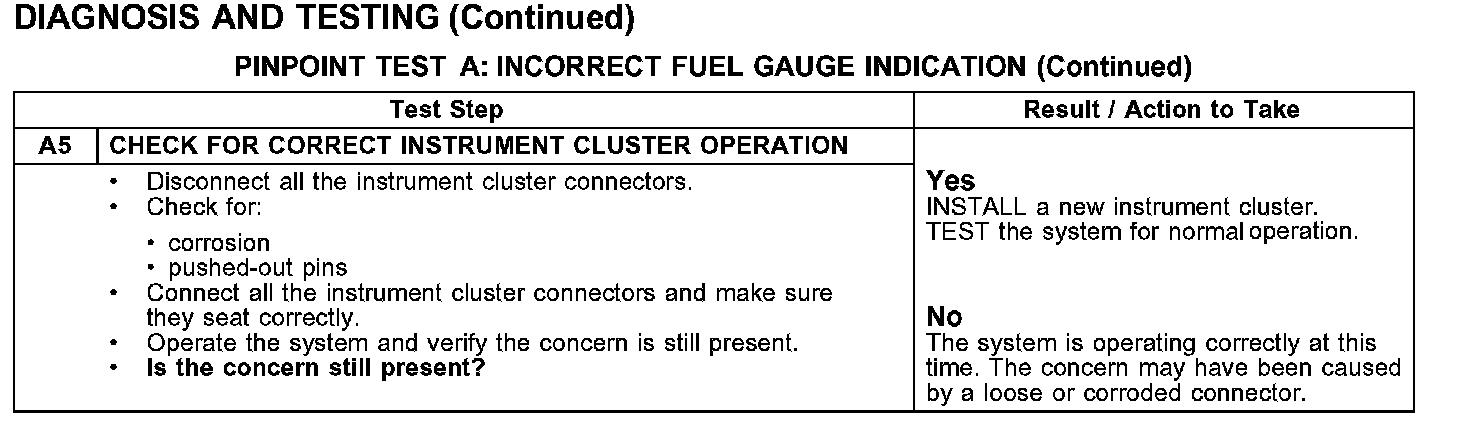

A5:
