Instrument Cluster

INSTRUMENT CLUSTER LENS

Removal and Installation
1. Remove the instrument cluster.

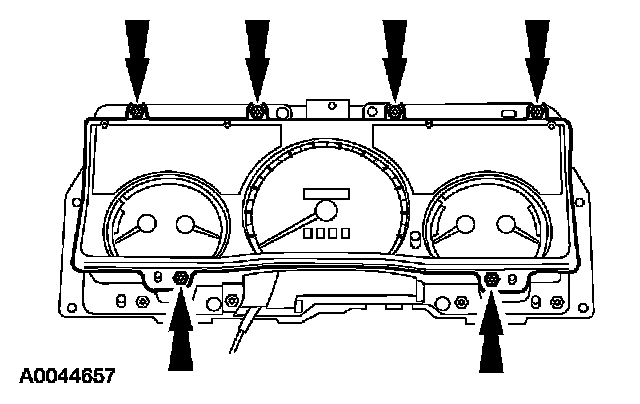

2. Remove the retaining screws and remove the cluster lens.
3. To install, reverse the removal procedure.
