INSTRUMENT CLUSTER

Removal and Installation
1. Depower the supplemental restraint system (SRS).
2. Set the parking brake.
3. Remove the instrument cluster finish panel.







4. Remove the lower steering column cover.

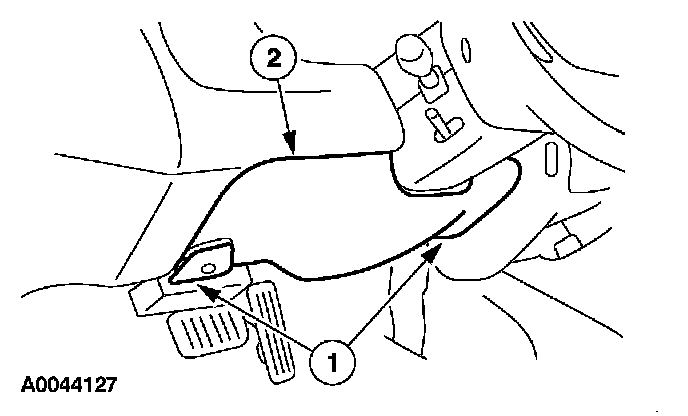

1 Remove the lower steering column cover bolts.
2 Position the parking brake release aside and remove the lower steering column cover.

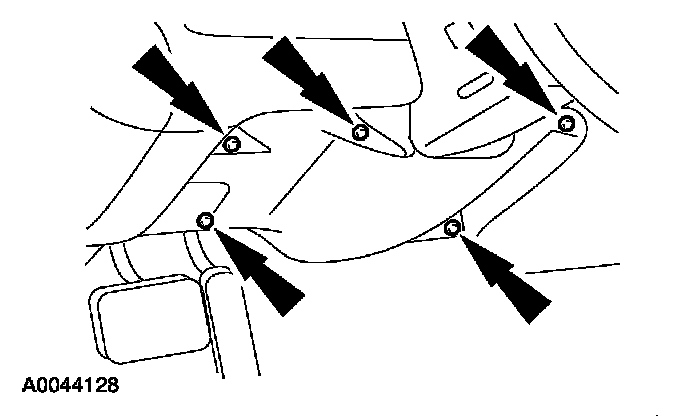

5. Remove the bolts and the lower steering column reinforcement.

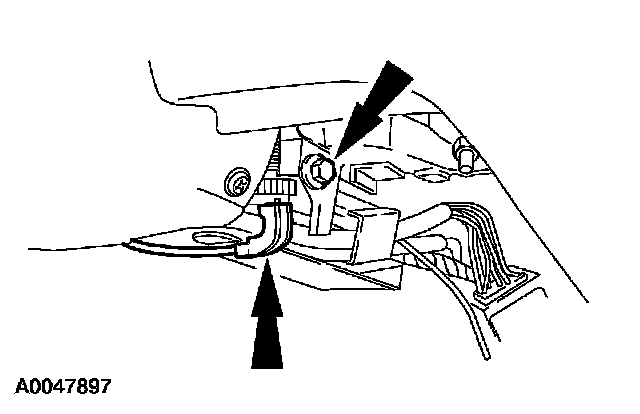

6. Remove the bolt and disconnect the transmission range indicator from the steering column.







7. Loosen the steering column assembly.

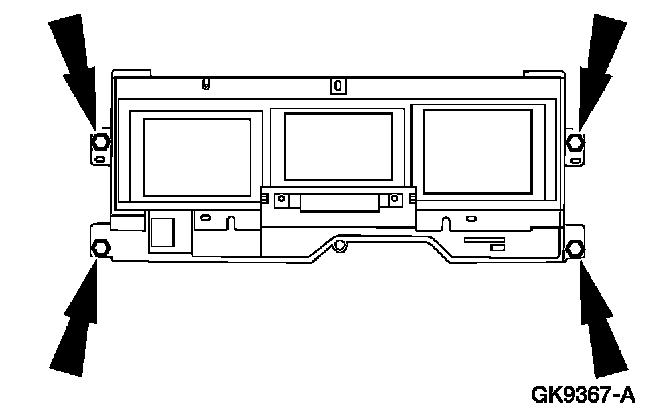

8. Remove the screws.

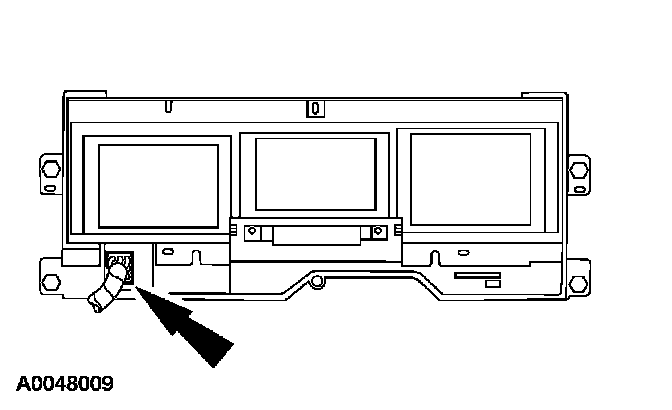

9. Disconnect the electrical connector.

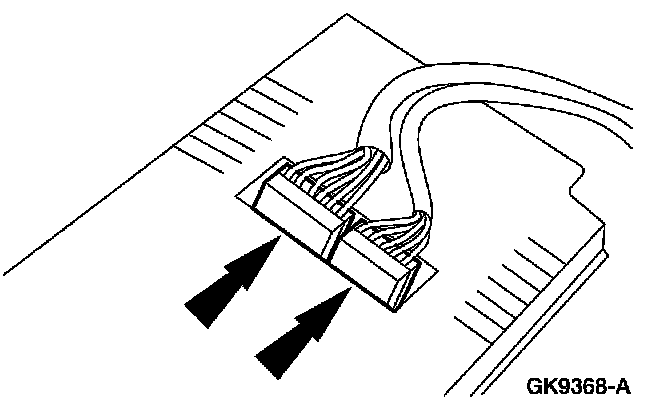

10. Pull the instrument cluster out from the instrument panel and disconnect the electrical connectors.
11. To install, reverse the removal procedure.
