Conventional

INSTRUMENT CLUSTER

Removal and Installation

All vehicles
1. Depower the supplemental restraint system (SRS).
2. Remove the instrument cluster finish panel.

Vehicles with column shift transmission







3. Remove the lower steering column cover.

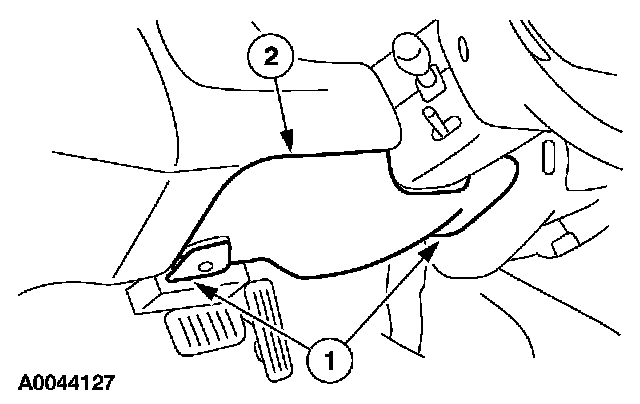

1 Remove the lower steering column cover retaining bolts.
2 Position the parking brake release aside and remove the lower steering column cover.







4. Remove the retaining bolts and remove the lower steering column reinforcement.

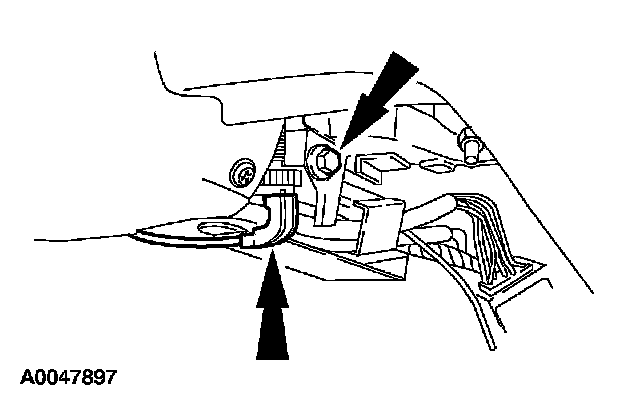

5. Remove the bolt and disconnect the transmission range indicator from the steering column.

All vehicles

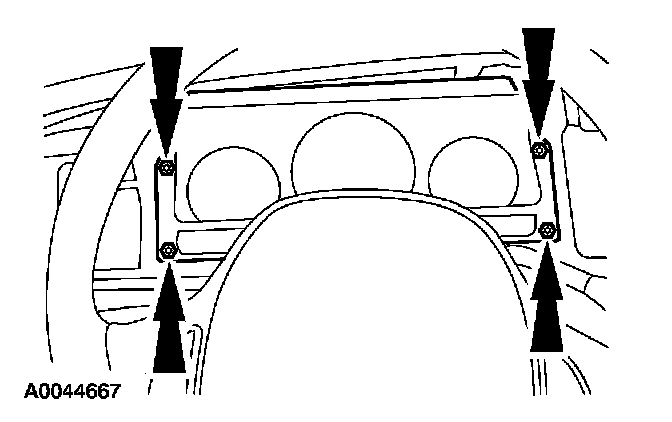

6. Remove the instrument cluster screws and position the instrument cluster aside.

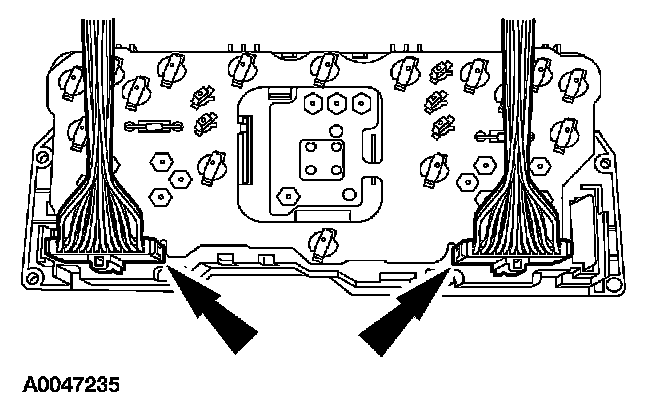

7. Disconnect the electrical connectors and remove the instrument cluster.
8. To install, reverse the removal procedure.
