Test D: The Compass Is Inaccurate

PINPOINT TEST D: THE COMPASS IS INACCURATE

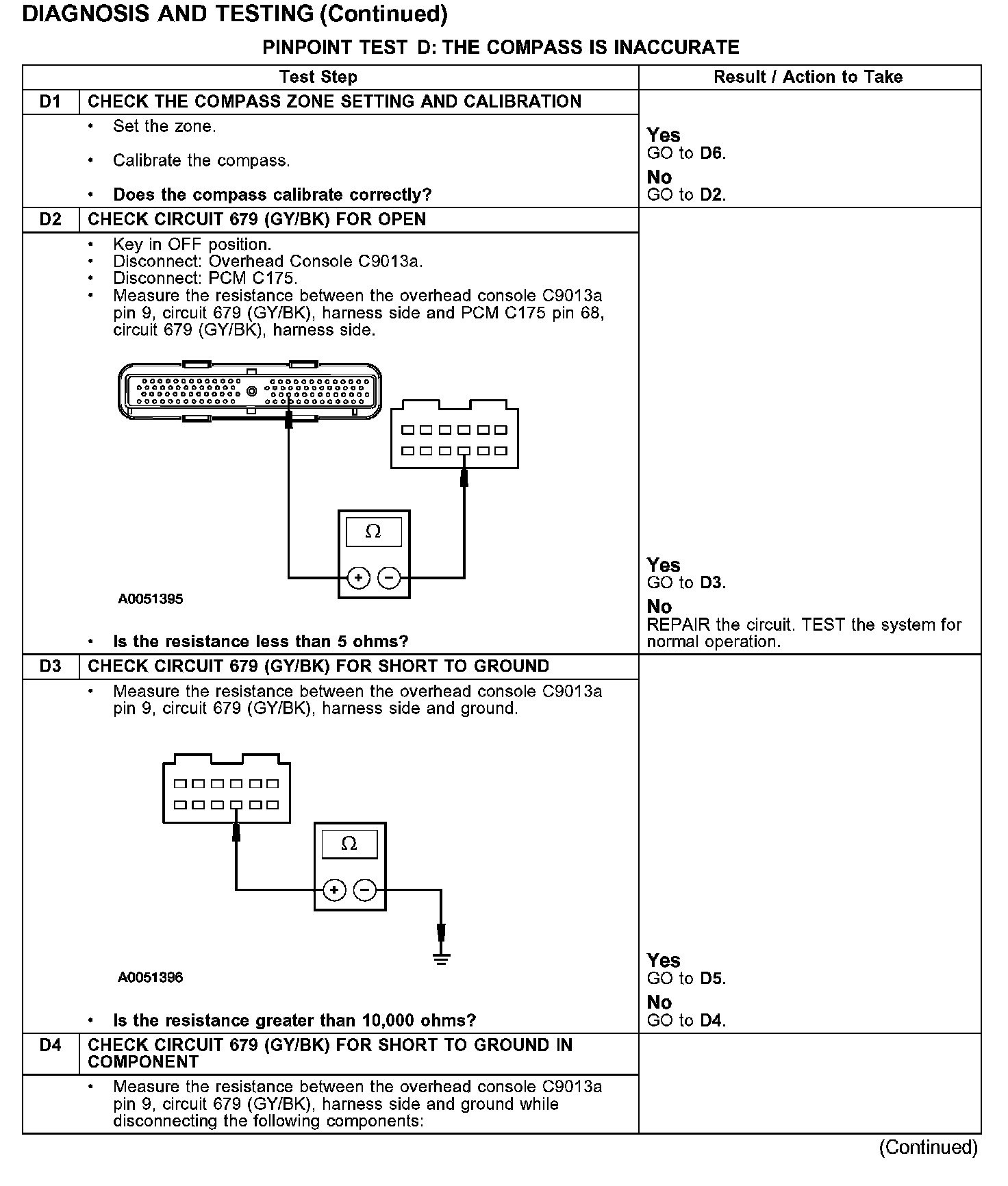

D1-D4:






D4-D6:

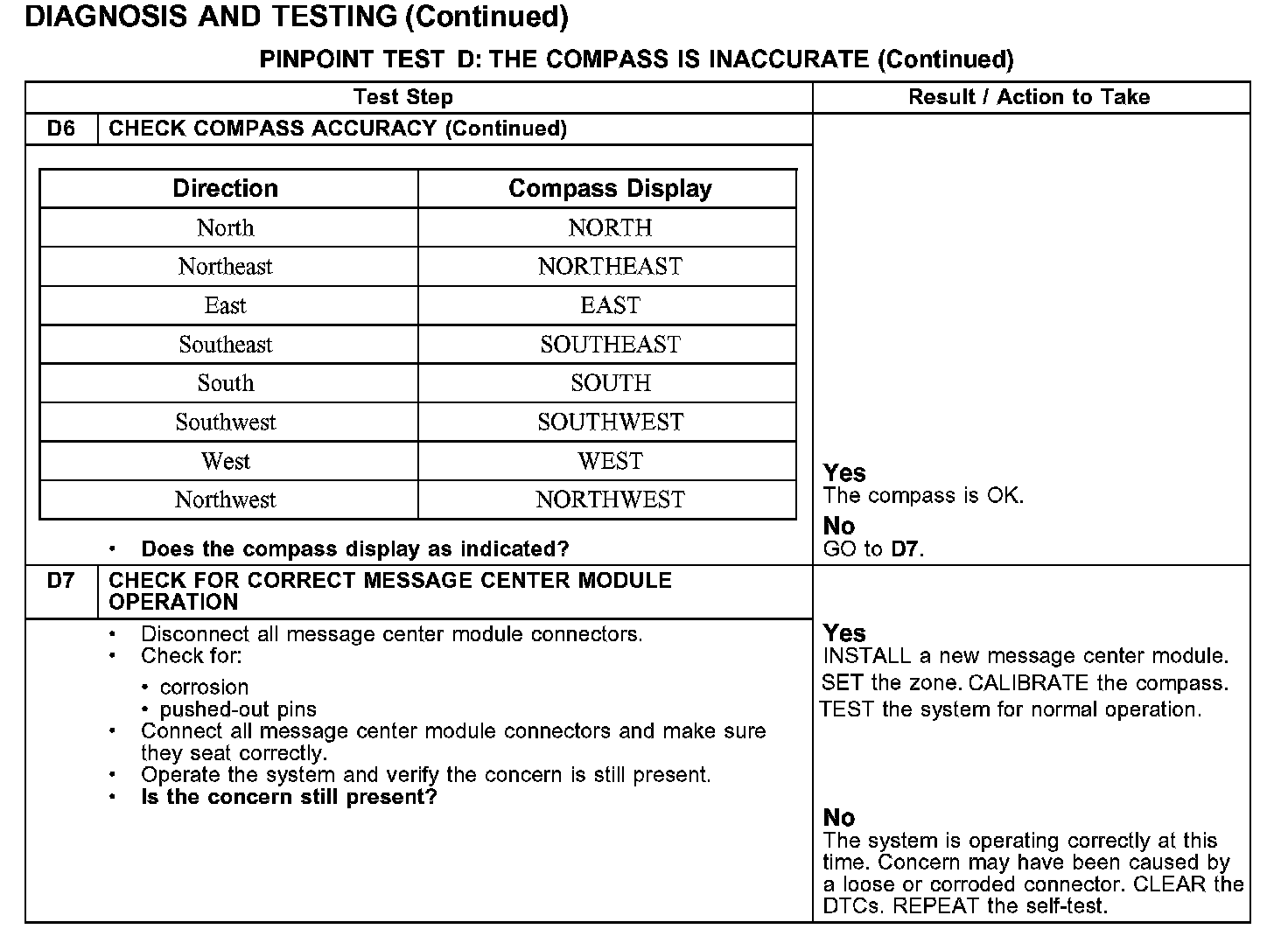

D6-D7:
