Test C: The Message Center Is Not Operating Correctly - With Overhead Console
Test C: The Message Center Is Not Operating Correctly - With Overhead Console
PINPOINT TEST C: THE MESSAGE CENTER IS NOT OPERATING CORRECTLY - WITH OVERHEAD CONSOLE

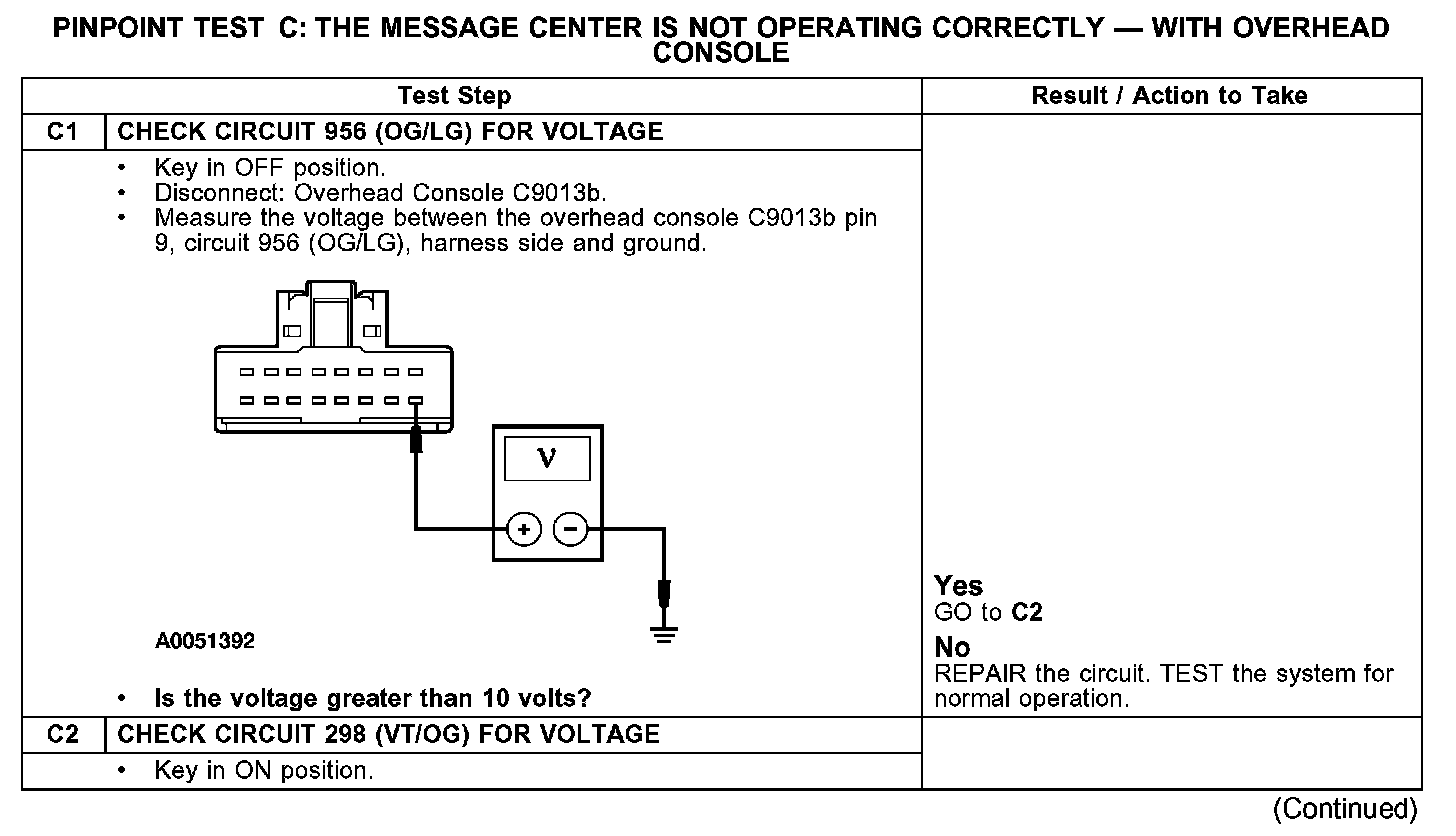

C1-C2:

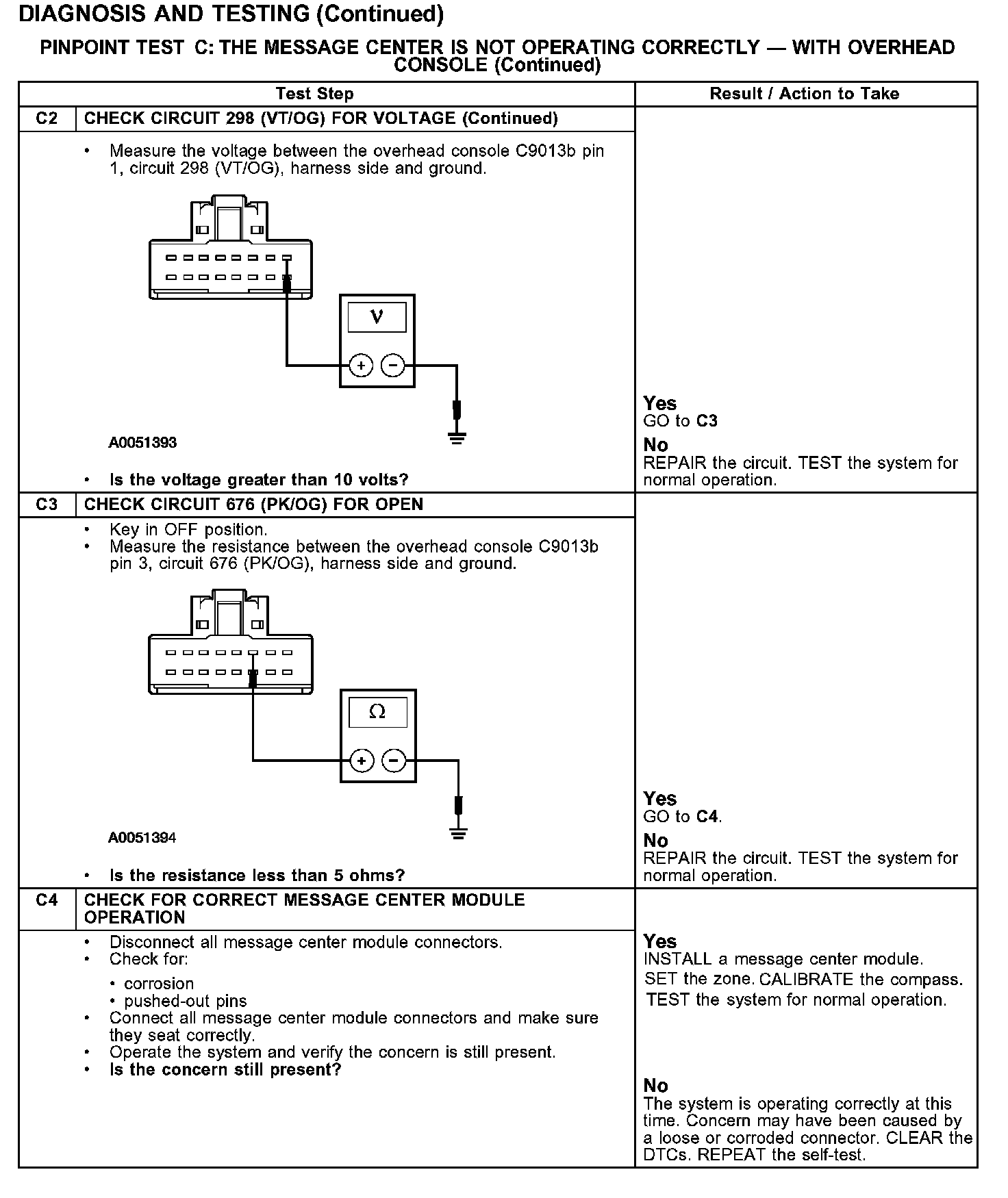

C2-C4:
