Home >> Mercury >> 2005 >> Grand Marquis V8-4.6L SOHC VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Driver/Vehicle Information Display >> Testing and Inspection >> Pinpoint Tests >> Test A: No Communication With the Message Center Module - With Overhead Console

Test A: No Communication With the Message Center Module - With Overhead Console

PINPOINT TEST A: NO COMMUNICATION WITH THE MESSAGE CENTER MODULE - WITH OVERHEAD CONSOLE

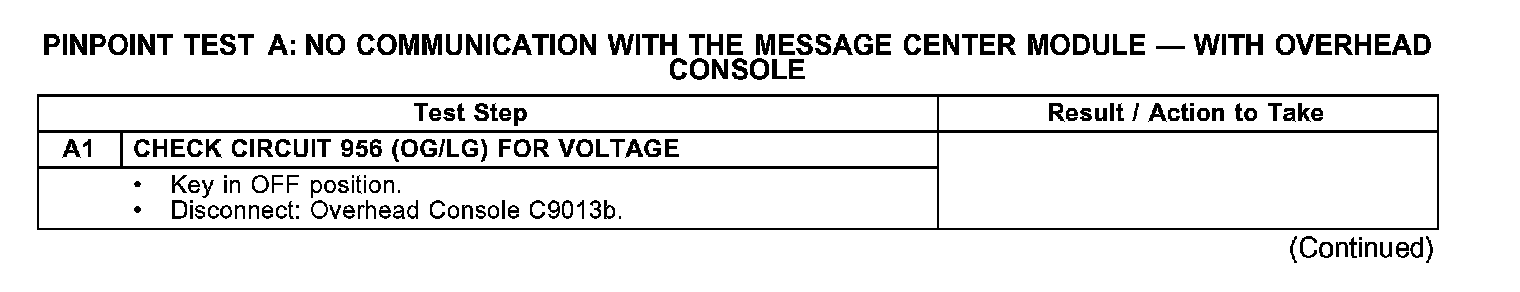

A1:

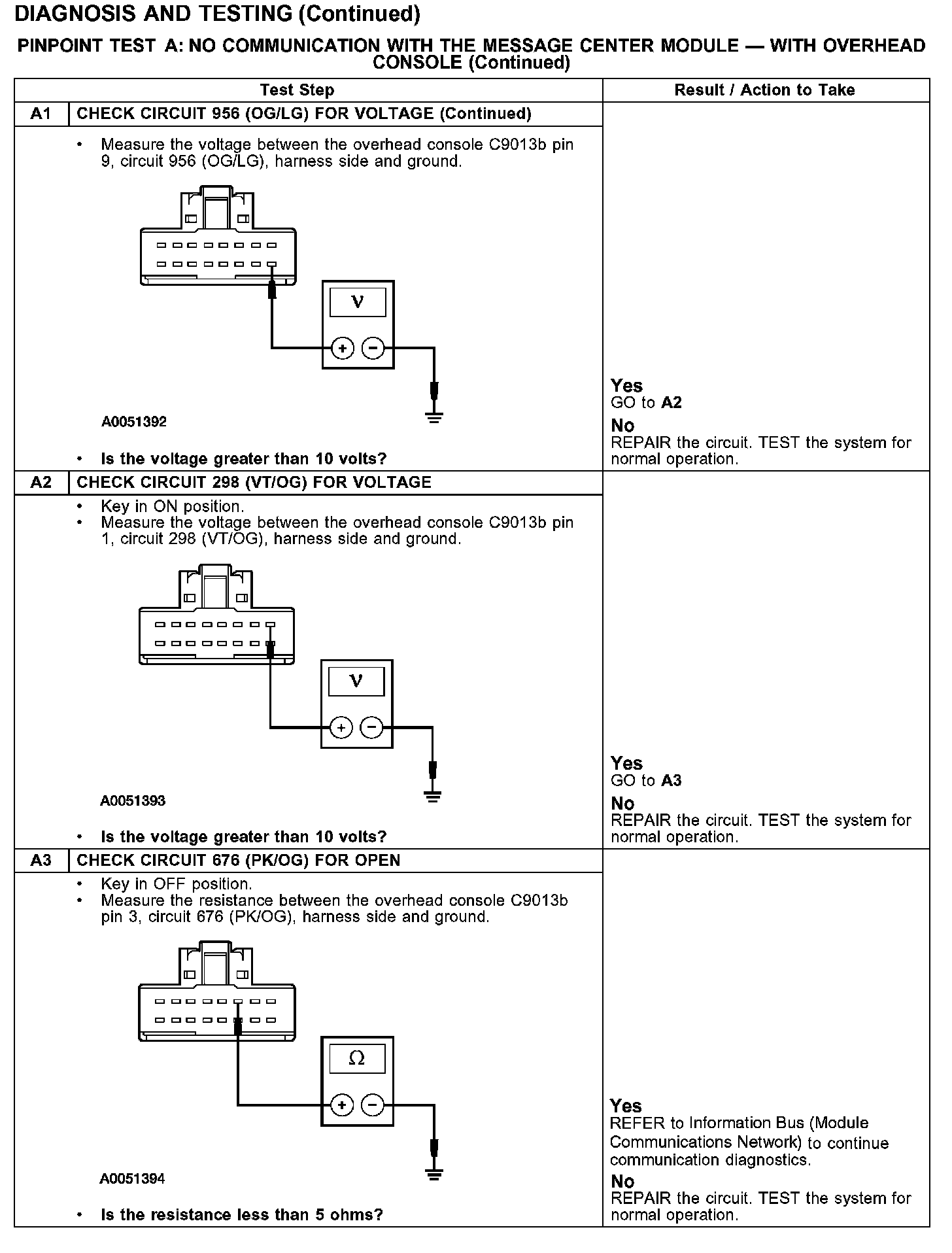

A1-A3:
