Message Center Module

MESSAGE CENTER MODULE

Removal and Installation
1. Disconnect the battery ground cable.

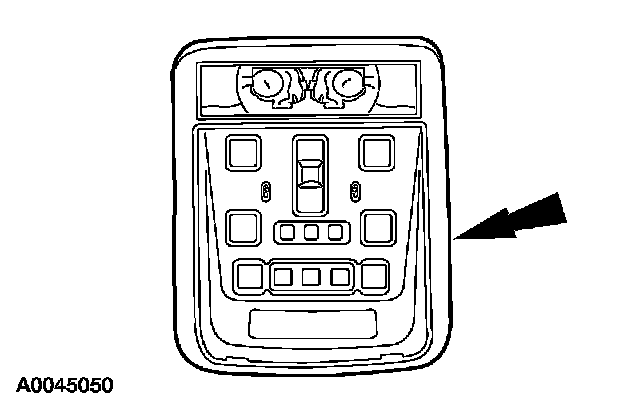

2. Disengage the four retaining clips by first pulling down on the front of the overhead console and then the rear of the overhead console.
- Disconnect the electrical connectors.

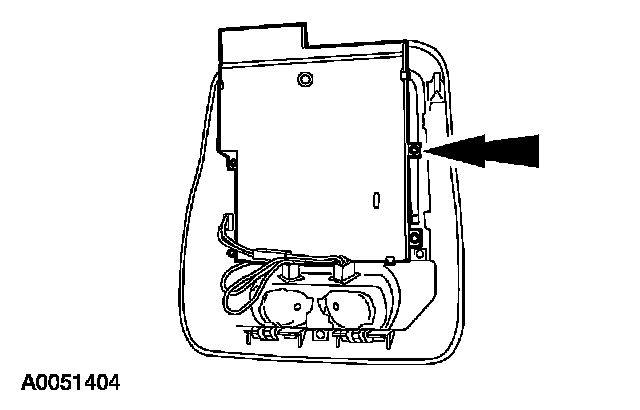

3. Remove the four screws and the message center module.
4. To install, reverse the removal procedure.
