Home >> Mercury >> 2005 >> Grand Marquis V8-4.6L SOHC VIN W >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Test O: The Blower Motor Does Not Operate Correctly - Manual Climate Control

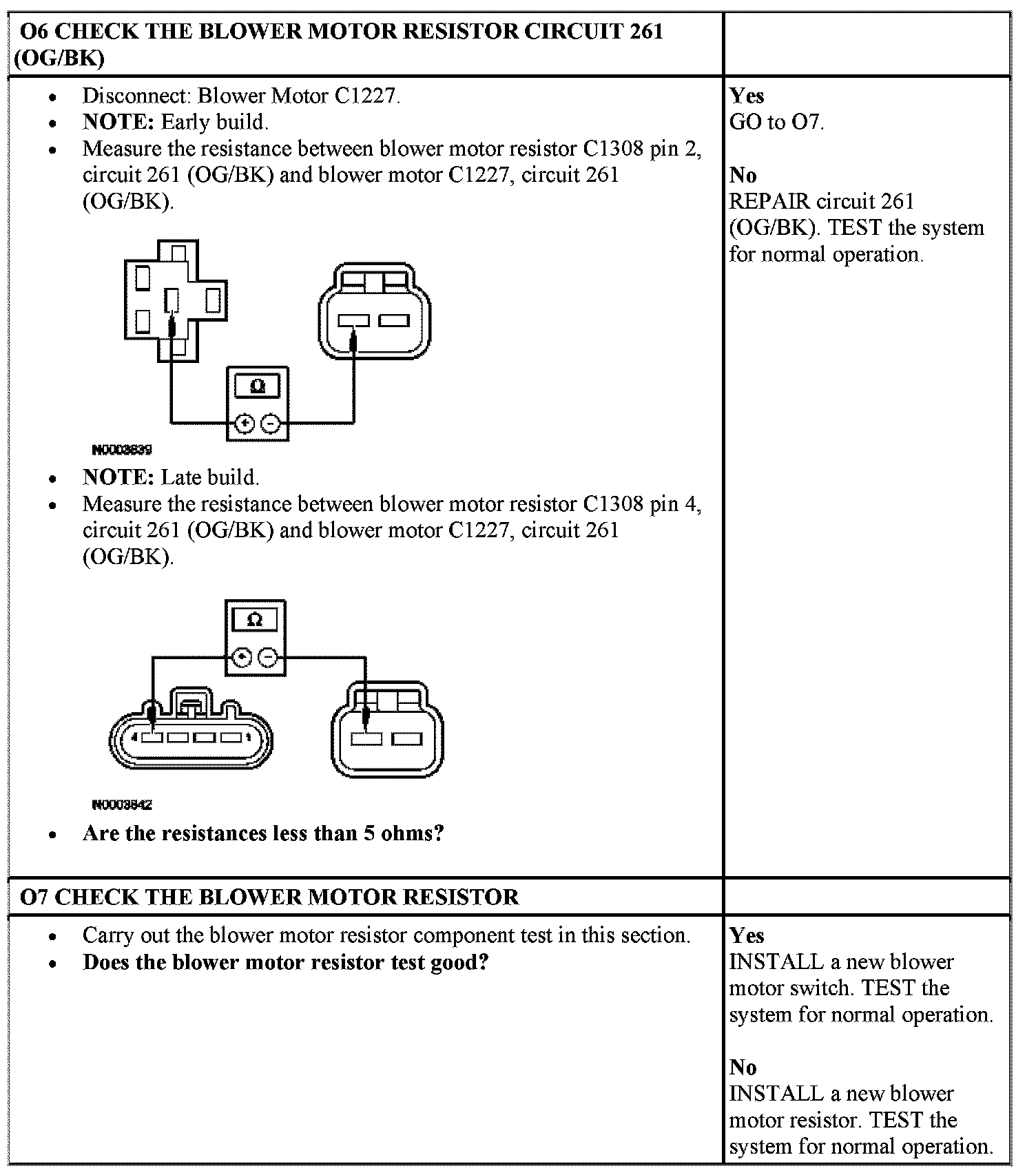

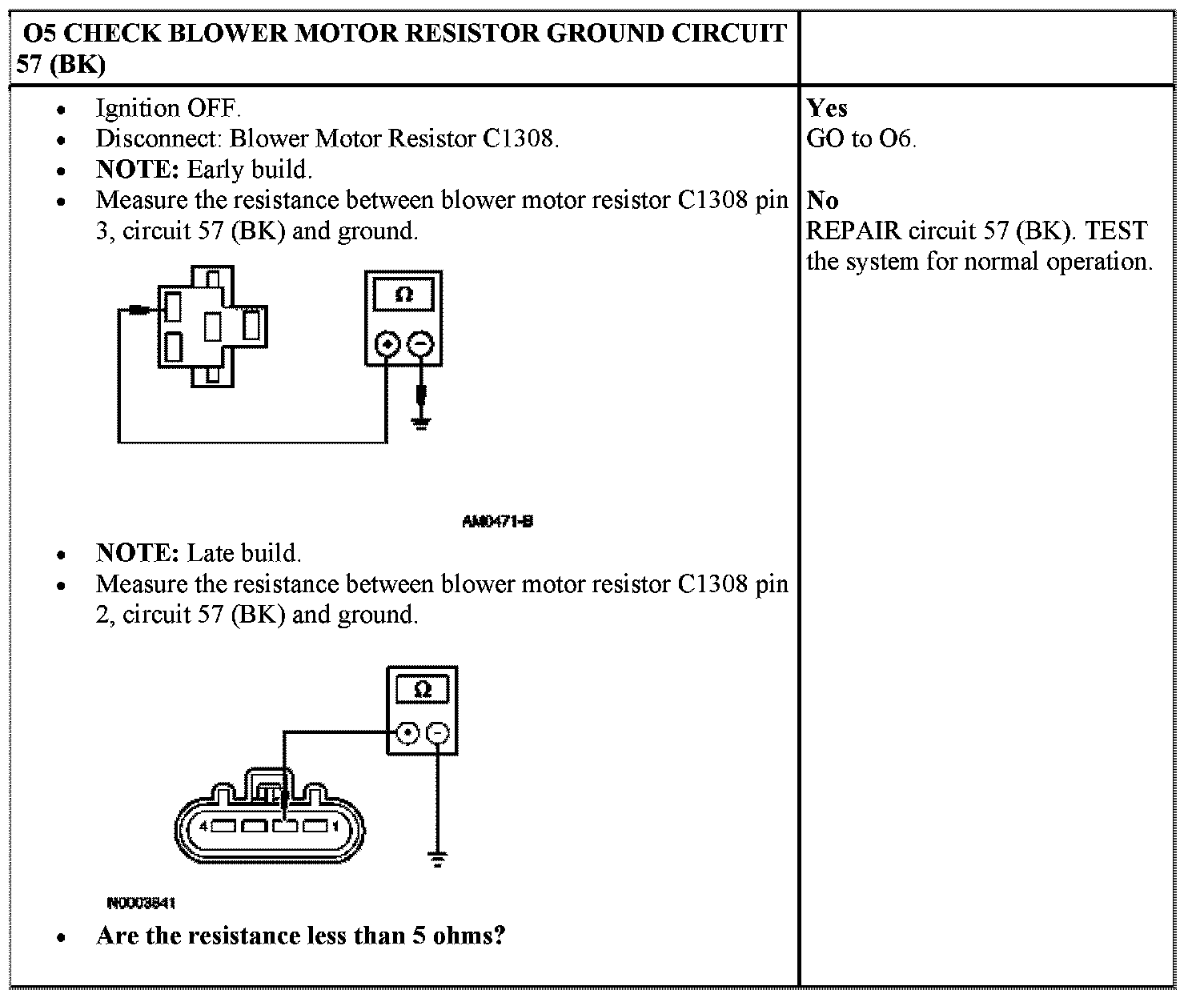

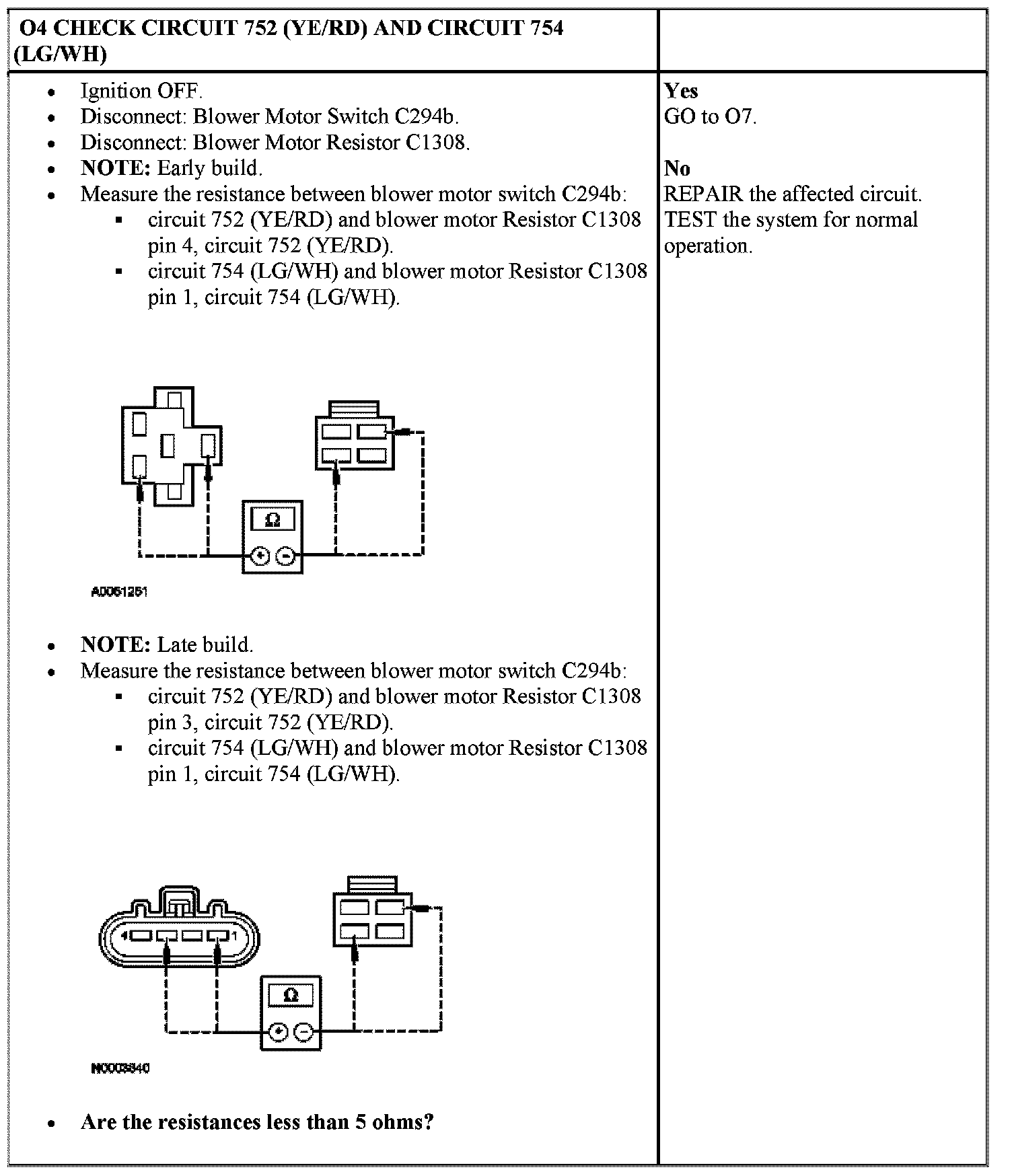

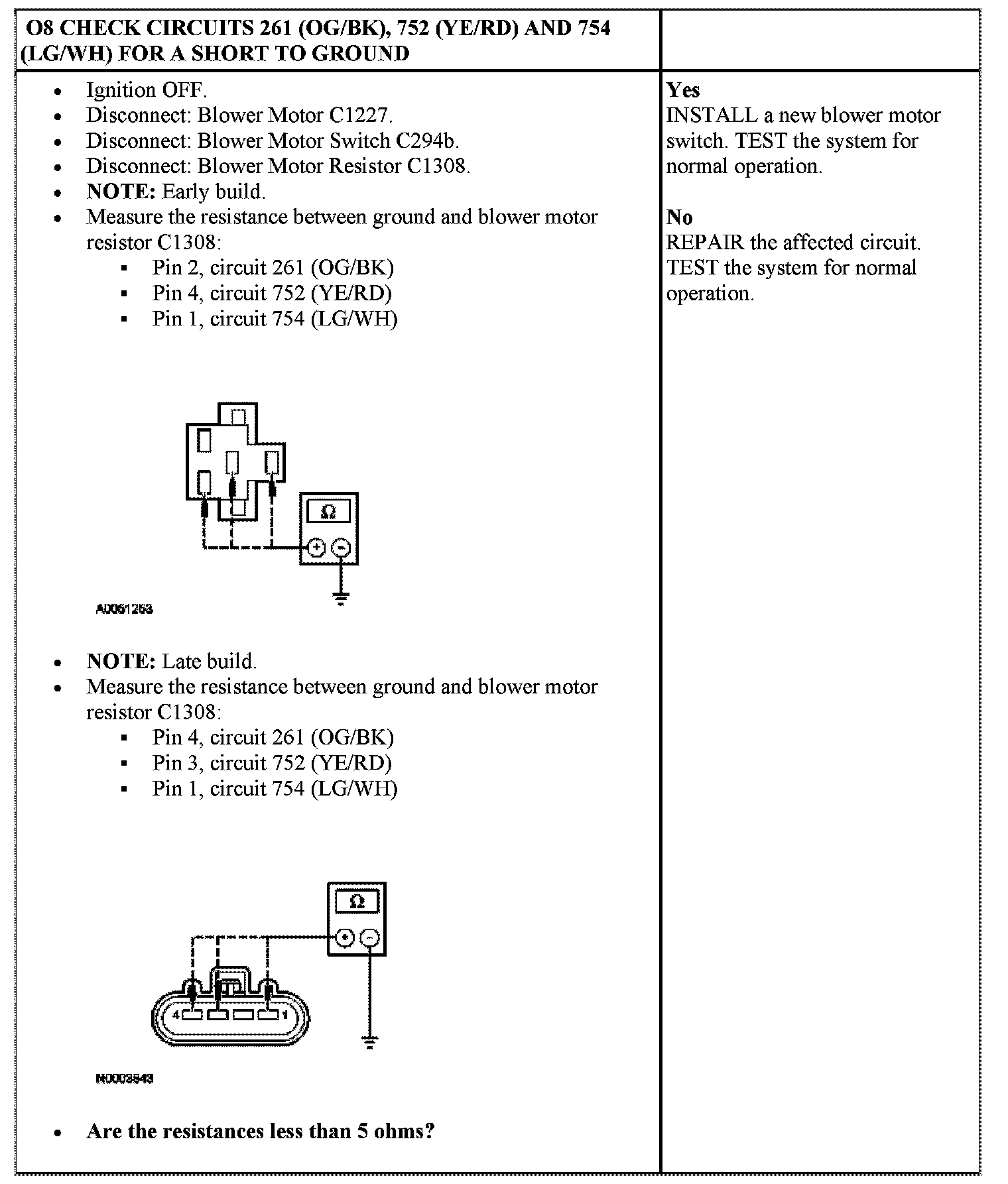

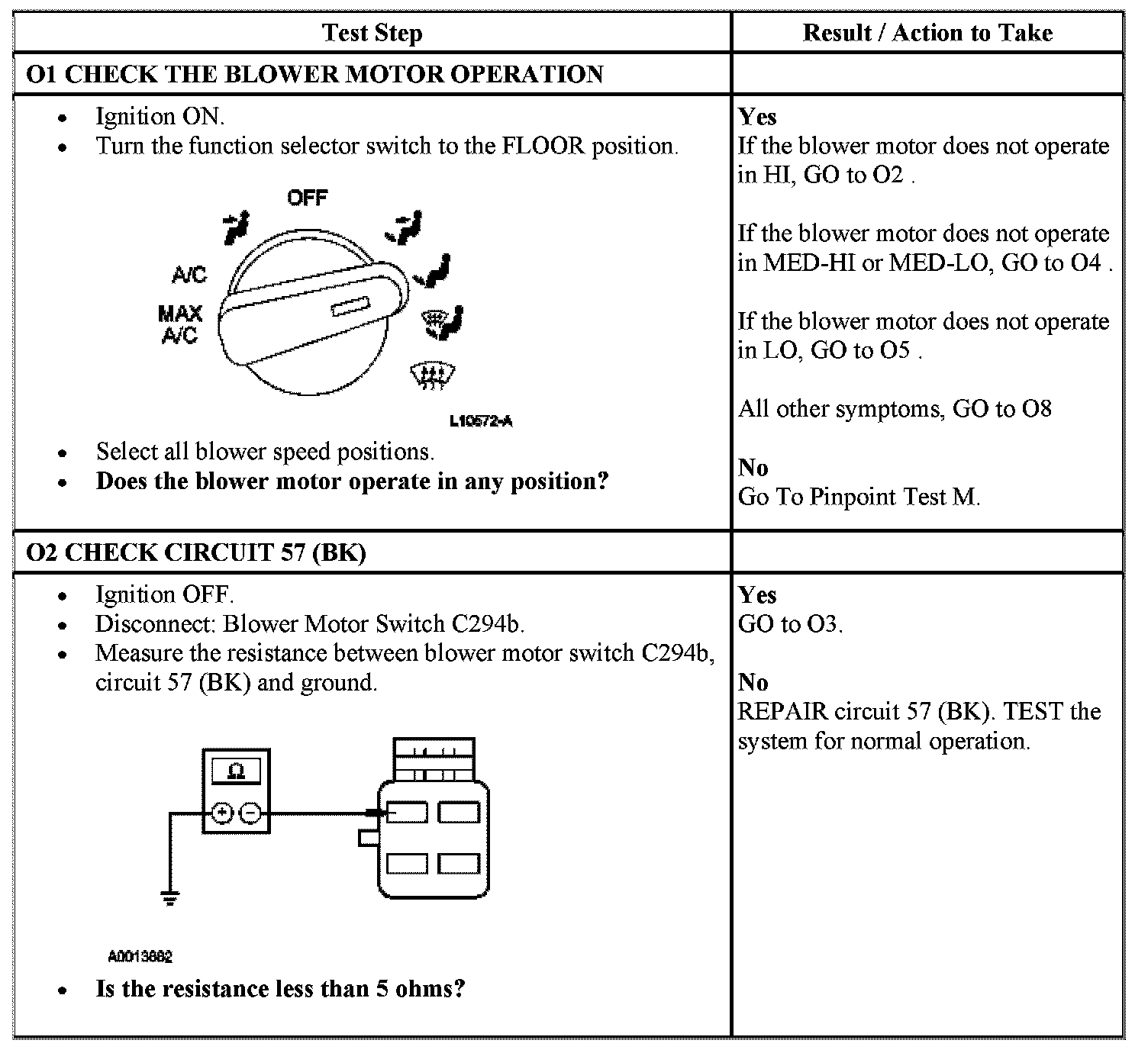

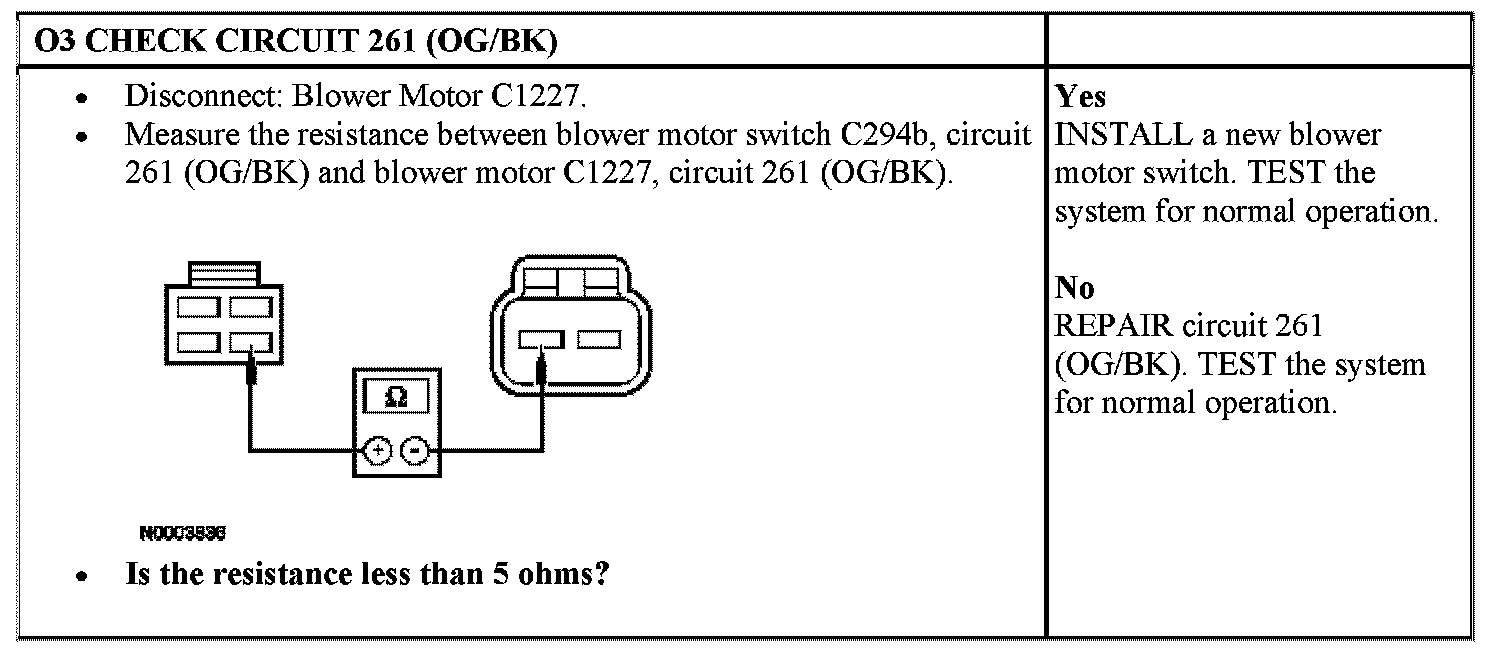

Test O: The Blower Motor Does Not Operate Correctly - Manual Climate Control

Pinpoint Test O: The Blower Motor Does Not Operatre Correctly - Manual Climate Control
