Home >> Mercury >> 2005 >> Grand Marquis V8-4.6L SOHC VIN W >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Test L: Temperature Control Is Inoperative/Does Not Operate Correctly - Manual Climate Control

Test L: Temperature Control Is Inoperative/Does Not Operate Correctly - Manual Climate Control

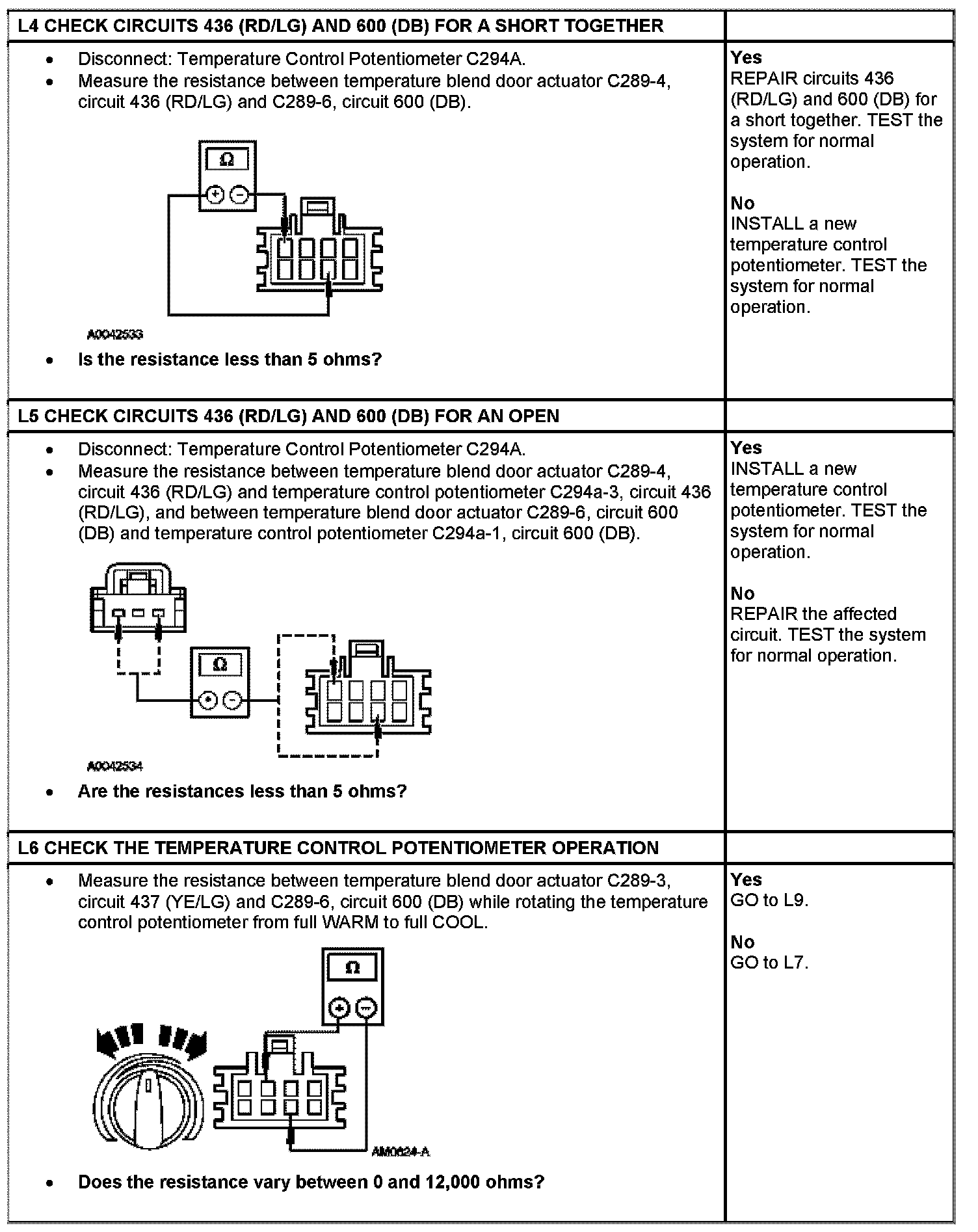

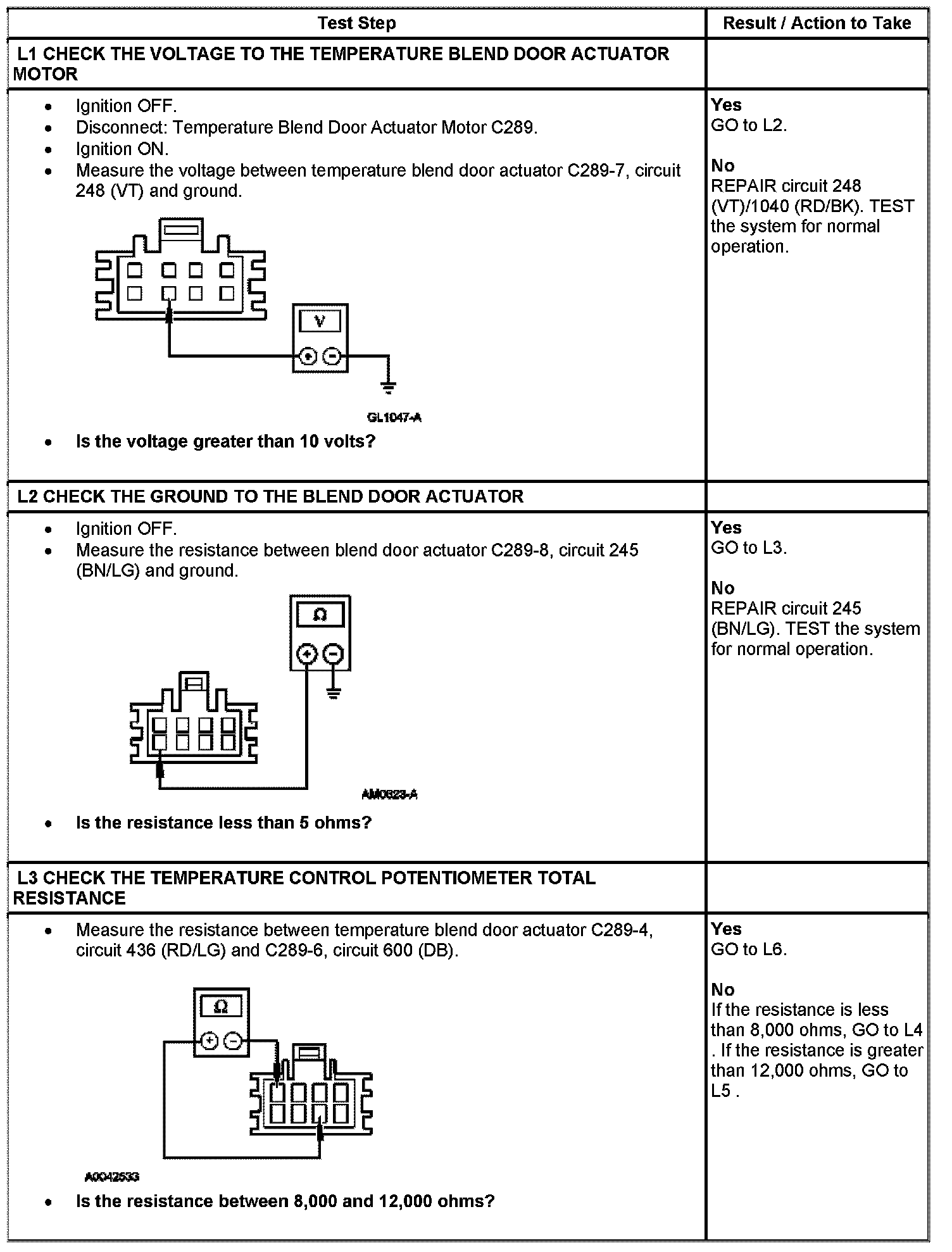

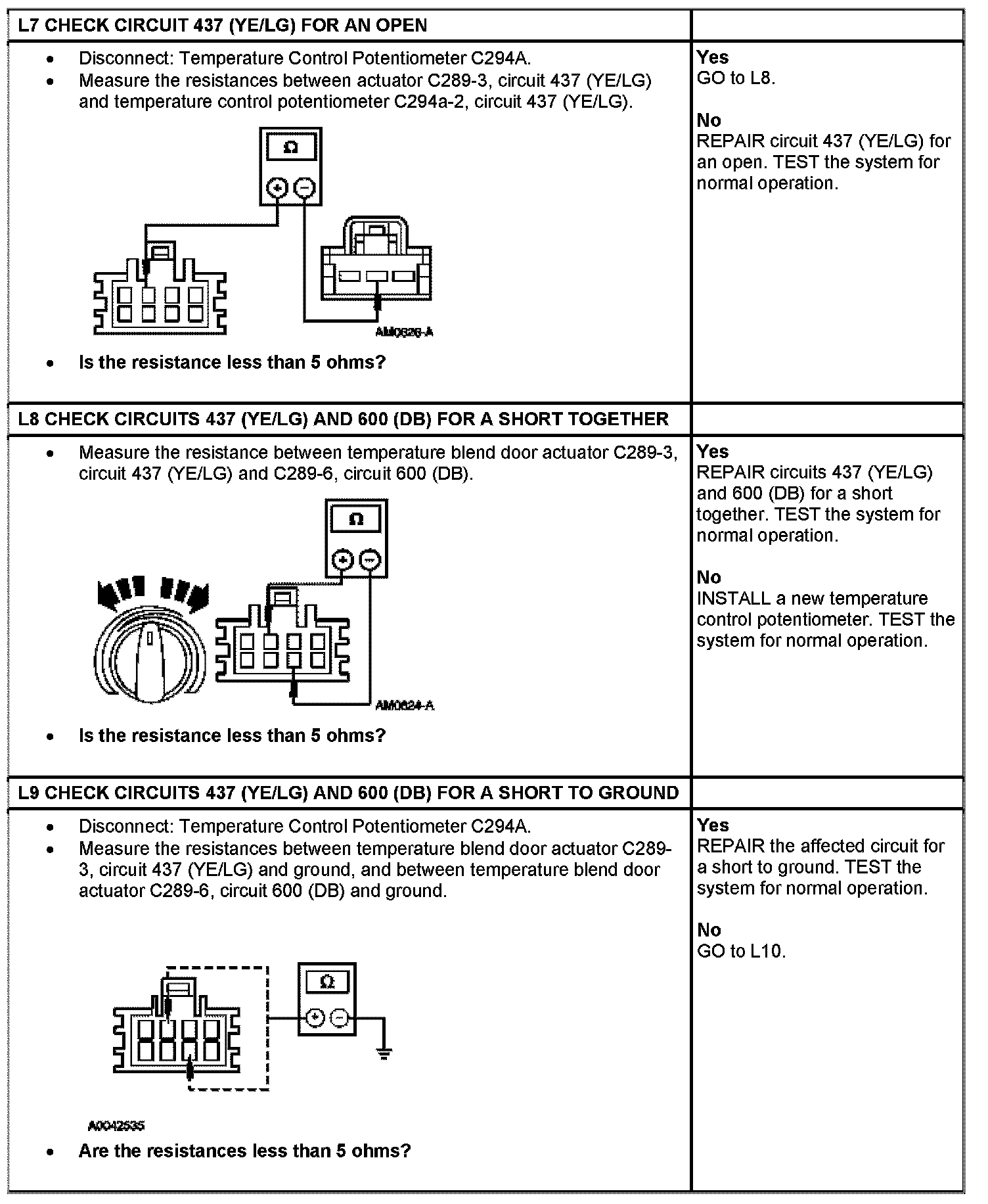

Pinpoint Test L: Temperature Control is Inoperative/Does Not Operate Correctly - Manual Climate Control
